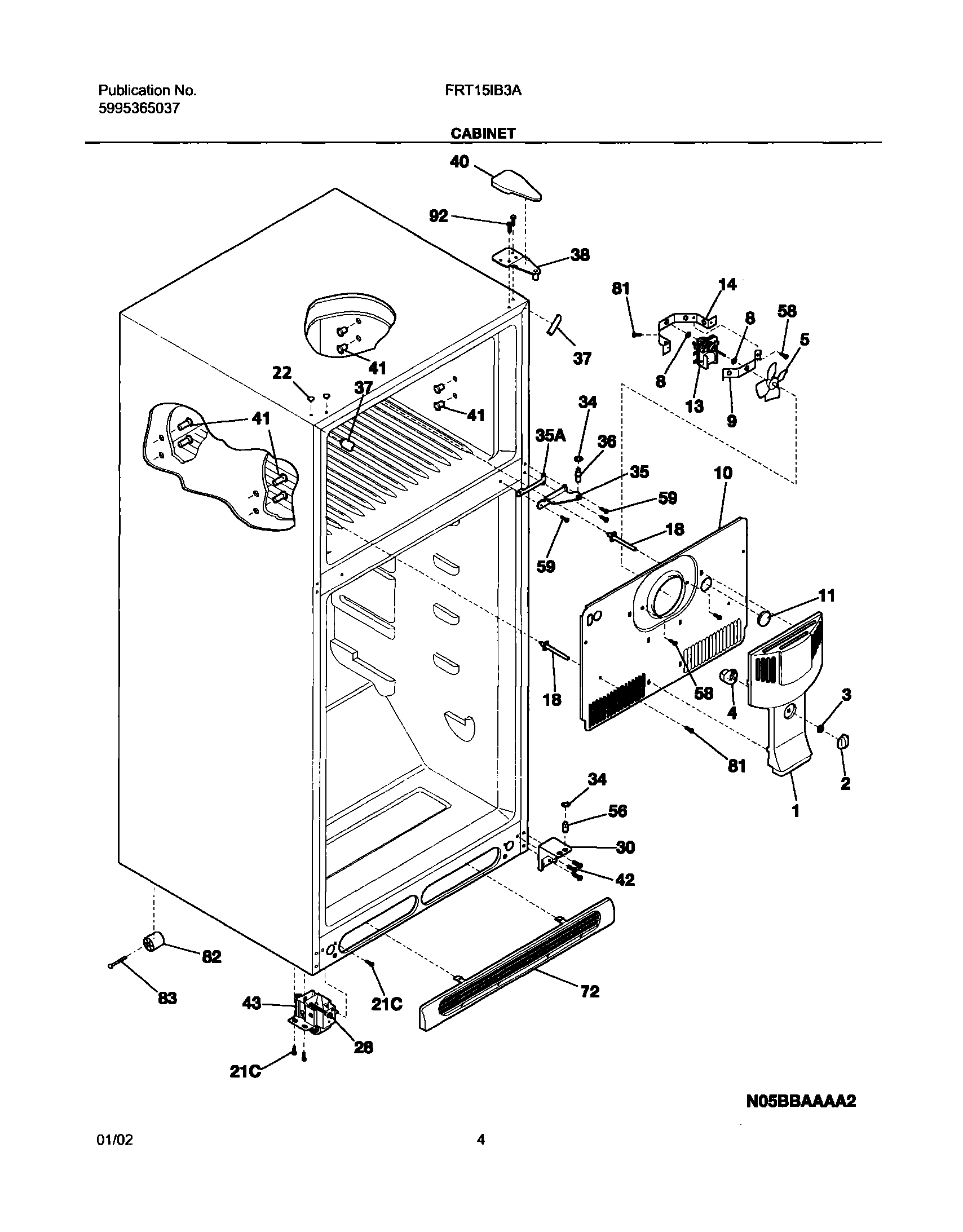

FRT15IB3AT1 05 – CABINET

Products

Position	Product
NI	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
NI	5304414035 Frigidaire Refrigerator Touch Up Paint Bisque
NI	Seal,insulation ,46.15 in. long ,foam ,coil cover
NI	Clamp-motor wiring,nylon ,w/adhesive tape
NI	WCI 240385401
1	241652301 Frigidaire 241259700 Evaporator Fan Cover
2	240367001 Frigidaire Refrigerator Air Damper Control Knob
3	Nut,push-on
4	WCI 240367401
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303292396
10	WCI 240462004
11	5303208309 Frigidaire Refrigerator Plug Hole
13	EVAP MOTOR KIT
14	240438003 Frigidaire Refrigerator Bracket & Bushing
18	WCI 240411901
21C	218252201 Frigidaire Refrigerator Screw
22	215774901 Frigidaire Refrigerator Button Plug
30	WCI 240357104
34	240311303 Frigidaire Refrigerator Hinge Nylon Washer
35	WCI 240357004
35A	240336802 Frigidaire Refrigerator Hinge Spacer
36	241708002 Frigidaire Refrigerator Center Hinge Pin
37	TRIM-CABINET CORNER
38	WCI 240356901
40	WCI 240354403
41	5304509705 Frigidaire Refrigerator Grommet
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
56	240516502 Frigidaire Refrigerator Lower Hinge Pin
58	5304455651 Frigidaire Refrigerator Screw
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
72	240368303 Frigidaire Refrigerator Kick Plate Grille
81	5304455650 Frigidaire Refrigerator Screw
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
92	241710601 Frigidaire Refrigerator Screw
