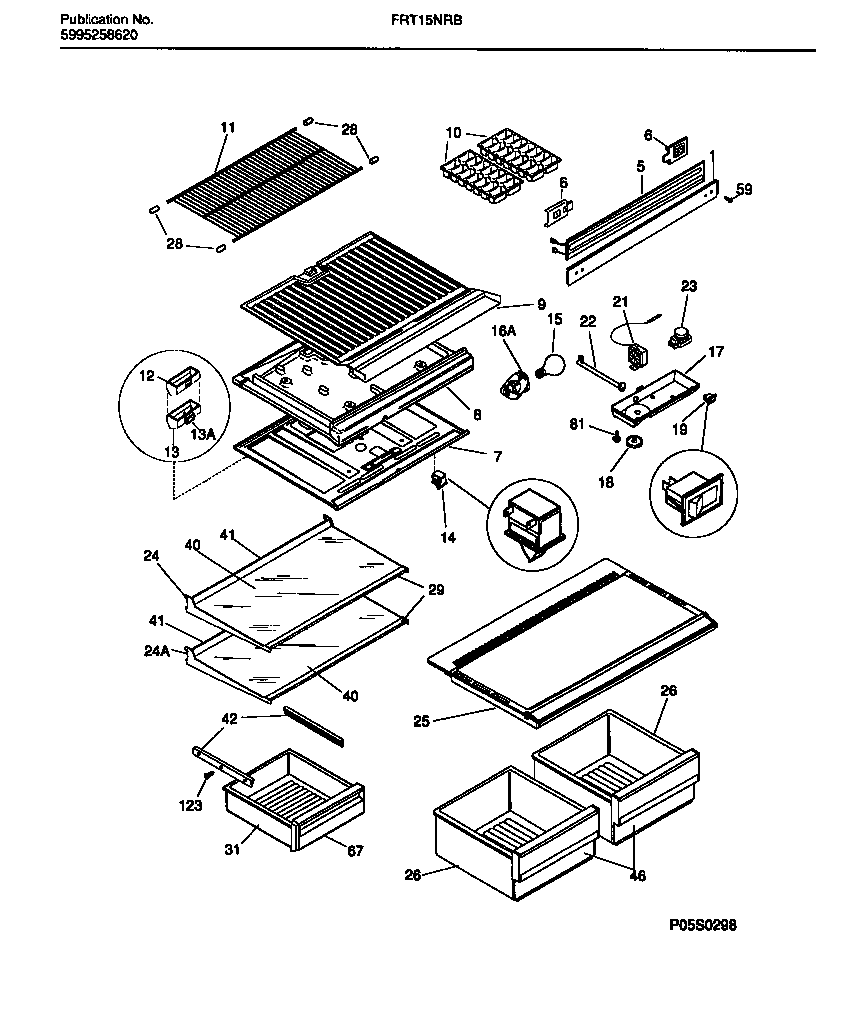

FRT15NRBW1 04 – SHELVES, CONTROLS, DIVIDER, MULLION

FRT15NRBW1 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Written by

in

FRT15NRBW1 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Products

PositionProduct
*39400CLIP-CANTILEVER SHLF
1WCI 218222101
5WCI 218271401
6WCI 218279800
7AWCI 5303001380
7WCI 3206128
8A3205266 Frigidaire Refrigerator Edge Protector
8WCI 3206131
8BHARNESS-WIRING, CONTROL/DIVIDER (NON-ILLUSTRATED)
9WCI 3206132
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303283112
12DEFLECTRO, AIR, W/SEAL
12A5303001449 Frigidaire Refrigerator Seal
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16AWCI 530800815
17WCI 5303299980
17ANUT, ANCHOR (NI)
18WCI 5303299979
19SWITCH-ENERGY SAVER, ROCKER
21AWCI 5303001260
21WCI 5303302297
22WCI 3018891
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24AWCI 215919153
24WCI 215919127
25WCI 5303283113
26PAN-CRISPER
28END CAP-SHELF,PROTECTOR
29WCI 215919401
31WCI 3206209
40WCI 5303298723
41TRIM-SHELF, 23.30“, REAR
42AWCI 5303305310
42WCI 5303305309
46WCI 215357402
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
67WCI 215359801
815304455650 Frigidaire Refrigerator Screw
123WCI 08014528
