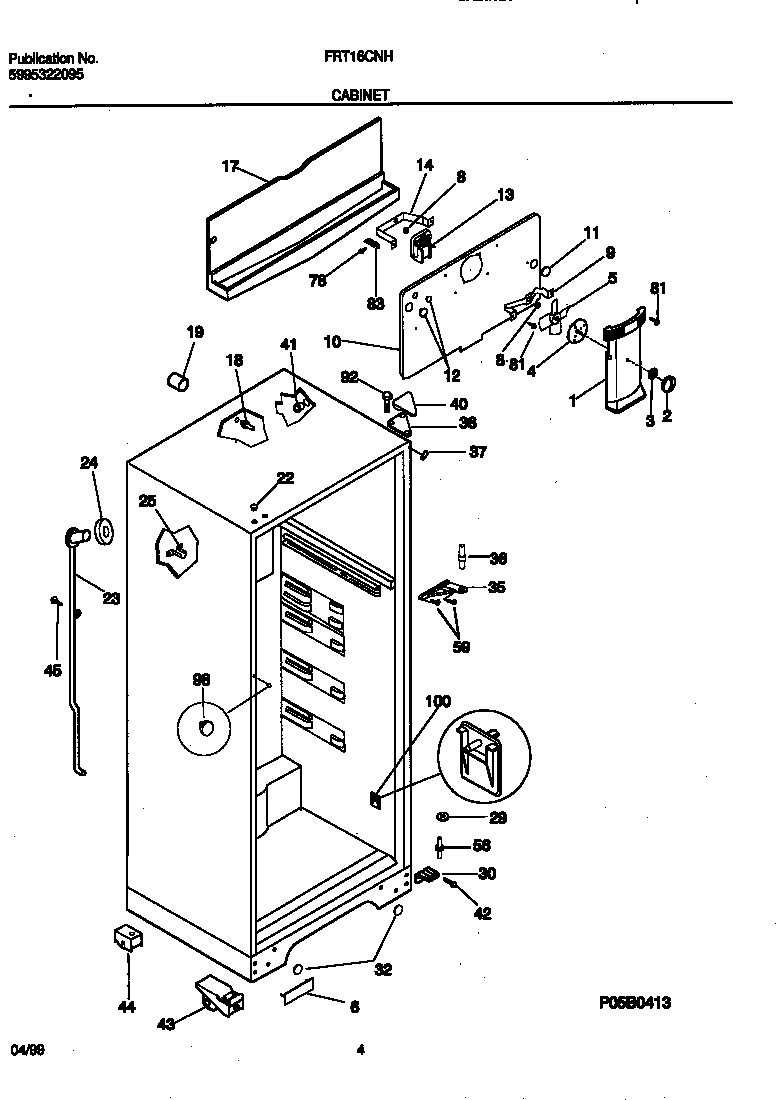

FRT16CNHD3 03 – CABINET

Products

Position	Product
*88764	WCI 218703002
*88765	BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
*88762	TAPPING PLATE, LOWER HINGE, (2) (NI)
*88767	TOUCH, UP PAINT, ALMOND (NI)
*88766	WCI 5308009790
*88761	WCI 5308011326
*88763	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*88769	PLUG, BUTTON, CABINET LINER (NI)
1	WCI 218672501
2	WCI 5303307351
3	Nut,push-on
4	WCI 218722200
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	WCI 218448302
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
10	WCI 218832002
11	5303208309 Frigidaire Refrigerator Plug Hole
12B	WCI 215079100
12A	WCI 215079000
13	5300158289 Frigidaire Evaporator Fan Motor
14	WCI 5303322992
17	WCI 218725601
18	WCI 218865000
19	TUBE-RUBBER
22	WCI 215774911
23	WCI 5303269702
24	WCI 5303207353
25	WCI 215774100
29	WCI 5308000186
30	WCI 5304409595
32	PLUG-BUTTON, ALMOND, CABINET BASE
35	WCI 218220102
36	218251300 Frigidaire Refrigerator Center Hinge Pin
37	WCI 5303321082
38	WCI 3206100
40	WCI 3206105
41	5304509705 Frigidaire Refrigerator Grommet
42	241710601 Frigidaire Refrigerator Screw
43	WCI 218724000
44	ROLLER ASSY, METAL HOUSING, REAR, (2)
45	5304455651 Frigidaire Refrigerator Screw
56	5303001321 Frigidaire Refrigerator Lower Hinge Pin
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
81	5304455650 Frigidaire Refrigerator Screw
83	WCI 5308000107
98	PLUG-BUTTON, ALMOND, CTR HINGE HOLE
100	SUPPORT-PAN COVER
