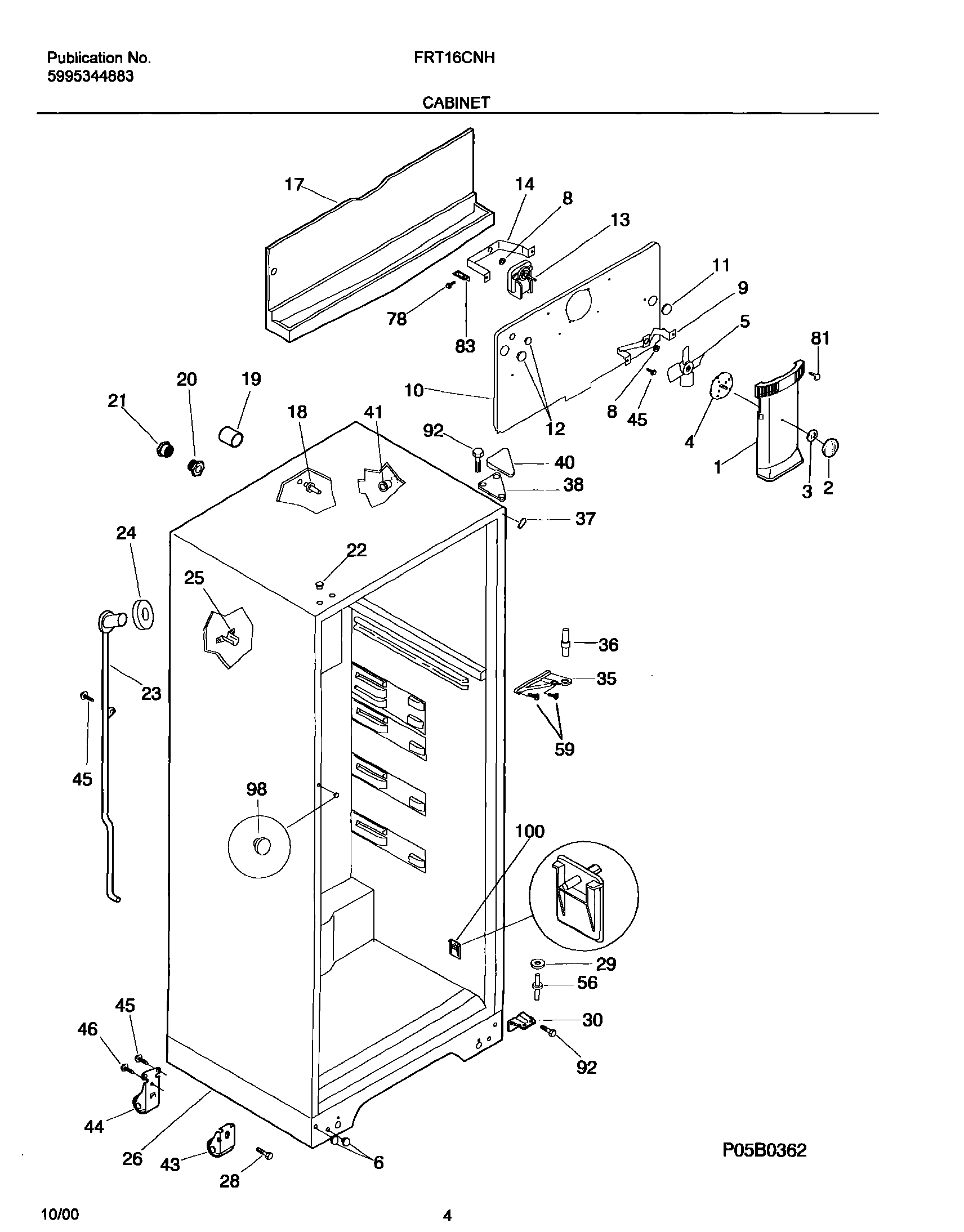

FRT16CNHD4 05 – CABINET

Products

Position	Product
NI	WCI 218905701
NI	TOUCH, UP PAINT, ALMOND (NI)
NI	PLUG, BUTTON, CABINET LINER (NI)
1	WCI 218672501
2	WCI 5303307351
3	Nut,push-on
4	WCI 218722200
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	PLUG-BUTTON, ALMOND, UPR HINGE HOLES
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
10	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
10	WCI 218829701
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 215079100
12	WCI 215079000
13	5300158289 Frigidaire Evaporator Fan Motor
14	WCI 5303322992
17	WCI 218725602
18	SUPPORT – EVAP COVER, (2)
19	TUBE-RUBBER
20	WCI 5303001286
21	WCI 5303001287
22	WCI 215774911
23	WCI 5303210377
24	WCI 5303207353
25	WCI 215774100
26	WCI 218605002
28	BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
29	WCI 218666700
29	WASHER,NYLON ,0.245 ID W/NIBS
30	WCI 218605200
30	WCI 218220203
30	WCI 218605300
35	WCI 218998902
36	218251300 Frigidaire Refrigerator Center Hinge Pin
37	WCI 5303321082
38	WCI 3206100
40	WCI 3206105
41	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
41	5304509705 Frigidaire Refrigerator Grommet
43	WCI 5308011326
43	WCI 5308009790
43	WCI 218703001
44	WCI 218713600
45	5304455651 Frigidaire Refrigerator Screw
45	SCREW,HEX HD SER WSHR ,8-18 X 0.375
46	BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
56	5303001321 Frigidaire Refrigerator Lower Hinge Pin
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
81	5304455650 Frigidaire Refrigerator Screw
83	WCI 5308000107
92	241710601 Frigidaire Refrigerator Screw
98	PLUG-BUTTON, ALMOND, CTR HINGE HOLE
100	SUPPORT-PAN COVER
