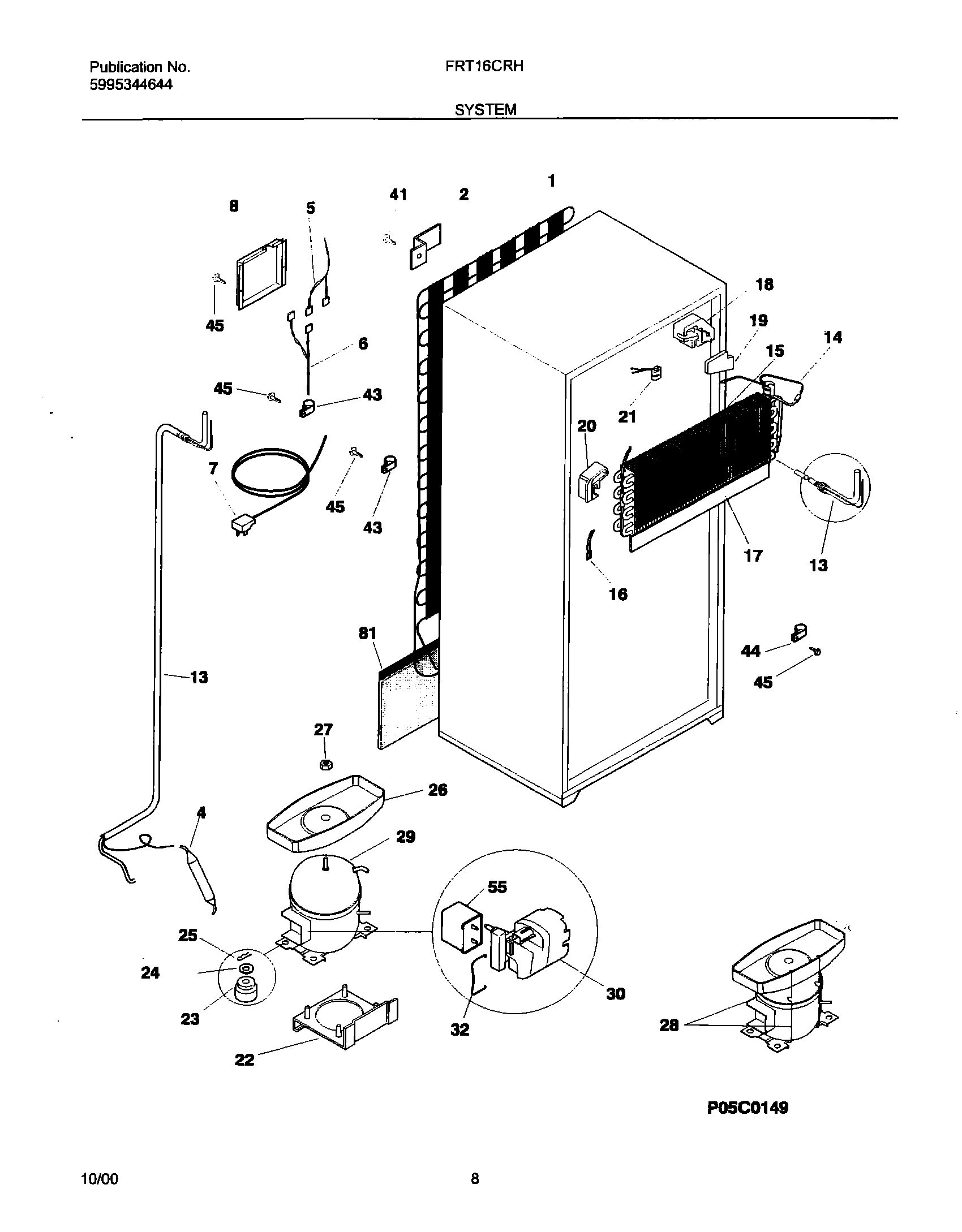

FRT16CRHW4 09 – SYSTEM

Products

Position	Product
NI	SPACER-COND TUBE,BLACK
NI	HOT TUBE REPAIR KIT-SERVICE
NI	WCI 5304406721
1	WCI 218491000
2	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
2	BRACKET, MOUNTIN, CONDENSER, (4)
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	HARNESS-WIRING,CONTROL/DIVIDER
6	WCI 215257001
7	218843801 Frigidaire Refrigerator Screw
7	CORD-ELECTRIC POWER
8	WCI 5303001197
13	WCI 215076403
14	WCI 5308009754
15	WCI 218818701
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	INSULATOR-EVAP, PLASTIC
18	WCI 218821301
19	INSULATION PLUG, RH
20	WCI 218821201
21	297216600 Frigidaire Refrigerator Defrost Thermostat
22	WCI 5308013663
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
24	WASHER-COMPR MTG
25	CLIP – COMPRESSOR MTG
26	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
26	WCI 215372500
27	Nut,lock `1/4-20 ,drain pan mtg
28	PAN RETAINER KIT, SERVICE
29	5304478809 Frigidaire Refrigerator Compressor Assembly
30	WCI 218721108
32	218973501 Frigidaire Refrigerator Clamp
41	5308000039 Frigidaire Refrigerator Screw
41	WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
43	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
44	5308000133 Frigidaire Refrigerator Clamp
45	SCREW,HEX HD SER WSHR ,8-18 X 0.375
45	5304455651 Frigidaire Refrigerator Screw
55	5304464438 Frigidaire Compressor Run Capacitor
81	WCI 218905701
