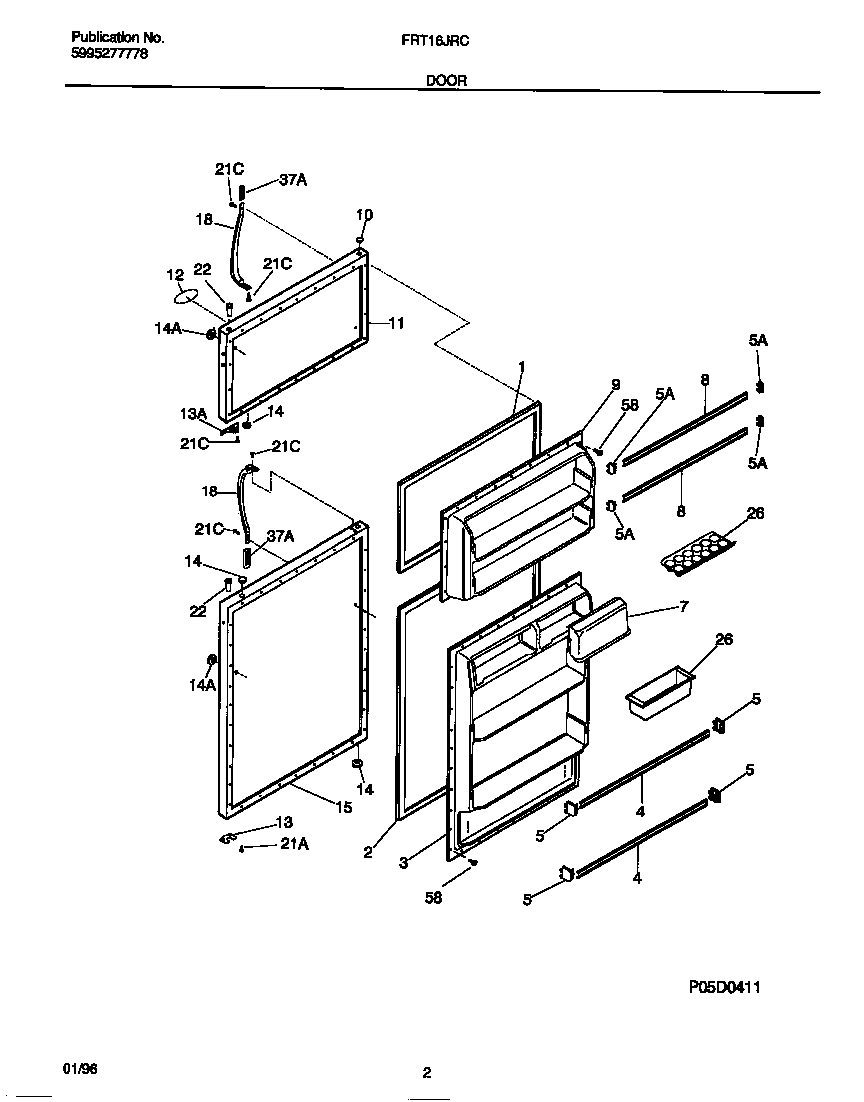

FRT16JRCW1 02 – DOOR

FRT16JRCW1 02 – DOOR

Written by

in

FRT16JRCW1 02 – DOOR

Products

PositionProduct
*86240INSULATION
1GASKET-FRZR DOOR, WHITE, MAGNETIC
2218730603 Frigidaire Door Gasket
3WCI 218359001
4215516220 Frigidaire Refrigerator Door Rack
5218758602 Frigidaire Refrigerator Door Rack Support
5WCI 215251401
7WCI 218287904
9WCI 218358801
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917598
12WCI 218364001
12LABEL-NAMEPLATE,WHITE
12MAGNET-NAMEPLATE (NOT ILLUSTRATED)
13DOOR STOP, REFR SECTION
13WCI 218249001
14240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917596
18WCI 218363401
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21218252201 Frigidaire Refrigerator Screw
22BEARING-HINGE
26B215817806 Frigidaire Refrigerator Egg Tray
26AWCI 3204522
37WCI 215870607
585304455651 Frigidaire Refrigerator Screw
