FRT16JRCW2 02 – DOOR

FRT16JRCW2 02 – DOOR

Written by

in

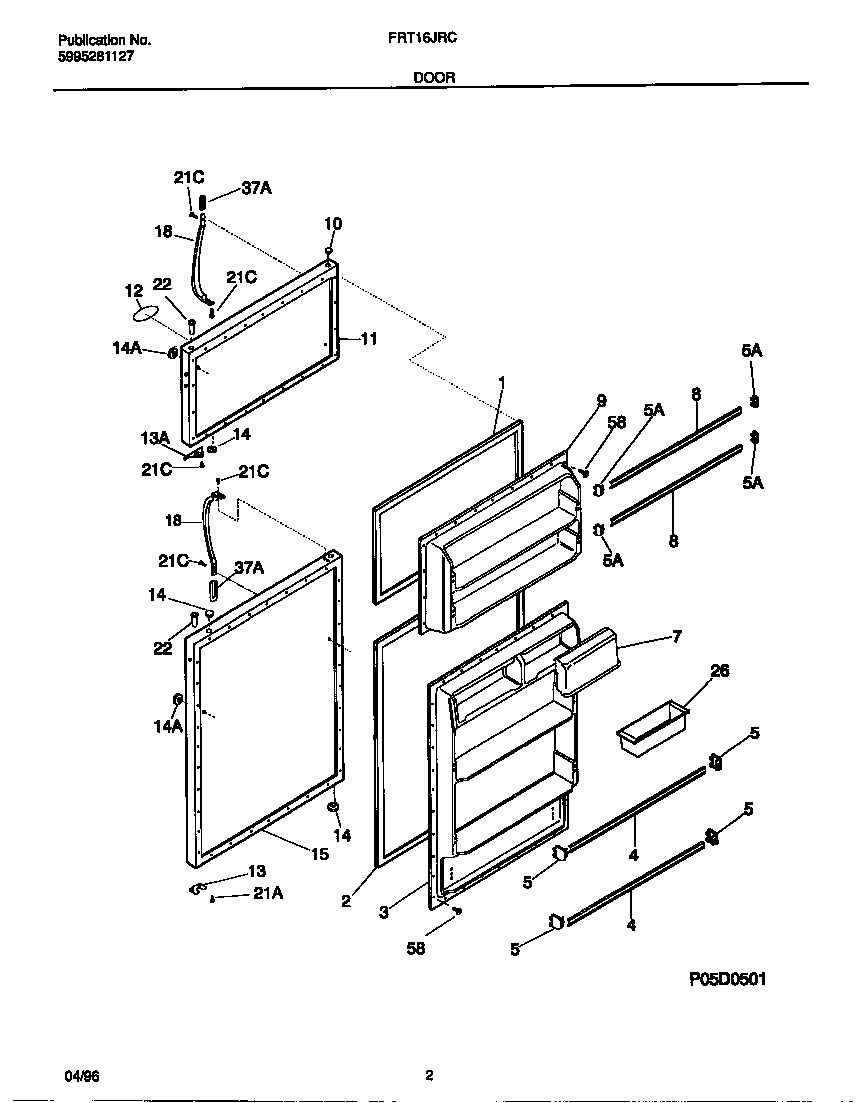

FRT16JRCW2 02 – DOOR

Products

PositionProduct
*72000INSULATION
1GASKET-FRZR DOOR, MAGNETIC, WHITE
2218730603 Frigidaire Door Gasket
3WCI 218359001
4215516220 Frigidaire Refrigerator Door Rack
5218758602 Frigidaire Refrigerator Door Rack Support
5WCI 215251401
7WCI 218287904
9WCI 218358801
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917598
12LABEL-NAMEPLATE,WHITE
12WCI 218364001
12MAGNET-NAMEPLATE (NOT ILLUSTRATED)
13WCI 218249001
13DOOR STOP, REFR SECTION
14240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917596
18WCI 218363401
21218252201 Frigidaire Refrigerator Screw
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
22BEARING-HINGE
26WCI 3204522
37WCI 215870607
58216858001 Frigidaire Refrigerator Screw
