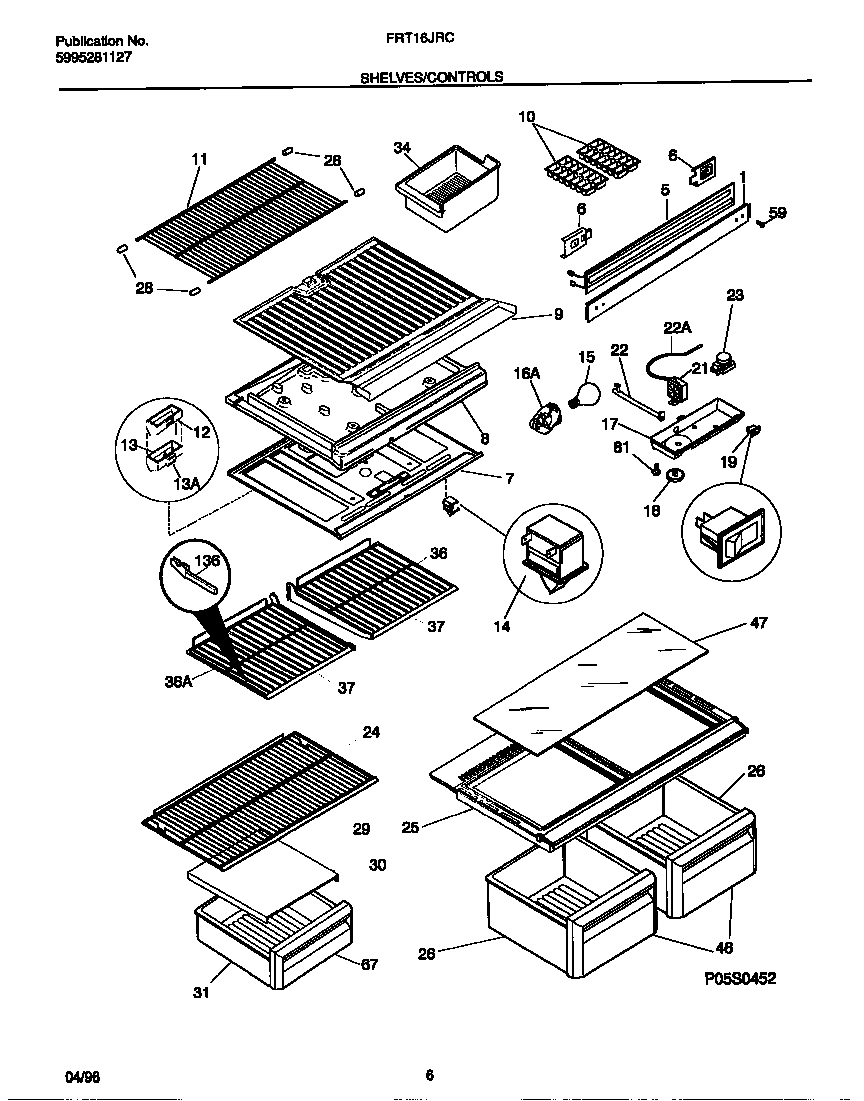

FRT16JRCW2 04 – SHELVES/CONTROLS

FRT16JRCW2 04 – SHELVES/CONTROLS

Written by

in

FRT16JRCW2 04 – SHELVES/CONTROLS

Products

PositionProduct
1WCI 218252501
5WCI 218271401
6WCI 218279800
7AWCI 3206185
7BWCI 5303001380
8AWCI 3206186
8C3205266 Frigidaire Refrigerator Edge Protector
8BWCI 3018900
9WCI 3206187
10215667501 Frigidaire Refrigerator Ice Tray Primary
11ASHELF-FREEZER, FIXED/FLAT, FULL WIDTH, WIRE
11BSPACER, FRZR SHELF (NOT ILLUSTRATED)
12B5303001449 Frigidaire Refrigerator Seal
12ADEFLECTRO, AIR, W/SEAL
13EXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17BNUT, ANCHOR (NI)
17AWCI 5303307349
18WCI 5303311079
19SWITCH-ENERGY SAVER, ROCKER
21BWCI 5303001260
21AWCI 5303305486
22TUBE
22WCI 3018891
23B5304455649 Frigidaire Refrigerator Screw
23A215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI 218272501
25WCI 218314102
26PAN – CRISPER
28END CAP-SHELF,PROTECTOR
29WCI 218366106
30WCI 5303285319
31WCI 3206209
345303212918 Frigidaire Refrigerator Cont
36SHELF, HALF-CANTILEVER, HALF WIDTH, WIRE, RH, RAIL ON LS
36SHELF, HALF-CANTILEVER, HALF WIDTH, WIRE, LH, RAIL ON RS
37WCI 218366120
46WCI 215357404
47WCI 218390576
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
67WCI 215359803
815304455650 Frigidaire Refrigerator Screw
136WCI 218553900
