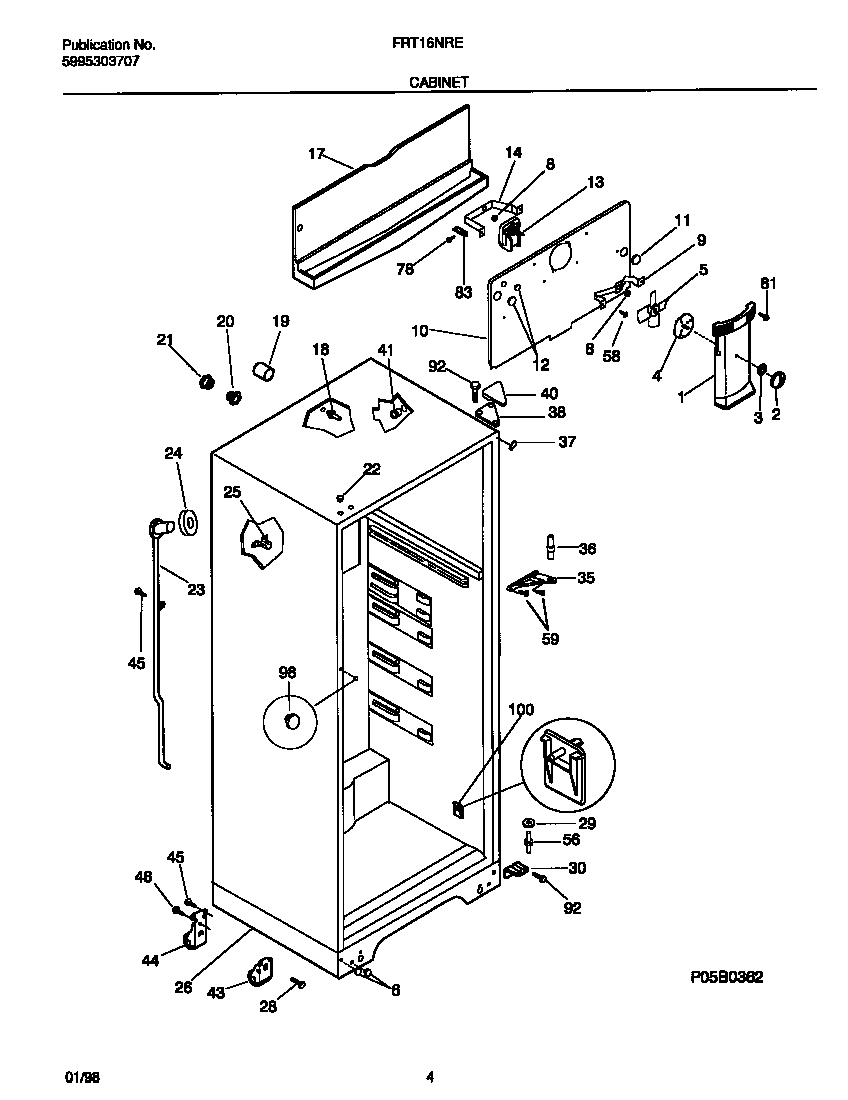

FRT16NREW6 03 – CABINET

FRT16NREW6 03 – CABINET

Written by

in

FRT16NREW6 03 – CABINET

Products

PositionProduct
*694485304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*69446WCI 218605300
*69445WCI 218605200
*69447TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
*69449PLUG, BUTTON, CABINET LINER (NI)
*69450COVER-SOUND INSUL,PRESSBOARD/FOAM ,MACHINE COMPT
*694525303321319 Frigidaire Refrigerator White Touch Up Paint
*694445304455650 Frigidaire Refrigerator Screw
1WCI 218672501
2WCI 5303307351
3Nut,push-on
4WCI 218722200
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6PLUG-BUTTON, WHITE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10WCI 218829701
115303208309 Frigidaire Refrigerator Plug Hole
12AWCI 215079000
12BWCI 215079100
135300158289 Frigidaire Evaporator Fan Motor
14WCI 5303322992
17WCI 218725602
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22215774901 Frigidaire Refrigerator Button Plug
23WCI 5303210377
24WCI 5303207353
25WCI 215774100
26WCI 218605001
28BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
29BWCI 5308011326
29AWCI 218666700
30WCI 218220200
35BRACKET-CTR HINGE, LIGHT GREY
36218251300 Frigidaire Refrigerator Center Hinge Pin
37WCI 5303321081
38WCI 3206100
40WCI 3206101
415304509705 Frigidaire Refrigerator Grommet
43WCI 218703001
44WCI 218713600
45A5304455651 Frigidaire Refrigerator Screw
45BSCREW,HEX HD SER WSHR ,8-18 X 0.375
46BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
83WCI 5308000107
92241710601 Frigidaire Refrigerator Screw
98215099701 Frigidaire Refrigerator Button Plug
100SUPPORT-PAN COVER
