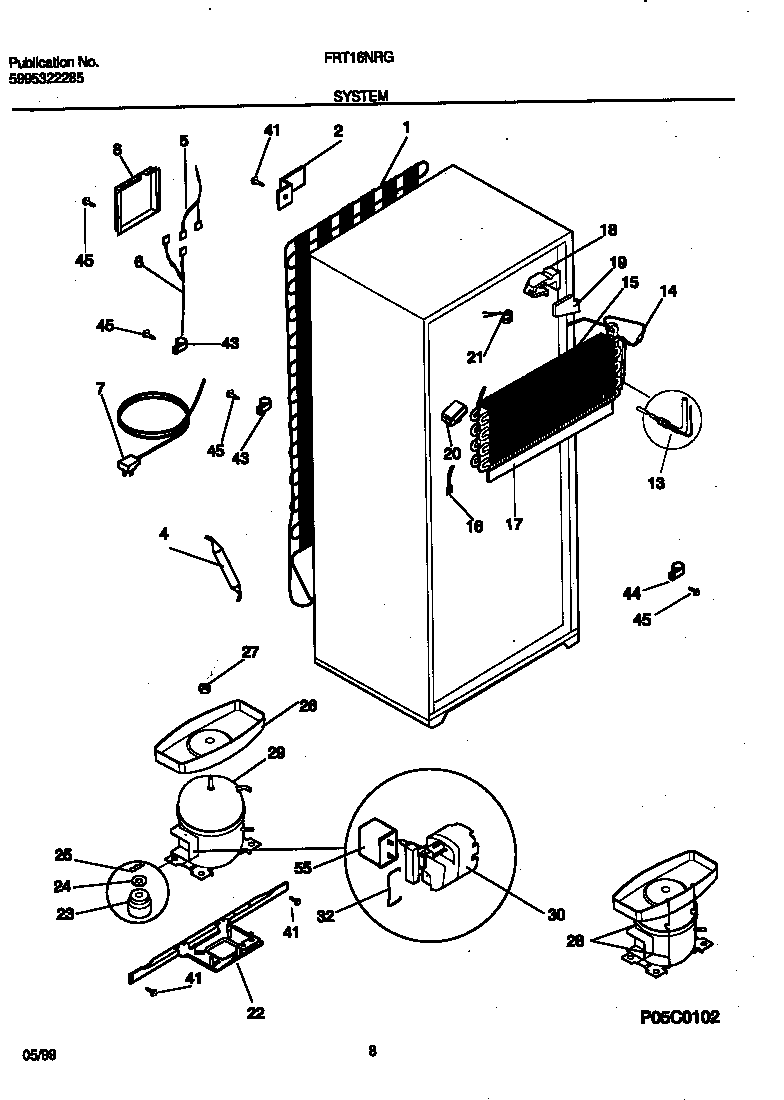

FRT16NRGD5 05 – SYSTEM

FRT16NRGD5 05 – SYSTEM

Written by

in

FRT16NRGD5 05 – SYSTEM

Products

PositionProduct
*35062WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*350635303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
*350645308000133 Frigidaire Refrigerator Clamp
*35066WCI 3916557
*350655304455852 Frigidaire Refrigerator Screw
*35061SPACER-COND TUBE,BLACK
1WCI 218491000
2BRACKET, MOUNTIN, CONDENSER, (4)
45303305677 Frigidaire Replacement Filter Dryer Filters
5HARNESS-WIRING,CONTROL/DIVIDER
6WCI 215257004
7CORD-ELECTRIC POWER
8WCI 5303001197
13WCI 218429305
14WCI 5308009754
15WCI 5303917951
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17INSULATOR-EVAP, PLASTIC
18INSULATION BLOCK, RH
19INSULATION PLUG, RH
20INSULATION BLOCK, LH
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 218802500
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24WASHER-COMPR MTG
25CLIP – COMPRESSOR MTG
26WCI 215372500
27Nut,lock `1/4-20 ,drain pan mtg
28PAN RETAINER KIT, SERVICE
295304511983 Frigidaire Refrigerator Compressor Assembly Kit
32218740800 Frigidaire Refrigerator Clamp
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
45B5304455651 Frigidaire Refrigerator Screw
45A218843801 Frigidaire Refrigerator Screw
555304464438 Frigidaire Compressor Run Capacitor
