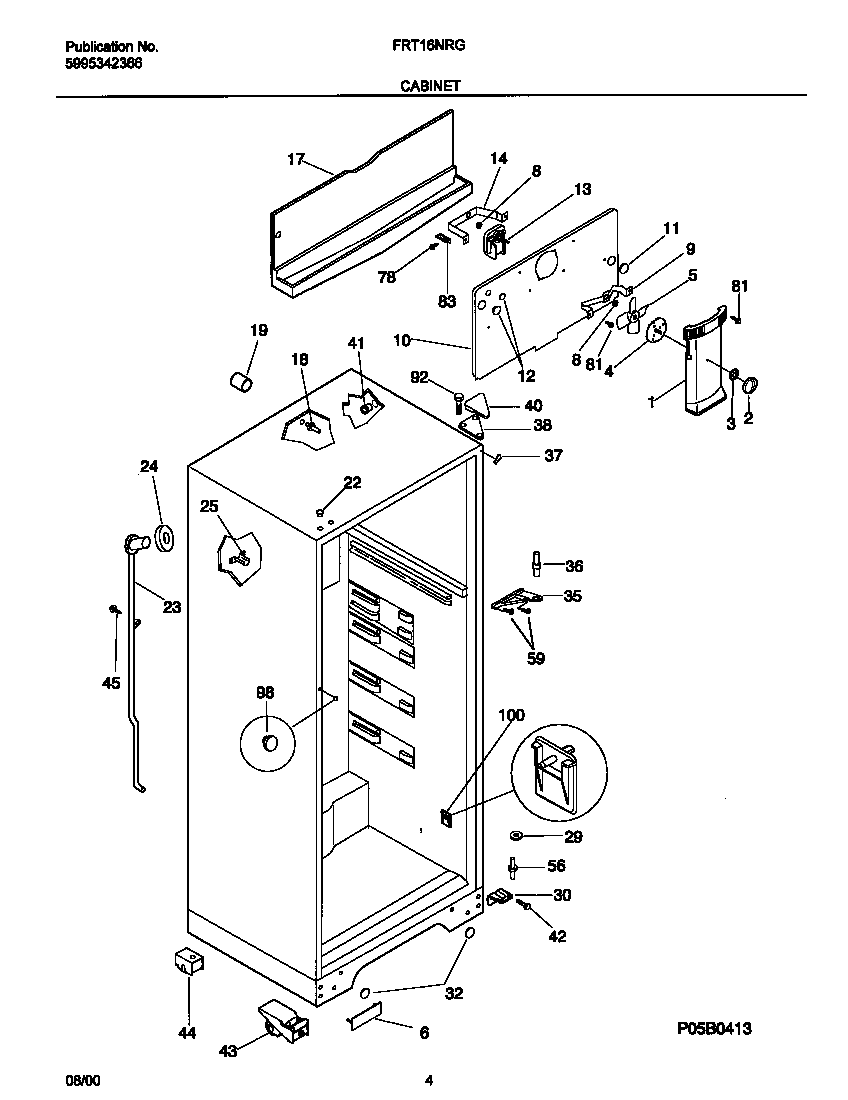

FRT16NRGY9 03 – CABINET

Products

Position	Product
*80086	Clamp-motor wiring,nylon ,w/adhesive tape
*80093	TOUCH, UP PAINT, ALMOND (NI)
*80090	WCI 5308000186
*80092	WCI 5308009790
*80095	PLUG, BUTTON, CABINET LINER (NI)
*80091	BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
*80087	TAPPING PLATE, LOWER HINGE, (2) (NI)
*80088	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*80089	WCI 218703002
1	WCI 218672501
2	WCI 5303307351
3	Nut,push-on
4	WCI 218722200
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	WCI 218448302
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
10	WCI 218988902
11	5303208309 Frigidaire Refrigerator Plug Hole
12B	WCI 215079100
12A	WCI 215079000
13	5300158289 Frigidaire Evaporator Fan Motor
14	WCI 5303322992
17	WCI 218725602
18	SUPPORT – EVAP COVER, (2)
19	TUBE-RUBBER
22	WCI 215774911
23	WCI 5303269702
24	WCI 5303207353
25	WCI 215774100
29B	WCI 5308011326
29A	WASHER, .34 X .62 X .05, NYLON
30	WCI 5303917777
32	PLUG-BUTTON, ALMOND, CABINET BASE
35	WCI 218220102
36	218251300 Frigidaire Refrigerator Center Hinge Pin
37	WCI 5303321082
38	WCI 3206100
40	WCI 3206105
41	5304509705 Frigidaire Refrigerator Grommet
42	241710601 Frigidaire Refrigerator Screw
43	WCI 218724000
44	ROLLER ASSY, METAL HOUSING, REAR, (2)
45	5304455651 Frigidaire Refrigerator Screw
56	5303001321 Frigidaire Refrigerator Lower Hinge Pin
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
78	5308000039 Frigidaire Refrigerator Screw
81	5304455650 Frigidaire Refrigerator Screw
83	WCI 5308000107
98	PLUG-BUTTON, ALMOND, CTR HINGE HOLE
100	SUPPORT-PAN COVER
