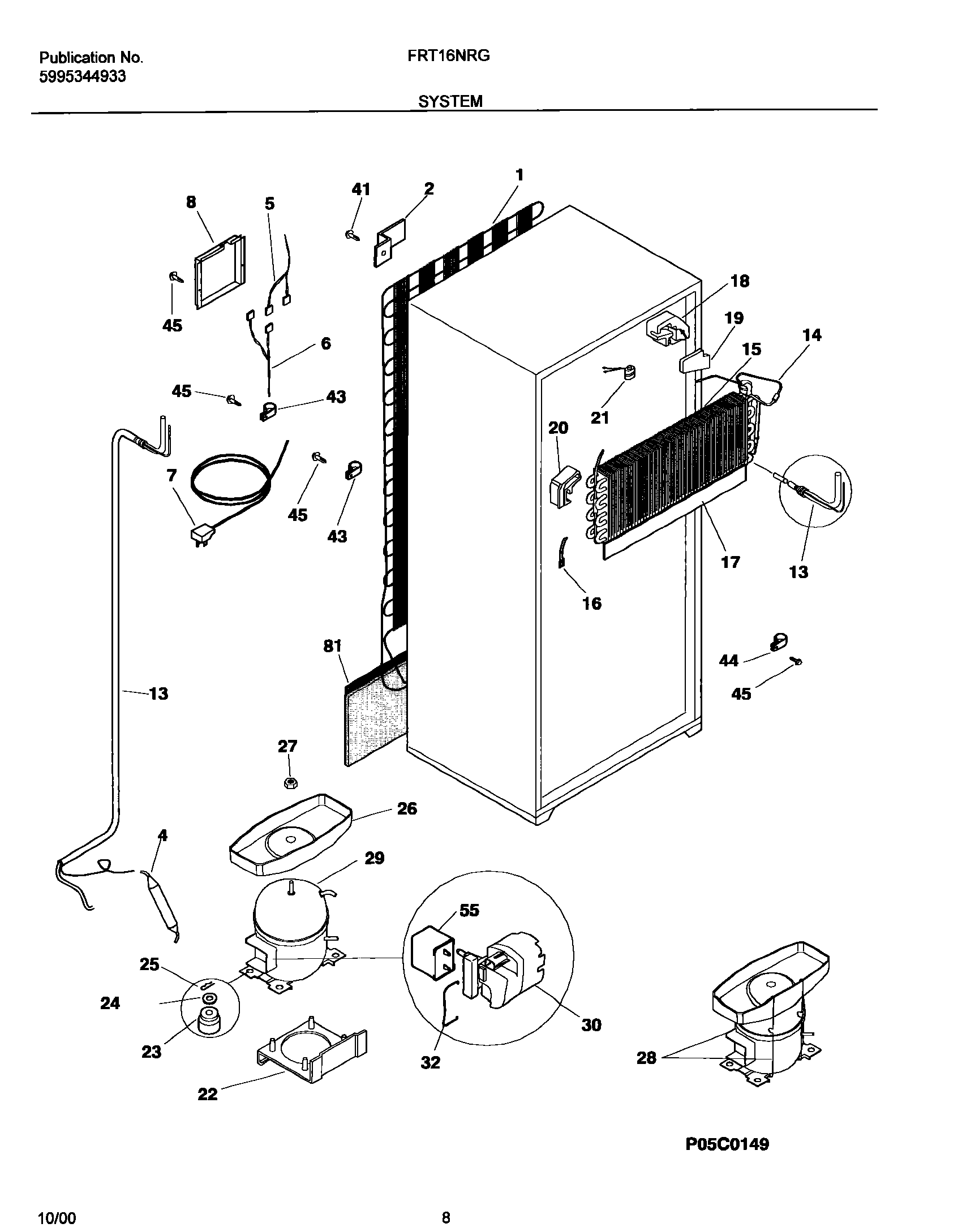

FRT16NRGZ8 09 – SYSTEM

Products

Position	Product
NI	WCI 5304418654
NI	HOT TUBE REPAIR KIT-SERVICE
1	SPACER-COND TUBE,BLACK
1	WCI 5304406721
1	WCI 218491000
2	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
2	BRACKET, MOUNTIN, CONDENSER, (4)
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	HARNESS-WIRING,CONTROL/DIVIDER
6	WCI 215257001
7	CORD-ELECTRIC POWER
7	218843801 Frigidaire Refrigerator Screw
8	WCI 5303001197
13	WCI 215076403
14	WCI 5308009754
15	WCI 218818701
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	INSULATOR-EVAP, PLASTIC
18	WCI 218821301
19	INSULATION PLUG, RH
20	WCI 218821201
21	297216600 Frigidaire Refrigerator Defrost Thermostat
22	WCI 5308013663
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
24	WASHER-COMPR MTG
25	CLIP – COMPRESSOR MTG
26	WCI 215372500
26	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
27	Nut,lock `1/4-20 ,drain pan mtg
28	PAN RETAINER KIT, SERVICE
29	5304478809 Frigidaire Refrigerator Compressor Assembly
30	WCI 218721108
32	218973501 Frigidaire Refrigerator Clamp
41	WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
41	5308000039 Frigidaire Refrigerator Screw
43	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
44	5308000133 Frigidaire Refrigerator Clamp
45	5304455651 Frigidaire Refrigerator Screw
45	SCREW,HEX HD SER WSHR ,8-18 X 0.375
45	5304455852 Frigidaire Refrigerator Screw
55	5304464438 Frigidaire Compressor Run Capacitor
81	WCI 218905701
