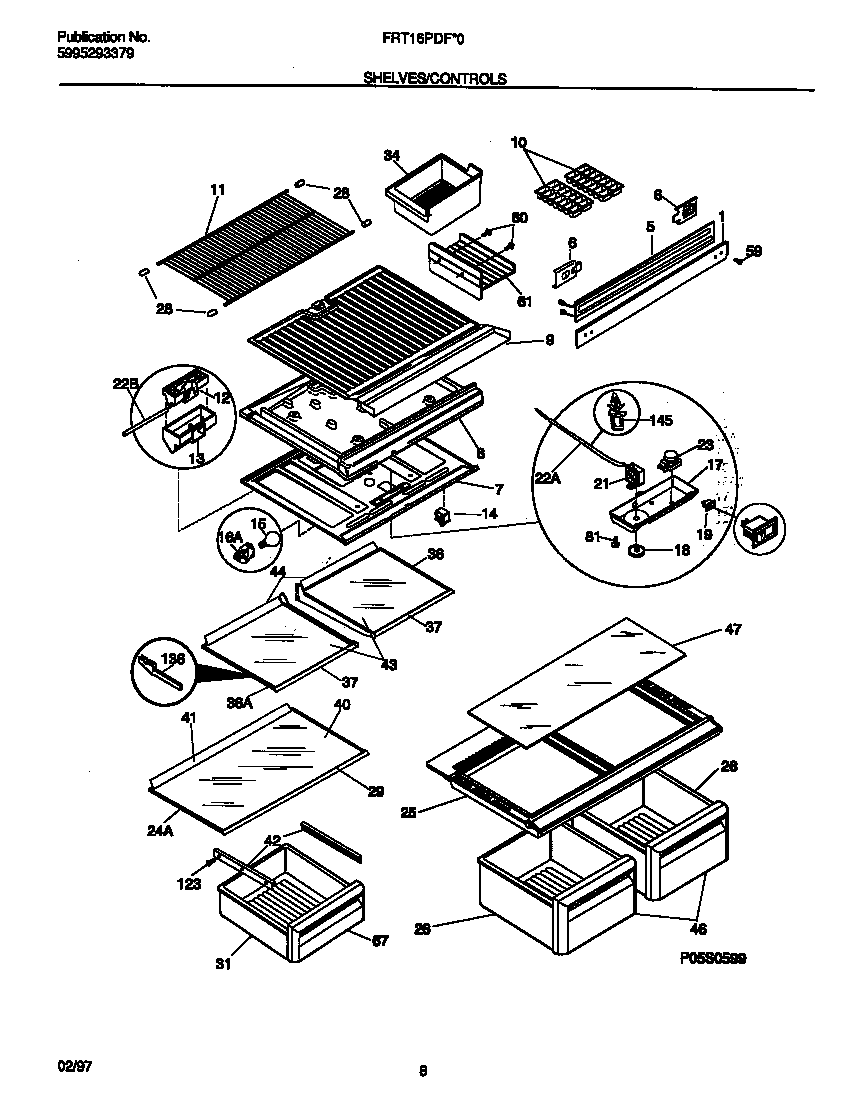

FRT16PDFW0 04 – SHELVES/CONTROLS

FRT16PDFW0 04 – SHELVES/CONTROLS

Written by

in

FRT16PDFW0 04 – SHELVES/CONTROLS

Products

PositionProduct
1WCI 218252501
5WCI 218271401
6WCI 218279800
7BWCI 5303001380
7AWCI 218740400
8CWCI 3018900
8AWCI 3206186
8B3205266 Frigidaire Refrigerator Edge Protector
9WCI 3206187
10215667501 Frigidaire Refrigerator Ice Tray Primary
11ASHELF-FREEZER, FIXED/FLAT, FULL WIDTH, WIRE
11BSPACER, FRZR SHELF (NOT ILLUSTRATED)
12B5303001449 Frigidaire Refrigerator Seal
12AWCI 218730000
13WCI 218631001
13EXTENSION, AIR DEFLECTOR, WITH INSULATION
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17AWCI 5303321455
17BNUT, ANCHOR (NI)
18WCI 5303311079
19SWITCH-ENERGY SAVER, ROCKER
21BWCI 5303001260
21ACOLD CONTROL
22WCI 218731101
22TUBE
23B5304455649 Frigidaire Refrigerator Screw
23A215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI 218276002
25WCI 218314102
26PAN – CRISPER
28END CAP-SHELF,PROTECTOR
29WCI 215919442
31WCI 3206209
345303212918 Frigidaire Refrigerator Cont
36WCI 218310301
36WCI 218310302
37WCI 215919458
40WCI 218390578
41WCI 215919839
42BWCI 5303305310
42AWCI 5303305309
43WCI 218390579
44WCI 215919842
46WCI 215357408
47WCI 218390576
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
605304455852 Frigidaire Refrigerator Screw
61WCI 215781501
67WCI 215359805
815304455650 Frigidaire Refrigerator Screw
123215005101 Frigidaire Refrigerator Screw
136WCI 218553900
145WCI 218660800
