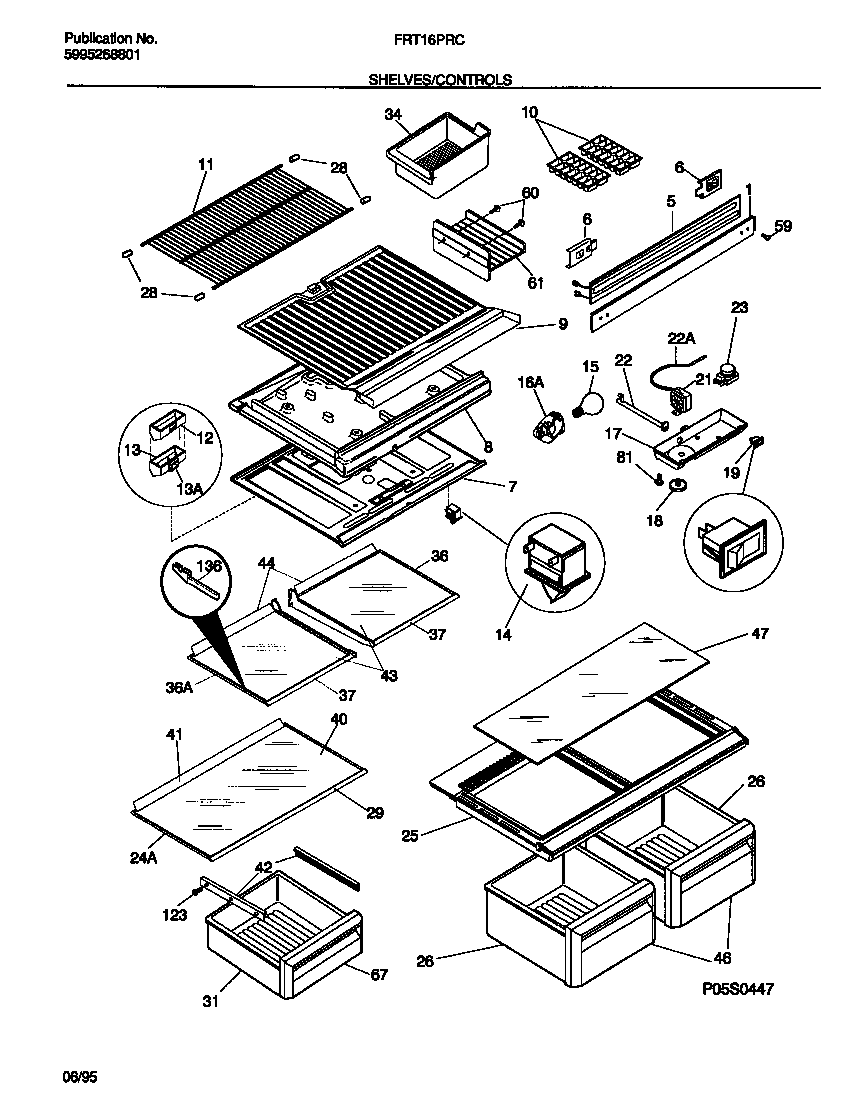

FRT16PRCD0 04 – SHELVES/CONTROLS

FRT16PRCD0 04 – SHELVES/CONTROLS

Written by

in

FRT16PRCD0 04 – SHELVES/CONTROLS

Products

PositionProduct
*41444SPACER, FRZR SHELF (NOT ILLUSTRATED)
1WCI 218252502
5WCI 218271401
6WCI 218279800
7AWCI 3206185
7BWCI 5303001380
8AWCI 3206186
8BWCI 3018900
8C3205266 Frigidaire Refrigerator Edge Protector
9WCI 3206187
10215667501 Frigidaire Refrigerator Ice Tray Primary
11SHELF-FREEZER, FIXED/FLAT, FULL WIDTH, WIRE
12B5303001449 Frigidaire Refrigerator Seal
12ADEFLECTRO, AIR, W/SEAL
13WCI 5303001448
13EXTENSION, AIR DEFLECTOR, WITH INSULATION
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17BNUT, ANCHOR (NI)
17AWCI 5303307349
18WCI 5303307352
19SWITCH-ENERGY SAVER, ROCKER
21AWCI 5303305486
21BWCI 5303001260
22TUBE
22WCI 3018891
23A215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23B5304455649 Frigidaire Refrigerator Screw
24WCI 218276002
25WCI 218314102
26PAN – CRISPER
28END CAP-SHELF,PROTECTOR
29WCI 215919477
31WCI 3206209
345303212918 Frigidaire Refrigerator Cont
36WCI 218310302
36WCI 218310301
37WCI 215919478
40WCI 218390578
41WCI 215919839
42AWCI 5303305309
42BWCI 5303305310
43WCI 218390579
44WCI 215919842
46WCI 215357404
47WCI 218390576
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
605304455852 Frigidaire Refrigerator Screw
61WCI 215781501
67WCI 215359803
815304455650 Frigidaire Refrigerator Screw
123215005101 Frigidaire Refrigerator Screw
136WCI 218553900
