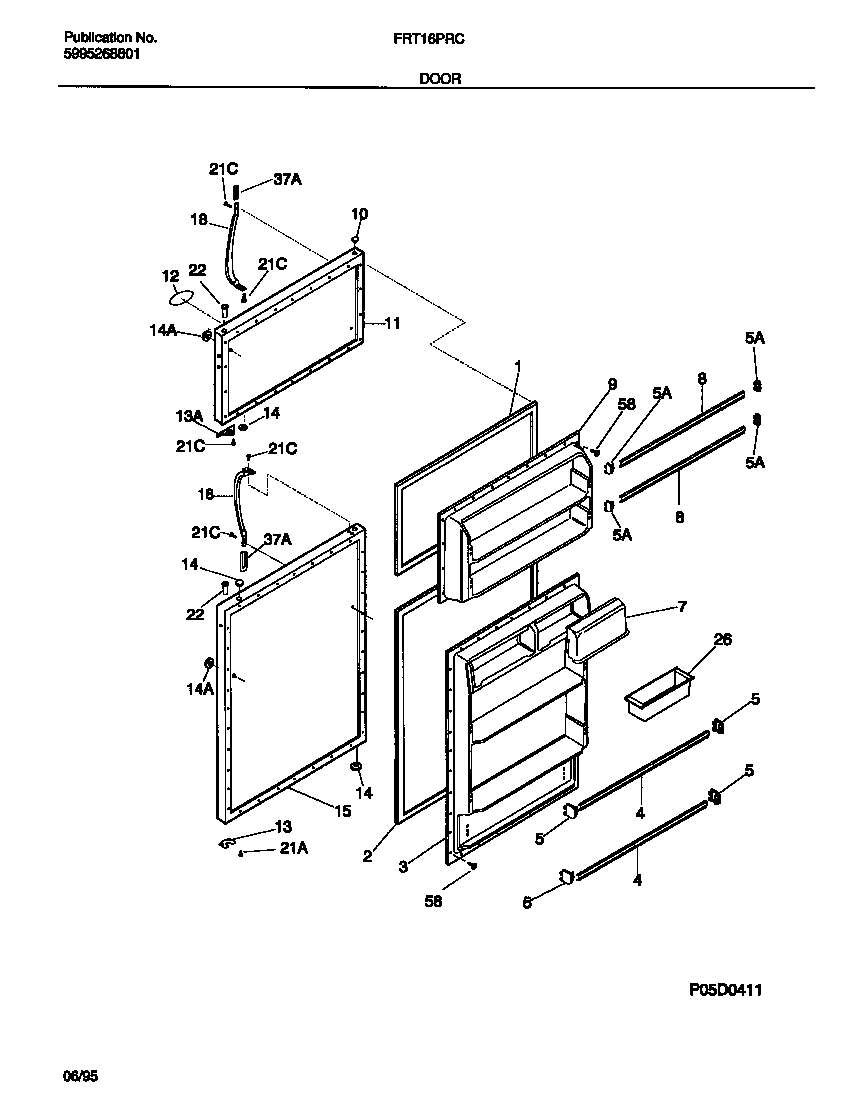

FRT16PRCY0 02 – DOOR

FRT16PRCY0 02 – DOOR

Written by

in

FRT16PRCY0 02 – DOOR

Products

PositionProduct
*41440INSULATION
1GASKET-FRZR DOOR, ALMOND, MAGNETIC
2218730603 Frigidaire Door Gasket
3WCI 218359001
4215516220 Frigidaire Refrigerator Door Rack
5WCI 215251401
5218758602 Frigidaire Refrigerator Door Rack Support
7WCI 218287904
9WCI 218358801
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917599
12MAGNET-NAMEPLATE (NOT ILLUSTRATED)
12LABEL-NAMEPLATE,ALMOND
12WCI 218364002
13WCI 218249002
13DOOR STOP, REFR SECTION
14WCI 215352211
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 5303917597
18WCI 218363402
21218252201 Frigidaire Refrigerator Screw
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
22BEARING-HINGE
26WCI 3204522
37WCI 215870608
585304455651 Frigidaire Refrigerator Screw
