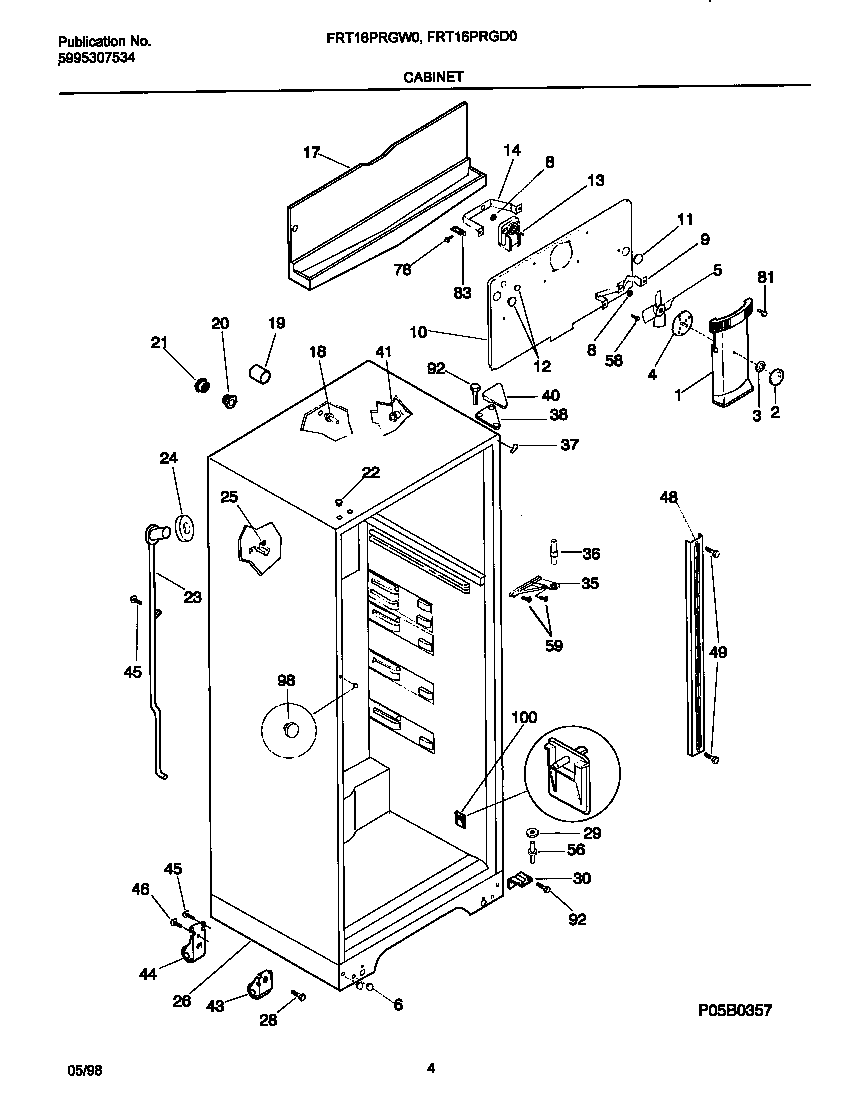

FRT16PRGD0 03 – CABINET

Products

PositionProduct
*30647WCI 218605300
*30648TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
*30651TOUCH, UP PAINT, ALMOND (NI)
*30653PLUG, BUTTON, CABINET LINER (NI)
*30644NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*30650COVER-SOUND INSUL,PRESSBOARD/FOAM ,MACHINE COMPT
*306495304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*306455304455650 Frigidaire Refrigerator Screw
*30646WCI 218605200
1WCI 218672501
2WCI 5303307351
3Nut,push-on
4WCI 218722200
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6PLUG-BUTTON, ALMOND, UPR HINGE HOLES
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10WCI 218829701
115303208309 Frigidaire Refrigerator Plug Hole
12AWCI 215079000
12BWCI 215079100
135300158289 Frigidaire Evaporator Fan Motor
14WCI 5303322992
17WCI 218725602
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22WCI 215774911
23WCI 5303210377
24WCI 5303207353
25WCI 215774100
26WCI 218605002
28BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
29BWCI 5308011326
29AWCI 218666700
30WCI 218220200
35WCI 218220102
36218251300 Frigidaire Refrigerator Center Hinge Pin
37WCI 5303321082
38WCI 3206100
40WCI 3206105
415304509705 Frigidaire Refrigerator Grommet
43WCI 218703001
44WCI 218713600
455304455651 Frigidaire Refrigerator Screw
46BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
48WCI 218261900
49218493101 Frigidaire Refrigerator Screw
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
83WCI 5308000107
92241710601 Frigidaire Refrigerator Screw
98PLUG-BUTTON, ALMOND, CTR HINGE HOLE
100SUPPORT-PAN COVER
