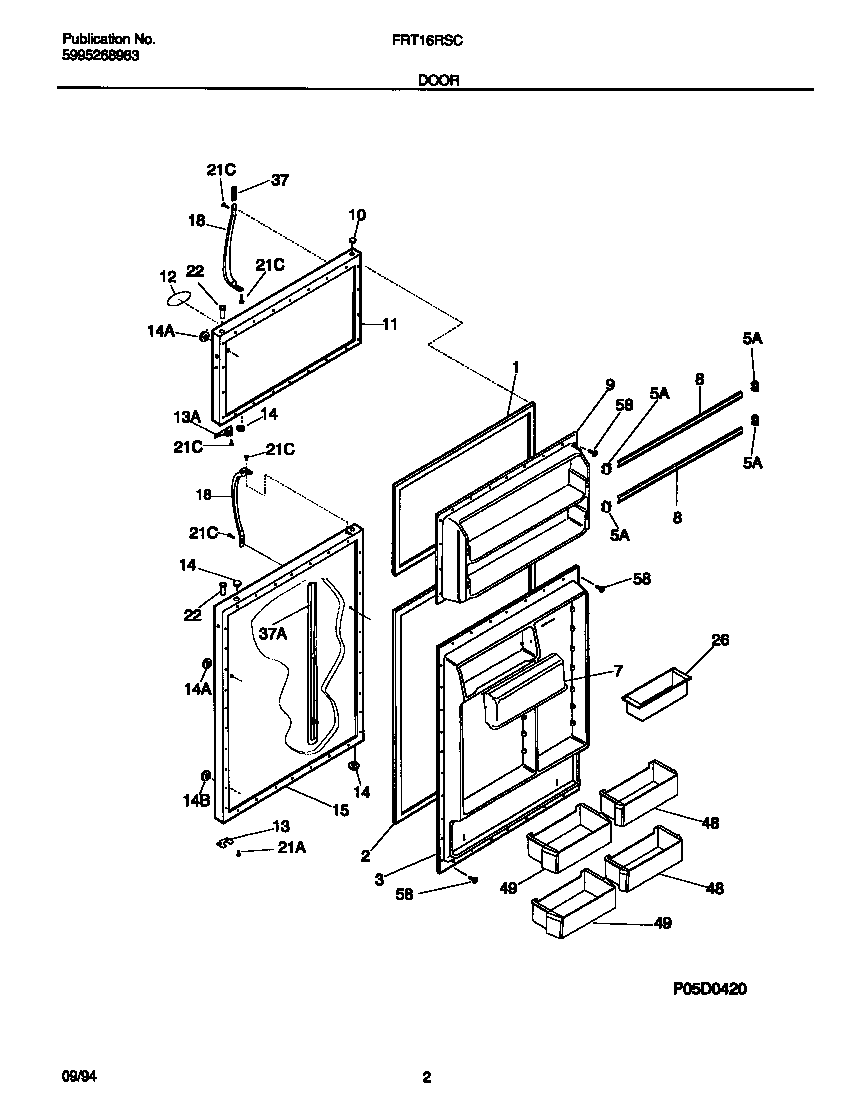

FRT16RSCD0 02 – DOOR

FRT16RSCD0 02 – DOOR

Written by

in

FRT16RSCD0 02 – DOOR

Products

PositionProduct
*39040INSULATION
1GASKET-FRZR DOOR, ALMOND, MAGNETIC
2218730603 Frigidaire Door Gasket
3WCI 218359301
5A218758602 Frigidaire Refrigerator Door Rack Support
7DOOR-DAIRY,10.71“ WIDE ,CLEAR
8215516220 Frigidaire Refrigerator Door Rack
9WCI 218358801
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917603
12BMAGNET-NAMEPLATE (NOT ILLUSTRATED)
12ALABEL-NAMEPLATE,ALMOND
12WCI 218364002
13DOOR STOP, REFR SECTION
13AWCI 218249002
14BWCI 218074002
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
14AWCI 215352211
15WCI 5303917601
18WCI 218363402
18AWCI 218363403
21ASCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21C218252201 Frigidaire Refrigerator Screw
22BEARING-HINGE
26WCI 3204522
37CWCI 215782300
37AWCI 215867039
37WCI 215870609
37BWCI 215940700
37WCI 215870608
37AWCI 215867038
48WCI 218592310
49215441502 Frigidaire Refrigerator Door Bin
585304455651 Frigidaire Refrigerator Screw
