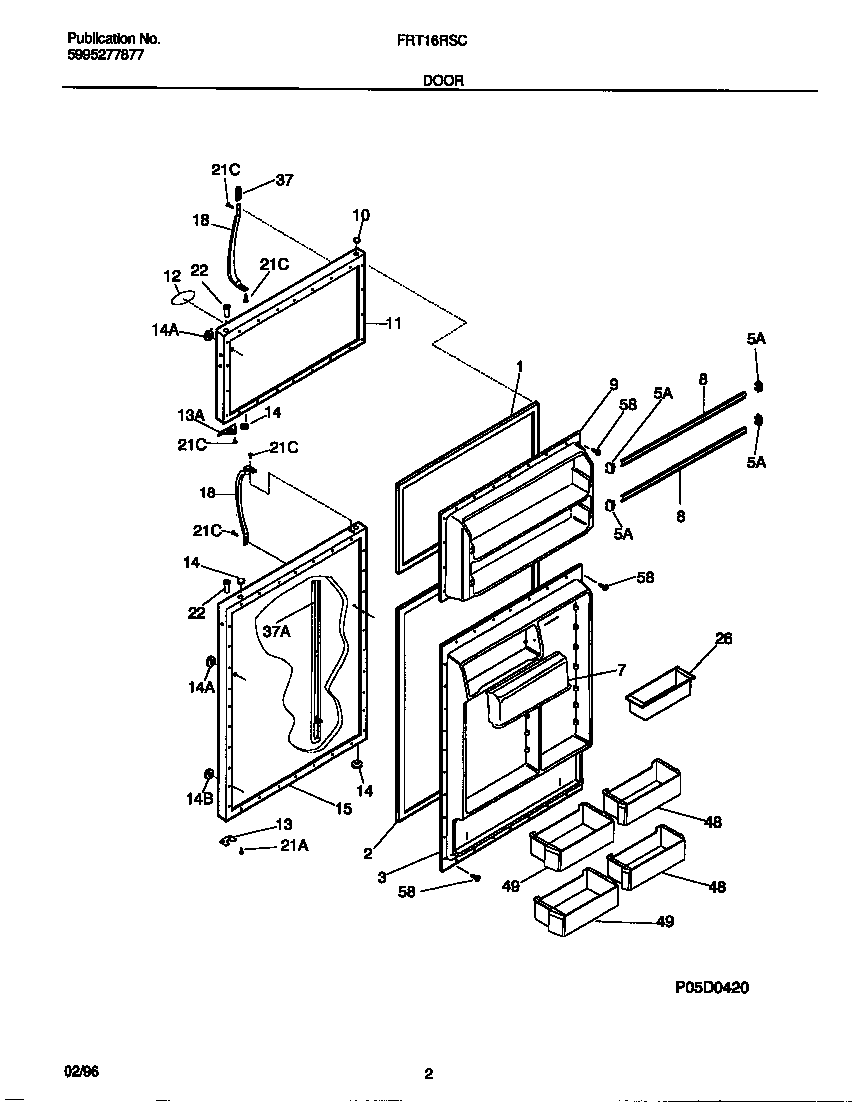

FRT16RSCD2 02 – DOOR

FRT16RSCD2 02 – DOOR

Written by

in

FRT16RSCD2 02 – DOOR

Products

PositionProduct
*74640INSULATION
1WCI 215608901
2218730603 Frigidaire Door Gasket
3WCI 218359301
5218758602 Frigidaire Refrigerator Door Rack Support
7DOOR-DAIRY,10.71“ WIDE ,CLEAR
8215516220 Frigidaire Refrigerator Door Rack
9WCI 218358801
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917603
12MAGNET-NAMEPLATE (NOT ILLUSTRATED)
12LABEL-NAMEPLATE,ALMOND
12WCI 218364002
13DOOR STOP, REFR SECTION
13WCI 218249002
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
14WCI 218074002
14WCI 215352211
15WCI 5303917601
18WCI 218363402
18WCI 218363403
21218252201 Frigidaire Refrigerator Screw
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
22BEARING-HINGE
26WCI 3204522
37BWCI 215940700
37AWCI 215867039
37WCI 215870609
37WCI 215870608
37WCI 215867038
37CWCI 215782300
48WCI 218592310
49215441502 Frigidaire Refrigerator Door Bin
58216858001 Frigidaire Refrigerator Screw
