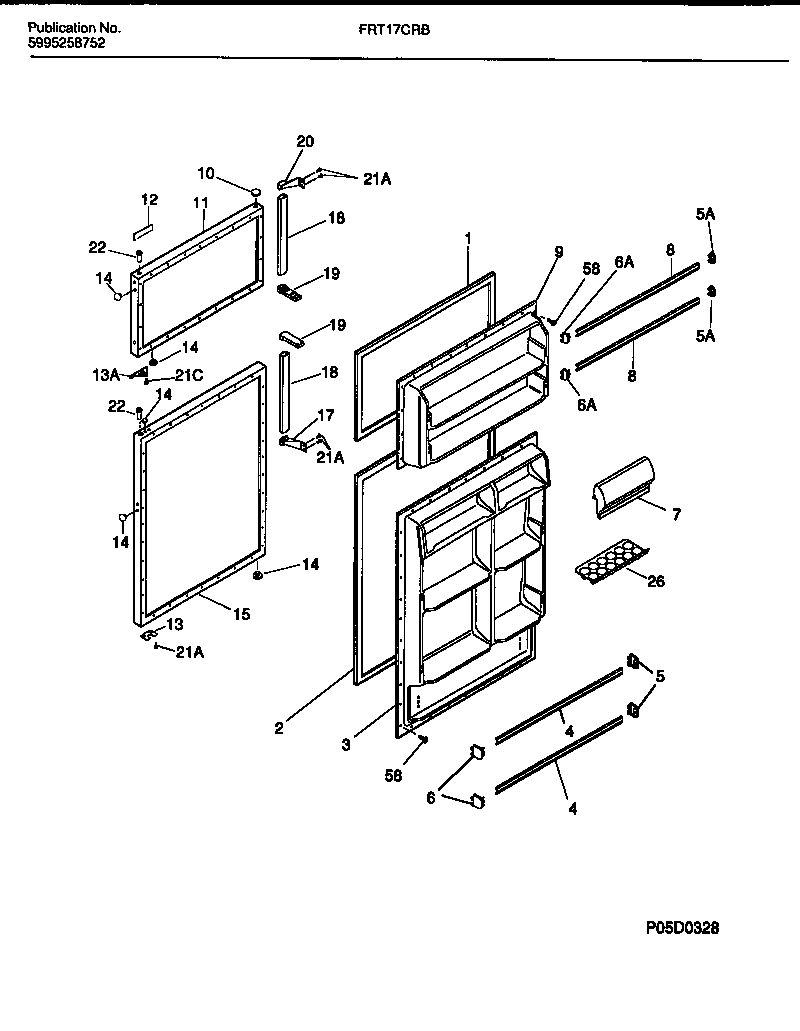

FRT17CRBW2 02 – DOOR SECTION

FRT17CRBW2 02 – DOOR SECTION

Written by

in

FRT17CRBW2 02 – DOOR SECTION

Products

PositionProduct
*15560INSULATION
1GASKET-FRZR DOOR, MAGNETIC, WHITE
2218730603 Frigidaire Door Gasket
3WCI 215026201
4215366002 Frigidaire Refrigerator Door Wide Rack
5SUPPORT-DOOR RACK, EXTENDS 1.06“, RH
5ASUPPORT-DOOR RACK, EXTENDS .56“, RH
6ASUPPORT-DOOR RACK, EXTENDS .56“, LH
6SUPPORT-DOOR RACK, EXTENDS 1.06“, LH
7WCI 5303304618
8WCI 5303300237
9WCI 5303290026
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11PANEL-FRZR DOOR, WHITE
12WCI 215008601
13DOOR STOP, REFR SECTION
13AWCI 218249001
14240494001 Frigidaire Refrigerator Plug Button
15PANEL-REFR DOOR, WHITE
17HANDLE END
18WCI 5303302990
19WCI 5303001296
20HANDLE END
21C218252201 Frigidaire Refrigerator Screw
21AWCI 5308011745
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
585304455651 Frigidaire Refrigerator Screw
