FRT17G4BD2 05 – CABINET

FRT17G4BD2 05 – CABINET

Written by

in

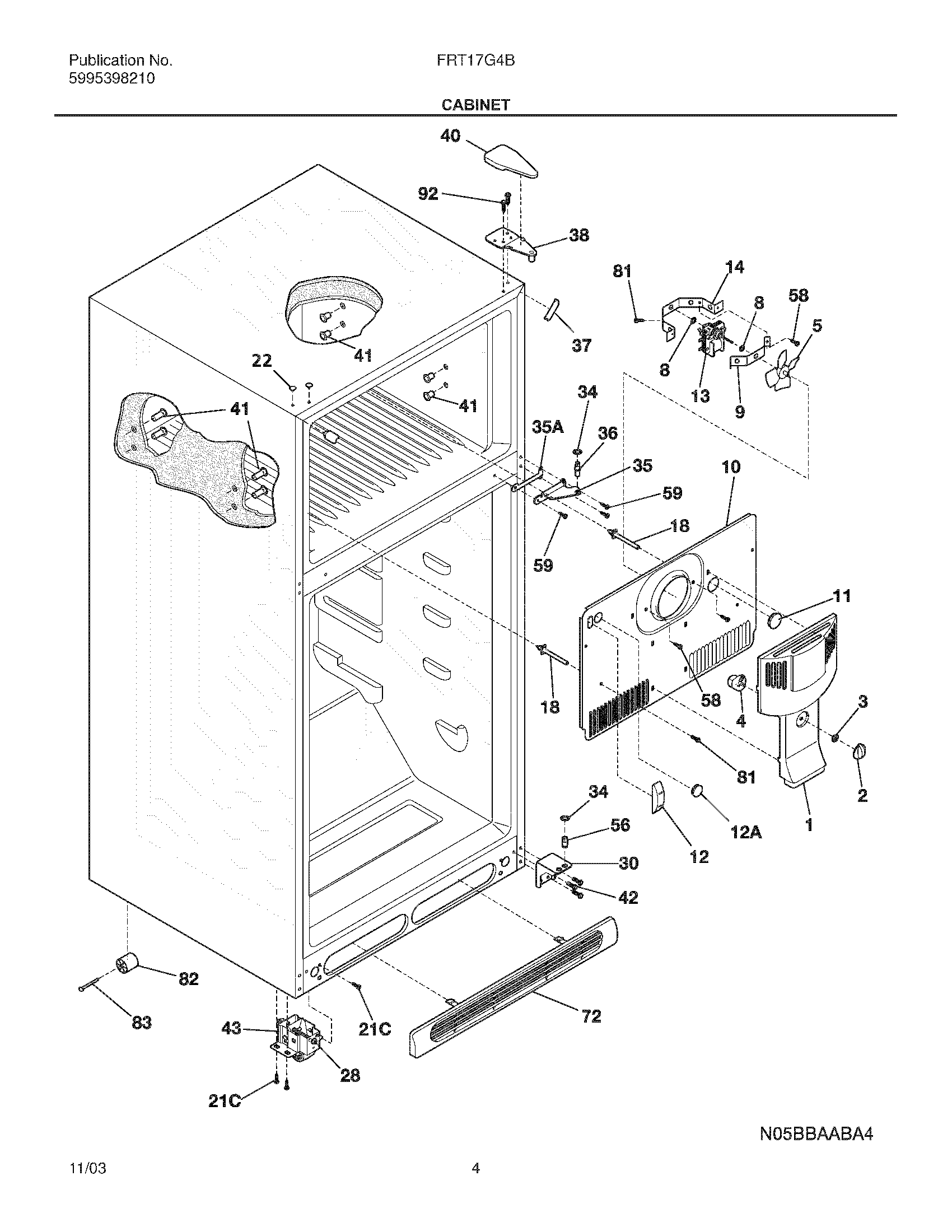

FRT17G4BD2 05 – CABINET

Products

Position	Product
NI	218843801 Frigidaire Refrigerator Screw
NI	215474201 Frigidaire Refrigerator Washer
NI	HARNESS-WIRING
NI	TOUCH, UP PAINT, ALMOND (NI)
NI	240494001 Frigidaire Refrigerator Plug Button
NI	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
NI	Clamp-motor wiring,nylon ,w/adhesive tape
NI	5304434189 Frigidaire Refrigerator Seal Kit
NI	241953902 Frigidaire Refrigerator Screw
1	241652301 Frigidaire 241259700 Evaporator Fan Cover
2	240367001 Frigidaire Refrigerator Air Damper Control Knob
3	Nut,push-on
4	WCI 240367401
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303292396
10	WCI 240462011
11	5303208309 Frigidaire Refrigerator Plug Hole
12A	WCI 240374401
12	WCI 240366801
13	EVAP MOTOR KIT
14	240438003 Frigidaire Refrigerator Bracket & Bushing
18	WCI 240411901
21C	218252201 Frigidaire Refrigerator Screw
22	WCI 215774911
30	WCI 240357105
34	240311303 Frigidaire Refrigerator Hinge Nylon Washer
35	WCI 240357005
35A	240336802 Frigidaire Refrigerator Hinge Spacer
36	241708002 Frigidaire Refrigerator Center Hinge Pin
37	5304497974 Frigidaire Corner Trim Kit
38	WCI 240356901
40	WCI 240354402
41	5304509705 Frigidaire Refrigerator Grommet
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
56	240516502 Frigidaire Refrigerator Lower Hinge Pin
58	5304455651 Frigidaire Refrigerator Screw
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
72	WCI 240368304
81	5304455650 Frigidaire Refrigerator Screw
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
92	241710601 Frigidaire Refrigerator Screw
