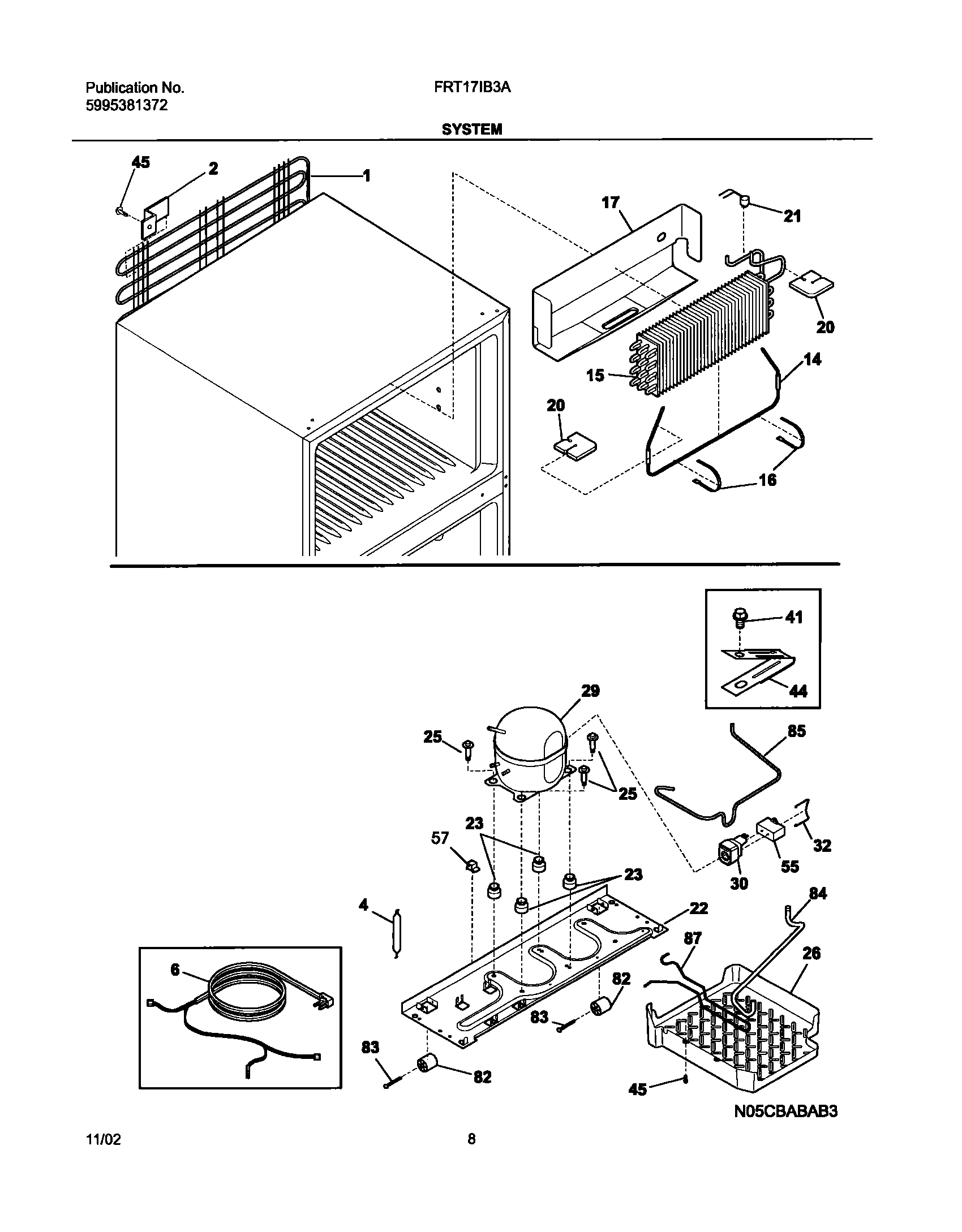

FRT17IB3AQ3 09 – SYSTEM

Products

Position	Product
NI	218252201 Frigidaire Refrigerator Screw
NI	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
NI	WCI 240524701
NI	WCI 5303918234
NI	240405201 Frigidaire Refrigerator Grommet
NI	5303918263 Frigidaire Refrigerator Primary Heat Exchanger Kit (O/S1)
NI	240388701 Frigidaire Refrigerator Wiring Harness
NI	SPACER-COND TUBE,BLACK
NI	240396801 Frigidaire Refrigerator Tube Clamp
1	WCI 240406403
2	BRACKET, MOUNTIN, CONDENSER, (4)
4	5303305677 Frigidaire Replacement Filter Dryer Filters
6	WCI 240375401
14	5303918203 Frigidaire Defrost Heater Kit
15	5303918275 Frigidaire Refrigerator Evaporator Kit P1
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	241801301 Frigidaire Refrigerator Drain Trough
20	WCI 240518401
21	5303918202 Frigidaire Refrigerator Defrost Thermostat
22	241665605 Frigidaire Refrigerator Base Compressor
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	Screw-compressor mtg,hex washer head ,
26	241920605 Frigidaire Refrigerator Defrost Pan
29	5304507765 Frigidaire Refrigerator Compressor Kit
30	5304491942 Frigidaire Refrigerator Starter Kit
32	5304497418 Frigidaire Refrigerator Clip
41	WCI 218897001
44	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
45	5304455650 Frigidaire Refrigerator Screw
55	5304464438 Frigidaire Compressor Run Capacitor
57	240542601 Frigidaire Clip-WIRING Harness
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
84	240500801 Frigidaire Refrigerator P-1 Tube-Drain
85	WCI 240493101
87	WCI 240533001
