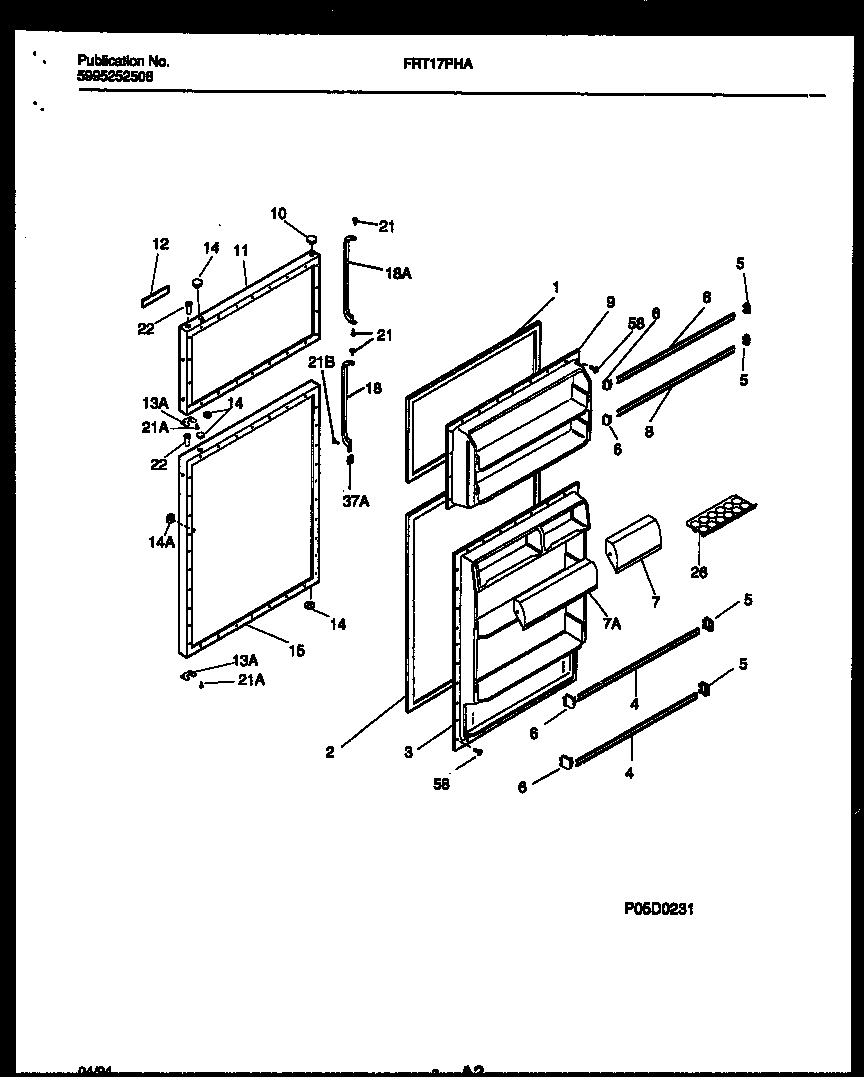

FRT17PHAD1 02 – DOOR PARTS

FRT17PHAD1 02 – DOOR PARTS

Written by

in

FRT17PHAD1 02 – DOOR PARTS

Products

PositionProduct
*98361INSULATION
1WCI 215608901
2218730603 Frigidaire Door Gasket
3WCI 5303271592
4215516220 Frigidaire Refrigerator Door Rack
55303325990 Frigidaire Refrigerator Door Bar End Cap
65303325991 Frigidaire Refrigerator Door Bar Endcap
7WCI 5303299998
7AWCI 5303300292
9WCI 5303207236
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917306
12WCI 215008602
13AWCI 5308000255
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
14AWCI 215352211
15WCI 5303917378
18WCI 215482121
18AWCI 215482110
21SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, WHITE,
21AWCI 5308011745
21B154518001 Frigidaire Refrigerator Screw
22BEARING-HINGE
37ATRIM-HANDLE, END CAP, ALMOND, REFR DOOR
585304455651 Frigidaire Refrigerator Screw
