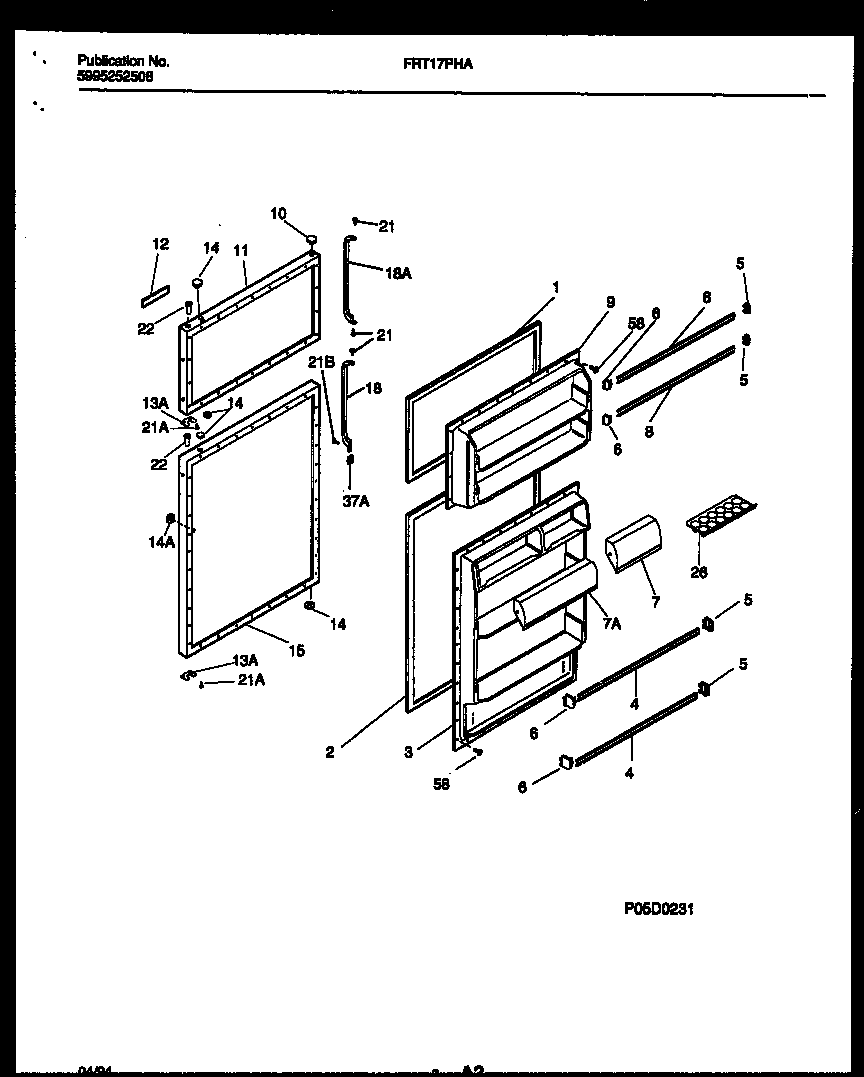

FRT17PHAD2 02 – DOOR PARTS

FRT17PHAD2 02 – DOOR PARTS

Written by

in

FRT17PHAD2 02 – DOOR PARTS

Products

PositionProduct
*98361INSULATION
1WCI 215608901
2218730603 Frigidaire Door Gasket
3WCI 5303207227
4215516220 Frigidaire Refrigerator Door Rack
55303325990 Frigidaire Refrigerator Door Bar End Cap
65303325991 Frigidaire Refrigerator Door Bar Endcap
7WCI 5303290921
9WCI 5303207236
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917306
12WCI 215008602
13AWCI 5308000255
14AWCI 215352211
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 5303917378
18WCI 215482121
18AWCI 215482110
21B154518001 Frigidaire Refrigerator Screw
21SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, WHITE,
21AWCI 5308011745
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
37ATRIM-HANDLE, END CAP, ALMOND, REFR DOOR
585304455651 Frigidaire Refrigerator Screw
