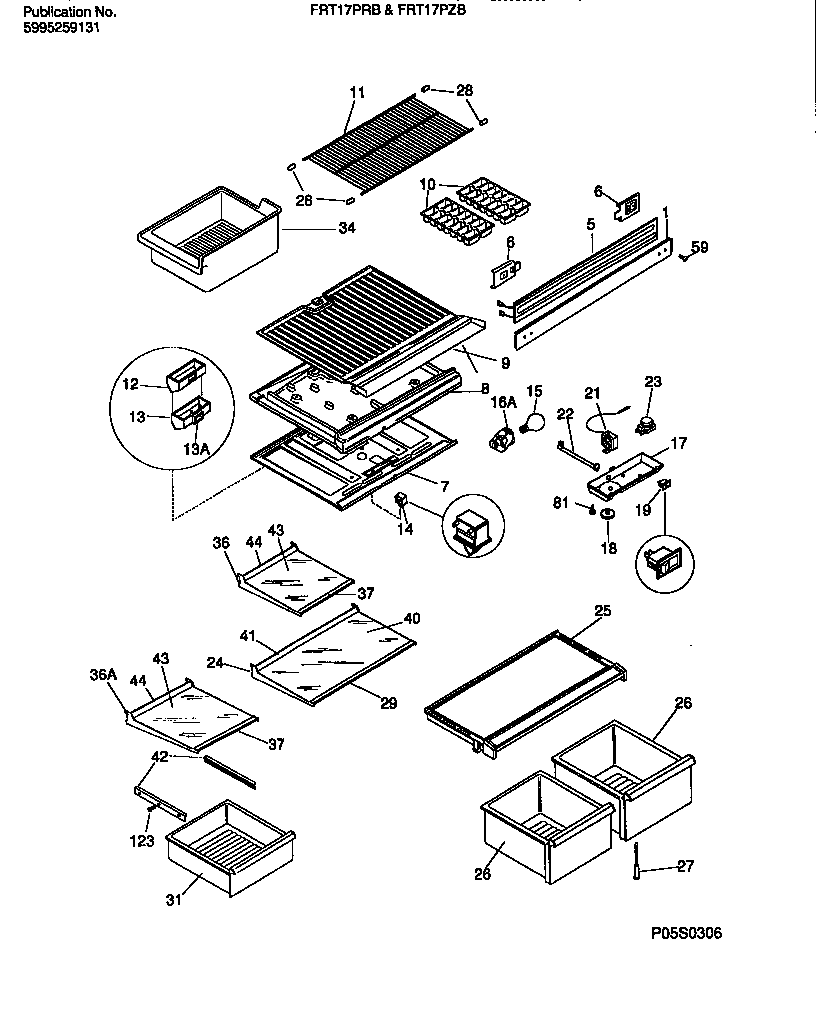

FRT17PRBD2 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Products

PositionProduct
1WCI 218252502
5WCI 218271401
6WCI 218279800
7AWCI 5303001380
7TOP PANEL-REFR
8A3205266 Frigidaire Refrigerator Edge Protector
8BWCI 3018900
8WCI 5303018899
9WCI 5303001537
10215667501 Frigidaire Refrigerator Ice Tray Primary
11SHELF-FREEZER, FIXED/FLAT, FULL WIDTH, WIRE
11ASPACER, FRZR SHELF (NOT ILLUSTRATED)
12DEFLECTRO, AIR, W/SEAL
12A5303001449 Frigidaire Refrigerator Seal
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17ANUT, ANCHOR (NI)
17WCI 5303299980
18WCI 5303299979
19SWITCH-ENERGY SAVER, ROCKER
21AWCI 5303001260
21WCI 5303018894
22WCI 3018891
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23A5304455649 Frigidaire Refrigerator Screw
24WCI 215919125
25WCI 5349001603
26WCI 5303295929
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
29WCI 215919401
31WCI 5303295932
345303212918 Frigidaire Refrigerator Cont
36AWCI 215919102
36WCI 215919124
37WCI 215919408
40WCI 5303300713
41TRIM-SHELF, 23.30“, REAR
42AHANGER-PAN/BASKET, RH
42HANGER-PAN/BASKET, LH
43WCI 5303299769
44WCI 215919808
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
123215005101 Frigidaire Refrigerator Screw
