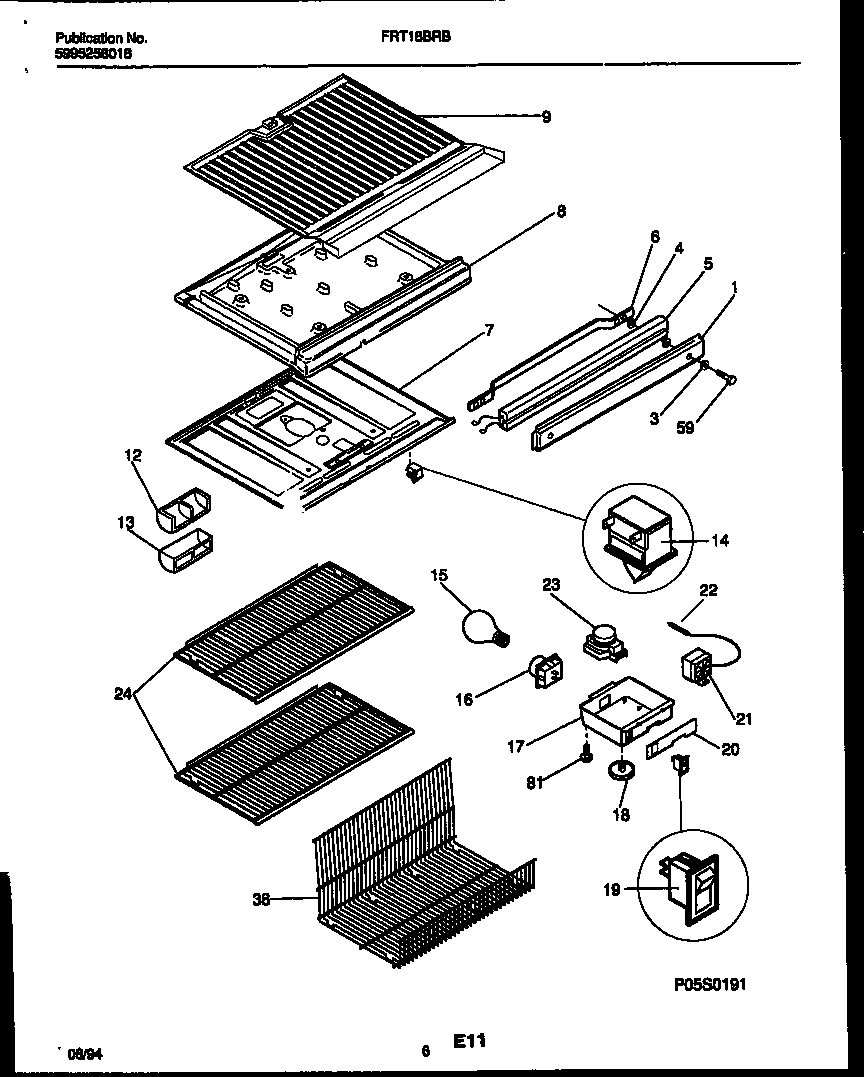

FRT18BRBW0 04 – SHELVES AND SUPPORTS

Products

Position	Product
1	WCI 5303200366
3	WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4	WCI 218188100
5	WCI 5303210351
6	WCI 5308010008
7	TOP PANEL-REFR, W/SNAP BUSHING
7A	BUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
7B	WCI 5303001380
8	DIVIDER, STYROFOAM
8A	HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
9	WCI 5303211427
12	DEFLECTOR-AIR
13	COVER – AIR DEFLECTOR
14	5309918806 Frigidaire Refrigerator Light Switch Door
15	316538904 Frigidaire Oven Lamp Light
16	SOCKET-LIGHT/LAMP
17A	NUT, ANCHOR (NI)
17	WCI 5303015152
18	WCI 5303300067
19	SWITCH-ENERGY SAVER, SLIDE TYPE
20	WCI 215611400
21	WCI 5303200810
21A	WCI 5303001260
22	TUBE
23A	5304455649 Frigidaire Refrigerator Screw
23	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24A	WCI 5303283297
24	SHELF, SLIDING WIRE
38	WCI 5303297857
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
81	5304455650 Frigidaire Refrigerator Screw
