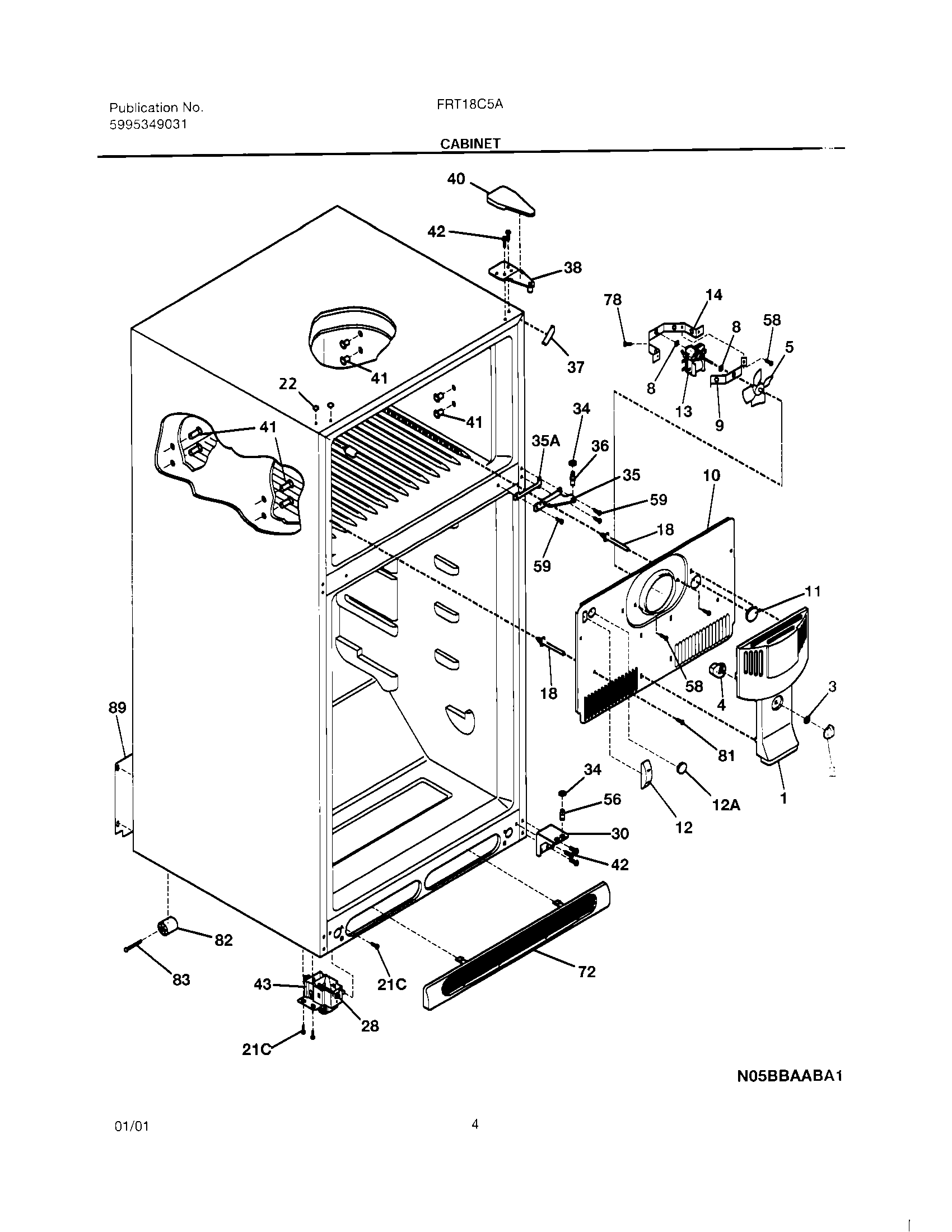

FRT18C5AW0 05 – CABINET

FRT18C5AW0 05 – CABINET

Written by

in

FRT18C5AW0 05 – CABINET

Products

Position	Product
NI	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
NI	PLUG, BUTTON, CABINET LINER (NI)
NI	WCI 240385401
NI	Clamp-motor wiring,nylon ,w/adhesive tape
NI	5304434189 Frigidaire Refrigerator Seal Kit
1	241652301 Frigidaire 241259700 Evaporator Fan Cover
2	240367001 Frigidaire Refrigerator Air Damper Control Knob
3	Nut,push-on
4	WCI 240367401
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303292396
10	WCI 240313605
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 240366801
12	WCI 240374401
13	EVAP MOTOR KIT
14	240438003 Frigidaire Refrigerator Bracket & Bushing
18	WCI 240345801
21	218252201 Frigidaire Refrigerator Screw
22	215774901 Frigidaire Refrigerator Button Plug
30	240314011 Frigidaire Refrigerator Lower Bracket Hinge
34	240311303 Frigidaire Refrigerator Hinge Nylon Washer
35	240313802 Frigidaire Refrigerator Center Hinge Bracket
35	240336802 Frigidaire Refrigerator Hinge Spacer
36	241708002 Frigidaire Refrigerator Center Hinge Pin
37	242161201 Frigidaire Refrigerator Cabinet Corner Trim
38	240313703 Frigidaire Refrigerator Hinge
40	240354401 Frigidaire Upper Hinge Cover
41	5304509705 Frigidaire Refrigerator Grommet
43	5304499445 Frigidaire Refrigerator Roller Assembly
56	240516502 Frigidaire Refrigerator Lower Hinge Pin
58	5304455651 Frigidaire Refrigerator Screw
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
72	241839405 Frigidaire Refrigerator Kickplate/Grille
78	5308000039 Frigidaire Refrigerator Screw
81	218843801 Frigidaire Refrigerator Screw
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
89	WCI 240326102
