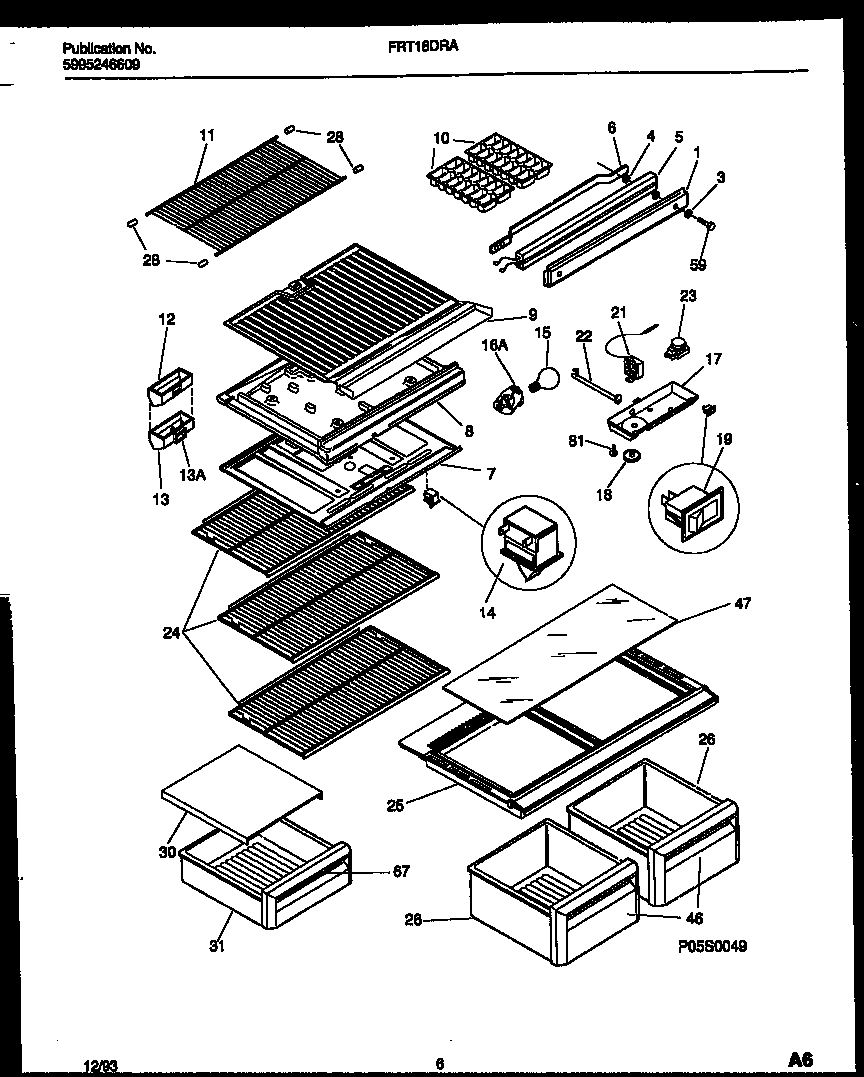

FRT18DRAY0 04 – SHELVES AND SUPPORTS

FRT18DRAY0 04 – SHELVES AND SUPPORTS

Written by

in

FRT18DRAY0 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 3206450
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4WCI 215882100
5WCI 3206445
6WCI 215170802
7WCI 3206454
7AWCI 5303001380
8AWCI 3018900
8WCI 3206456
8B3205266 Frigidaire Refrigerator Edge Protector
9BOTTOM PANEL-FRZR
10215667501 Frigidaire Refrigerator Ice Tray Primary
11SHELF, FREEZER, FIXED/FLAT, FULL WIDTH, WIRE
12A5303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13WCI 5303001448
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17WCI 5303299980
17ANUT, ANCHOR (NI)
18WCI 5303299979
19SWITCH-ENERGY SAVER, ROCKER
21AWCI 5303001260
21WCI 5303018894
22WCI 3018891
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23A5304455649 Frigidaire Refrigerator Screw
24SHELF, SLIDING, FULL WIDTH, WIRE, REFR SECTION
25WCI 5303207340
263206438 Frigidaire Refrigerator Crisper Pan
28END CAP-SHELF,PROTECTOR
30WCI 5303207338
31MEAT PAN
46WCI 215357601
47WCI 5303299999
59WCI 5308012258
67WCI 215357801
815304455650 Frigidaire Refrigerator Screw
