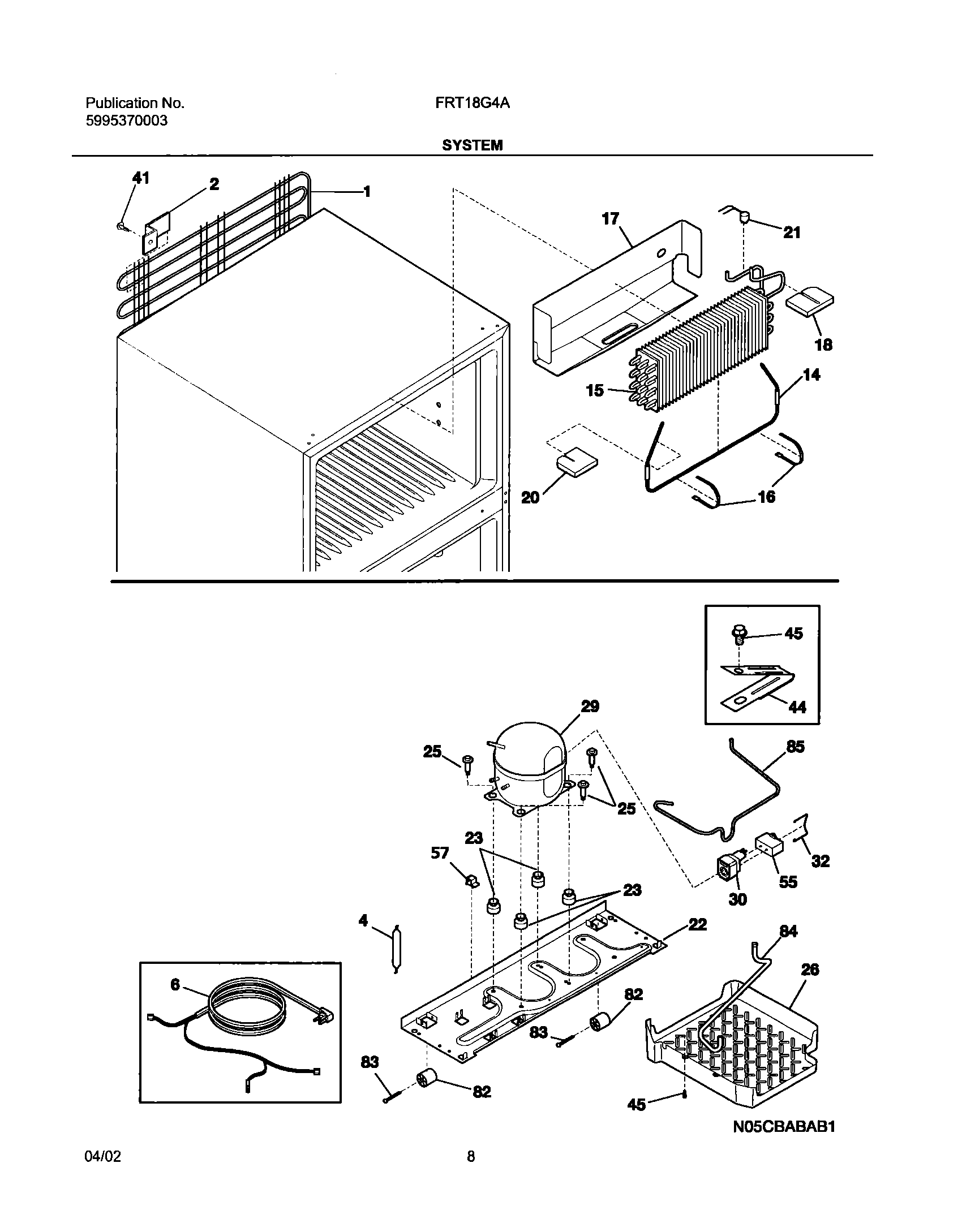

FRT18G4AQ8 09 – SYSTEM

FRT18G4AQ8 09 – SYSTEM

Written by

in

FRT18G4AQ8 09 – SYSTEM

Products

PositionProduct
NI218252201 Frigidaire Refrigerator Screw
NISPACER-COND TUBE,BLACK
NI5303918263 Frigidaire Refrigerator Primary Heat Exchanger Kit (O/S1)
NIWCI 240375401
NIWCI 5303918234
NIWCI 240385401
NI218843801 Frigidaire Refrigerator Screw
NI240405201 Frigidaire Refrigerator Grommet
NI240396801 Frigidaire Refrigerator Tube Clamp
1WCI 240406404
2BRACKET, MOUNTIN, CONDENSER, (4)
45303305677 Frigidaire Replacement Filter Dryer Filters
6240388701 Frigidaire Refrigerator Wiring Harness
145303918208 Frigidaire Defrost Heater Kit
155303918274 Frigidaire Refrigerator P1-Evaporator Kit Os1
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17241801301 Frigidaire Refrigerator Drain Trough
18Insulation Block,RH
20WCI 240362401
215303918202 Frigidaire Refrigerator Defrost Thermostat
22WCI 240330001
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25Screw-compressor mtg,hex washer head ,
26241920605 Frigidaire Refrigerator Defrost Pan
295304507765 Frigidaire Refrigerator Compressor Kit
305304491942 Frigidaire Refrigerator Starter Kit
325304497418 Frigidaire Refrigerator Clip
415304455650 Frigidaire Refrigerator Screw
445303001199 Frigidaire Refrigerator Wiring Harness Clamp
45WCI 218897001
555304464438 Frigidaire Compressor Run Capacitor
57240542601 Frigidaire Clip-WIRING Harness
825304418225 Frigidaire Refrigerator Roller P-1
835304455655 Frigidaire Refrigerator Rivet
84240500801 Frigidaire Refrigerator P-1 Tube-Drain
85WCI 240493101
