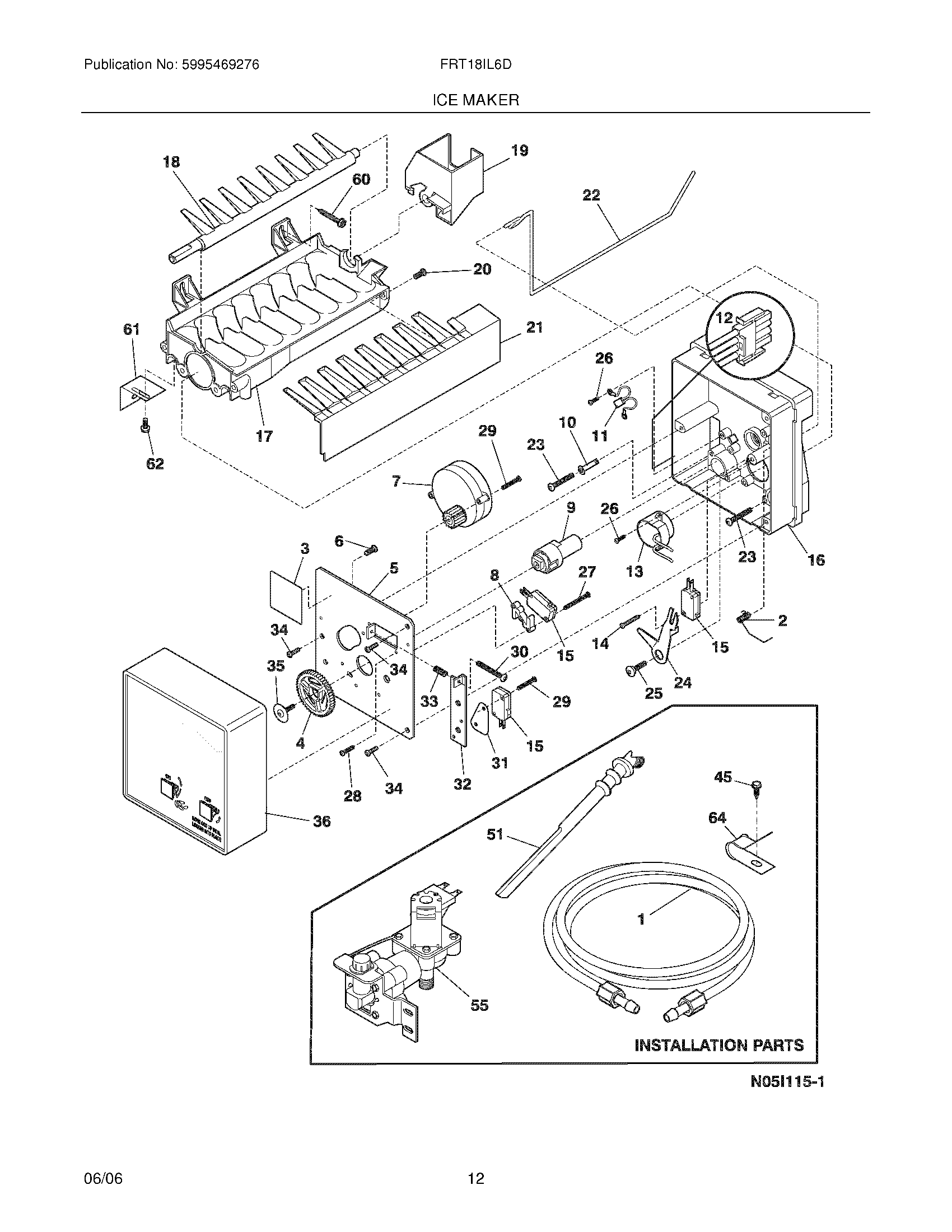

FRT18IL6DKL 11 – ICE MAKER

FRT18IL6DKL 11 – ICE MAKER

Written by

in

FRT18IL6DKL 11 – ICE MAKER

Products

PositionProduct
NI5304445223 Frigidaire SPRING BEAM
NI5304456689 Frigidaire Refrigerator Washer
NI241798231 Frigidaire Refrigerator Ice Maker Assembly
NI240561701 Frigidaire Refrigerator Seal
NI5304456690 Frigidaire LABEL
NI5304456693 Frigidaire Refrigerator Nut
NI5304456692 Frigidaire Refrigerator Washer
NIWCI 5304456688
NIAdapter-water supply,nut & sleeve ,
NI5308000039 Frigidaire Refrigerator Screw
1218976901 Frigidaire Refrigerator P1-Water Inlet Tube
2WCI 5304456650
35304456657 Frigidaire Ice Maker Label
45304469403 Frigidaire Gear
55304456659 Frigidaire Refrigerator Plate-Mounting
6WCI 5304456691
8WCI 5304456661
9WCI 5304456662
11WCI 5304456663
125304456875 Frigidaire Refrigerator Wiring Harness
135304456665 Frigidaire Refrigerator Thermostat
14WCI 5304456666
155304456667 Frigidaire Refrigerator Micro Switch
165304456668 Frigidaire Refrigerator Support
18WCI 5304456670
20WCI 5304456687
22WCI 5304456673
235304456674 Frigidaire Screw
245304456675 Frigidaire Refrigerator Lever Arm
25WCI 5304456676
26WCI 5304420654
27WCI 5304456677
285304456660 Frigidaire Screw
295304456678 Frigidaire Screw
305304456679 Frigidaire Timing Adjustment Screw
31WCI 5304456680
325304456681 Frigidaire Plate-VALVE SWITCH
33WCI 5304456682
34241679901 Frigidaire Refrigerator Screw
355304456684 Frigidaire Screw
36WCI 5304456685
37WCI 5304408583
425303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455650 Frigidaire Refrigerator Screw
455304455651 Frigidaire Refrigerator Screw
45241500305 Frigidaire Refrigerator Screw
465308000133 Frigidaire Refrigerator Clamp
465303001193 Frigidaire Refrigerator Clamp
51241796405 Frigidaire Refrigerator Fill Water Tube
55ICE MAKER WATER VALVE
60218362501 Frigidaire Refrigerator Screw
61218721500 Frigidaire Refrigerator Bracket-Leveling
62240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
645304455846 Frigidaire Refrigerator Clamp
