FRT18IL6DQA 05 – CABINET

FRT18IL6DQA 05 – CABINET

Written by

in

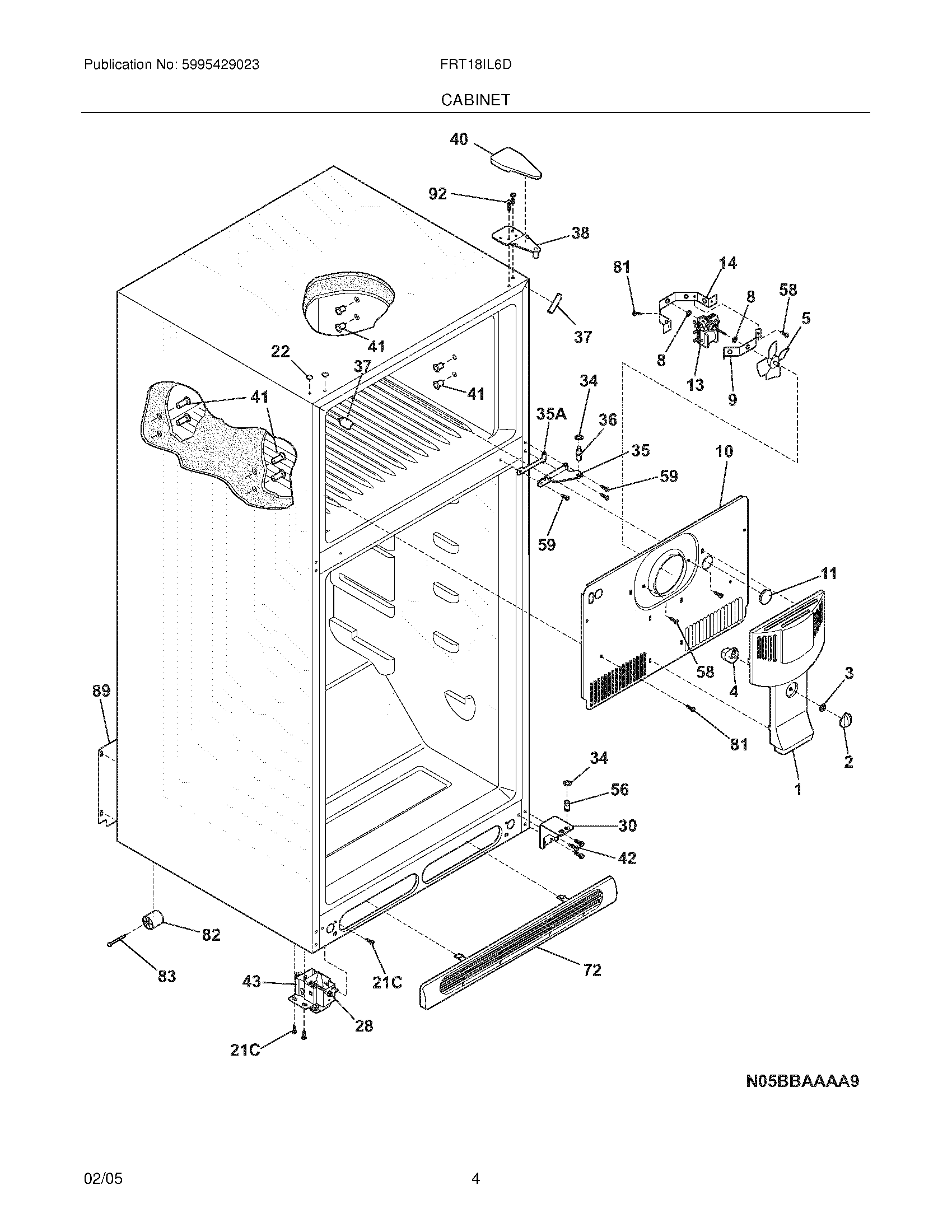

FRT18IL6DQA 05 – CABINET

Products

Position	Product
NI	HARNESS-WIRING
NI	5304455651 Frigidaire Refrigerator Screw
NI	5304414035 Frigidaire Refrigerator Touch Up Paint Bisque
NI	215474201 Frigidaire Refrigerator Washer
NI	Clamp-motor wiring,nylon ,w/adhesive tape
NI	241953902 Frigidaire Refrigerator Screw
NI	5304434189 Frigidaire Refrigerator Seal Kit
NI	241500305 Frigidaire Refrigerator Screw
1	241652301 Frigidaire 241259700 Evaporator Fan Cover
2	240367001 Frigidaire Refrigerator Air Damper Control Knob
3	Nut,push-on
4	WCI 241523701
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303292396
10	WCI 240462010
11	5303208309 Frigidaire Refrigerator Plug Hole
13	EVAP MOTOR KIT
14	240438003 Frigidaire Refrigerator Bracket & Bushing
21C	218252201 Frigidaire Refrigerator Screw
22	215774901 Frigidaire Refrigerator Button Plug
30	240314011 Frigidaire Refrigerator Lower Bracket Hinge
34	240311303 Frigidaire Refrigerator Hinge Nylon Washer
35	BRACKET-CTR HINGE, BISQUE
35A	240336802 Frigidaire Refrigerator Hinge Spacer
36	241708002 Frigidaire Refrigerator Center Hinge Pin
37	5303918608 Frigidaire Refrigerator Corner Cabinet Trim
38	240313703 Frigidaire Refrigerator Hinge
40	WCI 240354403
41	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
56	240516502 Frigidaire Refrigerator Lower Hinge Pin
58	241941202 Frigidaire Refrigerator Screw-#8-18 X 3/8 F
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
72	WCI 240368206
81	5304455650 Frigidaire Refrigerator Screw
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
89	241733911 Frigidaire Refrigerator Access Cover
92	241710601 Frigidaire Refrigerator Screw
