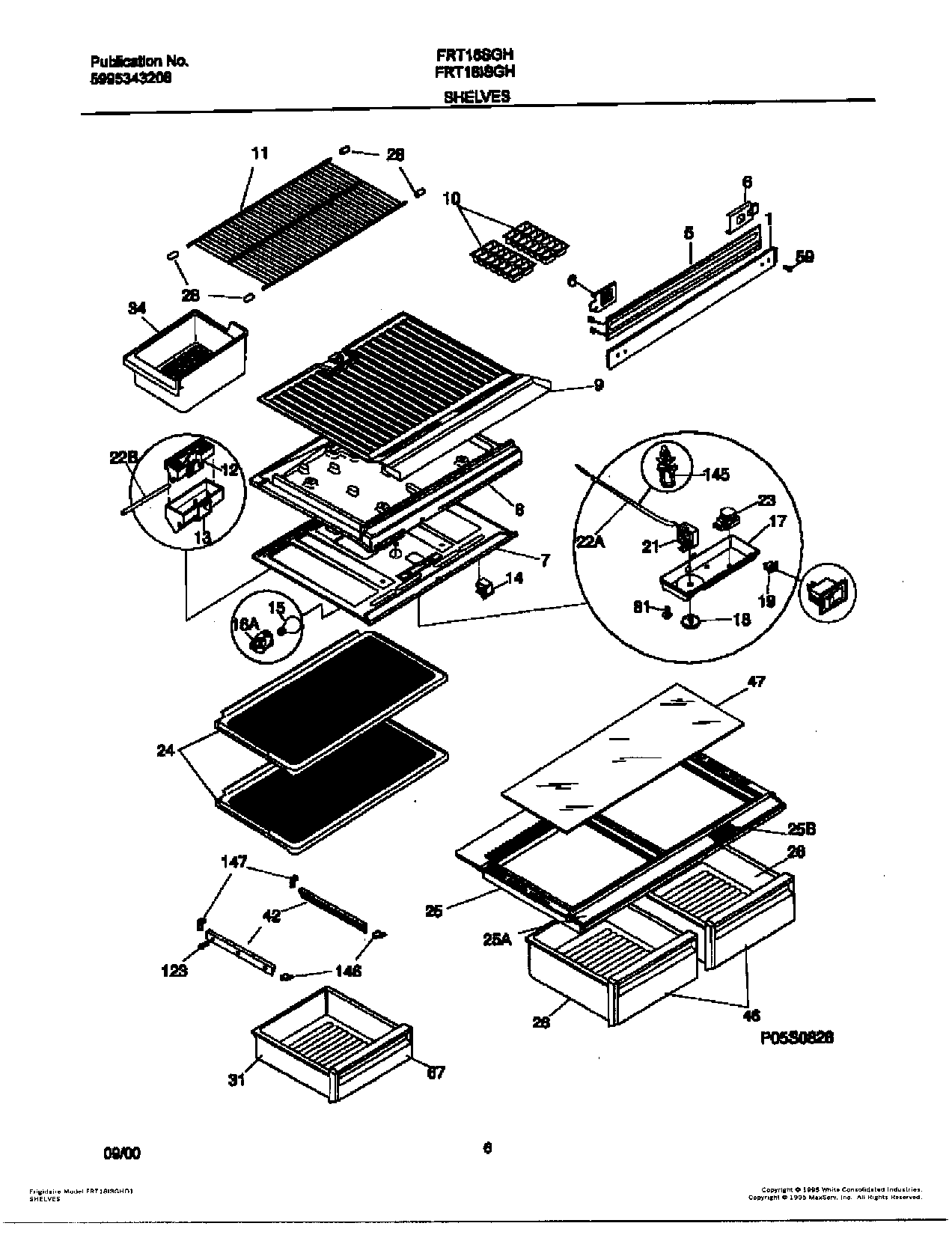

FRT18ISGHW1 04 – SHELVES

FRT18ISGHW1 04 – SHELVES

Written by

in

FRT18ISGHW1 04 – SHELVES

Products

PositionProduct
*205825304455649 Frigidaire Refrigerator Screw
*205785303299664 Frigidaire Refrigerator Spacer-Shelf
*20577HARNESS-WIRING,CONTROL/DIVIDER
*20580NUT, ANCHOR (NI)
*20581WCI 5303001260
*205795303001449 Frigidaire Refrigerator Seal
1WCI 218874301
5WCI 218781003
6WCI 218845602
7WCI 218814800
8WCI 218872903
9WCI 218814700
11SHELF, FREEZER, FIXED/FLAT, FULL WIDTH, WIRE
12WCI 218730000
13WCI 218631001
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17WCI 5304414816
18WCI 5303311079
19SWITCH-ENERGY SAVER, ROCKER
21COLD CONTROL
22TUBE
22WCI 218731104
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI 218770904
25WCI 215686501
255303307715 Frigidaire Refrigerator Humidity Control
25WCI 218905811
263206438 Frigidaire Refrigerator Crisper Pan
28END CAP-SHELF,PROTECTOR
31MEAT PAN
345303212918 Frigidaire Refrigerator Cont
42A218971202 Frigidaire Refrigerator Hanger-Pan/Tray
42B218971302 Frigidaire Refrigerator Rh Rail
46WCI 215357609
47WCI 218498174
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
67WCI 215357813
81WCI 5303001380
123215005101 Frigidaire Refrigerator Screw
145WCI 218660800
146TAB-MEAT PAN HANGER, FRONT (NOT ILLUSTRATED)
147TAB-MEAT PAN HANGER, REAR (NOT ILLUSTRATED)
