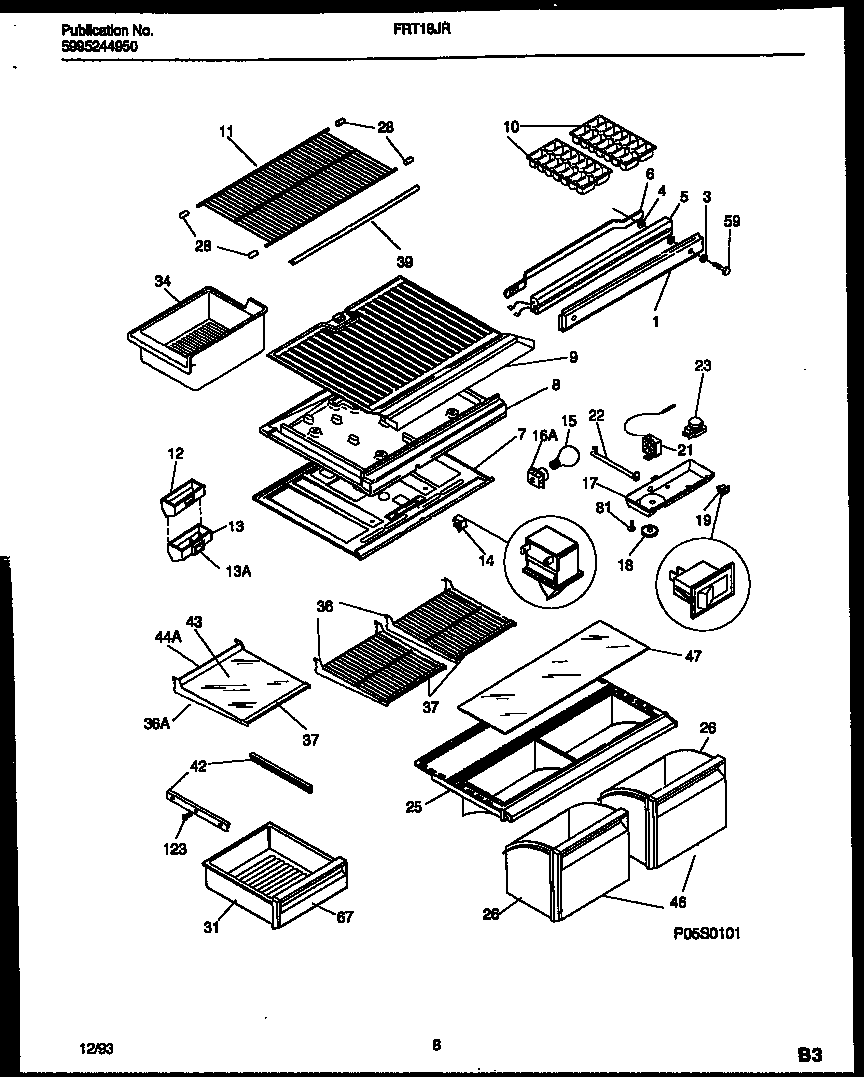

FRT18JRAD0 05 – SHELVES AND SUPPORTS

Written by

Products

Position	Product
*89662	WCI 215339900
1	WCI 5303200370
3	WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4	SPACER-MULLION MTG, STEEL
5	WCI 5303210351
6	WCI 5308010008
7A	WCI 5303001380
7	TOP – REFRIGERATOR
8B	3205266 Frigidaire Refrigerator Edge Protector
8A	WCI 3018900
8	DIVIDER-FOAM
9	WCI 5303211427
10	215667501 Frigidaire Refrigerator Ice Tray Primary
11	WCI 5303283031
12A	5303001449 Frigidaire Refrigerator Seal
12	DEFLECTRO, AIR, W/SEAL
13A	EXTENSION, AIR DEFLECTOR, WITH INSULATION
13	WCI 5303001448
14	5309918806 Frigidaire Refrigerator Light Switch Door
15	316538904 Frigidaire Oven Lamp Light
16A	218906802 Frigidaire Light Lamp Socket
17	WCI 5303296359
17A	NUT, ANCHOR (NI)
18	WCI 5303296361
19	SWITCH-ENERGY SAVER, ROCKER
21	WCI 5303018894
21A	WCI 5303001260
22	WCI 3018891
23	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23A	5304455649 Frigidaire Refrigerator Screw
25A	TRIM – CRISPER COVER
25	WCI 215363202
26	WCI 215363301
28	END CAP-SHELF,PROTECTOR
31	MEAT PAN
34	5303212918 Frigidaire Refrigerator Cont
36	WCI 5303303387
36A	FRAME-MEAT KPR SHLF, CANTILEVER, HALF WIDTH
37A	RETAINER-GLASS, (3) (NON-ILLUSTRATED)
37	WCI 5303293823
39	TRIM-FRZR SHELF, (3)
42A	218971302 Frigidaire Refrigerator Rh Rail
42	218971202 Frigidaire Refrigerator Hanger-Pan/Tray
43	WCI 5303299899
44A	LOCK-SHELF TRIM, REAR
44A	TRIM-SHELF, 12.59“, REAR
46	WCI 215412103
47	WCI 5303299974
59	WCI 5308012258
67	WCI 5303299981
81	5304455650 Frigidaire Refrigerator Screw
123	WCI 08014528
