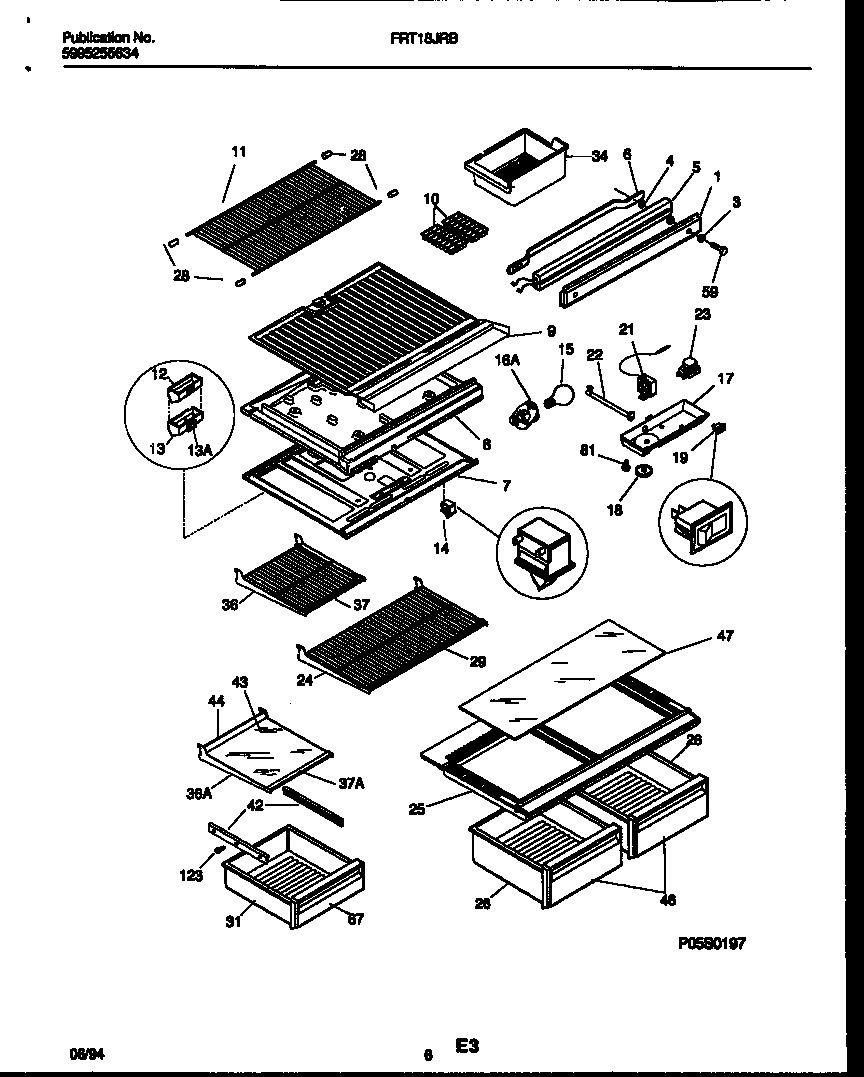

FRT18JRBD0 04 – SHELVES AND SUPPORTS

FRT18JRBD0 04 – SHELVES AND SUPPORTS

Written by

in

FRT18JRBD0 04 – SHELVES AND SUPPORTS

Products

PositionProduct
*10144CLIP-CANTILEVER SHLF
1WCI 3206450
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4WCI 215882100
5WCI 3206445
6WCI 215170802
7WCI 3206454
7AWCI 5303001380
8WCI 3206456
8A3205266 Frigidaire Refrigerator Edge Protector
8AWCI 3018900
9BOTTOM PANEL-FRZR
10215667501 Frigidaire Refrigerator Ice Tray Primary
11SHELF, FREEZER, FIXED/FLAT, FULL WIDTH, WIRE
12A5303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13WCI 5303001448
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17ANUT, ANCHOR (NI)
17WCI 5303299980
18WCI 5303299979
19SWITCH-ENERGY SAVER, ROCKER
21AWCI 5303001260
21WCI 5303018894
22WCI 3018891
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI 5303295595
25WCI 5303207340
263206438 Frigidaire Refrigerator Crisper Pan
28END CAP-SHELF,PROTECTOR
29TRIM-WIRE SHELF,24.92“ ,FRONT
31MEAT PAN
345303212918 Frigidaire Refrigerator Cont
36WCI 5303295954
36AWCI 215919132
37AWCI 215919409
37TRIM-WIRE SHELF,12.13“ ,FRONT
42AWCI 5303282331
42WCI 5303282330
43WCI 215723506
44TRIM-GLASS SHELF, 12.13“, REAR
46WCI 215357601
47INSERT-PAN COVER, GLASS
59WCI 5308012258
67WCI 215357801
815304455650 Frigidaire Refrigerator Screw
123WCI 08014528
