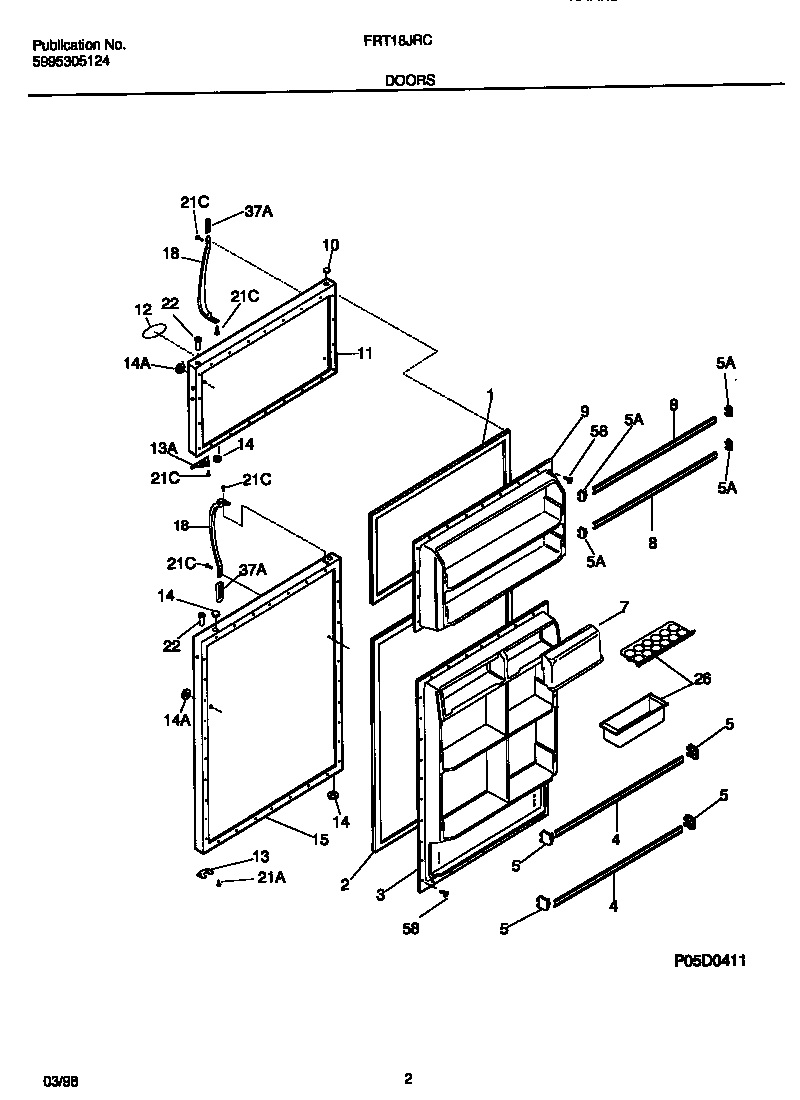

FRT18JRCD5 02 – DOORS

FRT18JRCD5 02 – DOORS

Written by

in

FRT18JRCD5 02 – DOORS

Products

PositionProduct
*03361WCI 218425005
*03366TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
*03367TAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
*03360WCI 5303001380
*03365MAGNET-NAMEPLATE (NOT ILLUSTRATED)
*03363LABEL-NAMEPLATE,ALMOND
*03368INSULATION
1WCI 215608906
25303207345 Frigidaire Refrigerator Door Gasket
3WCI 218360001
5B218809801 Frigidaire Refrigerator Support-Door Rack
5218758602 Frigidaire Refrigerator Door Rack Support
5A218809701 Frigidaire Refrigerator Door Rack Support
7WCI 218287904
8215516220 Frigidaire Refrigerator Door Rack
9WCI 218360101
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917807
12WCI 218364002
13WCI 218249002
13WCI 5308000255
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
14PLUG-BUTTON, ALMOND, REFR DOOR FRONT, UPPER
15WCI 5303917808
18WCI 218668002
21218252201 Frigidaire Refrigerator Screw
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
22BEARING-HINGE
26WCI 3204522
37WCI 215870608
58216858001 Frigidaire Refrigerator Screw
