FRT18JRCW3 02 – DOOR

FRT18JRCW3 02 – DOOR

Written by

in

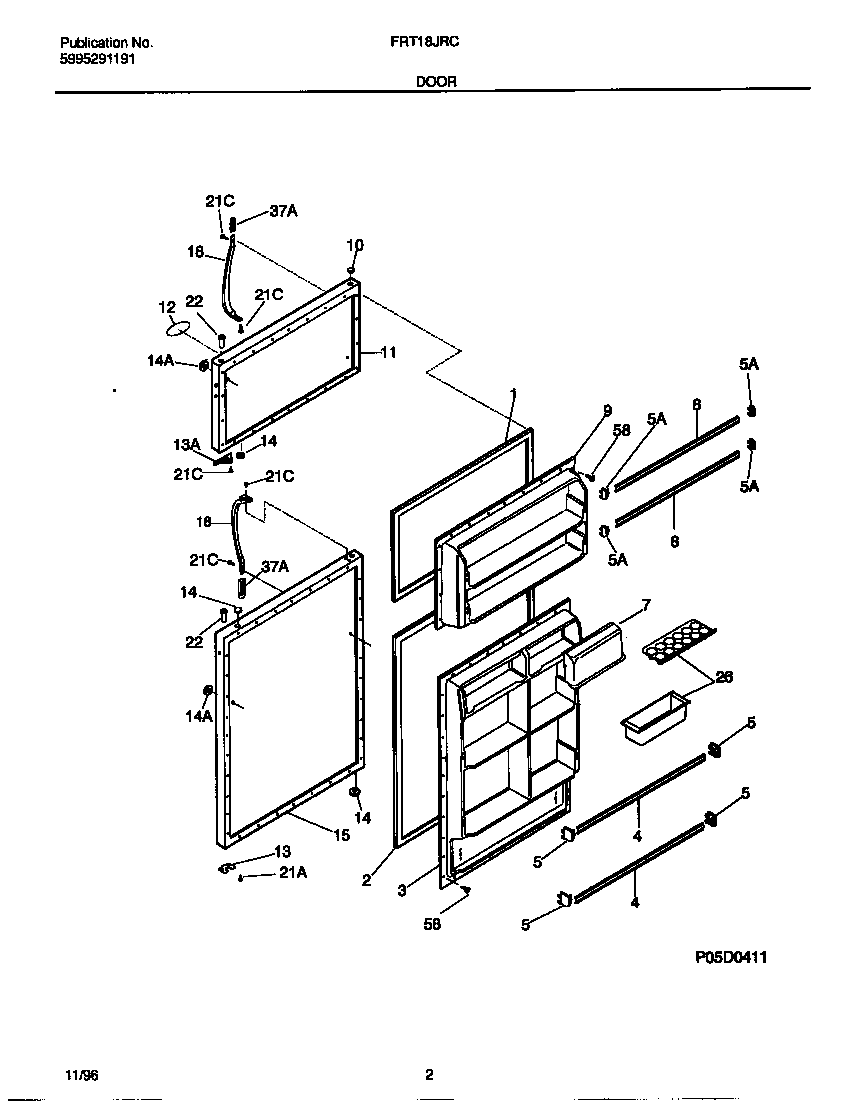

FRT18JRCW3 02 – DOOR

Products

PositionProduct
*54360INSULATION
1WCI 215608916
25303207345 Frigidaire Refrigerator Door Gasket
3WCI 218360001
5WCI 218758701
5218758602 Frigidaire Refrigerator Door Rack Support
7WCI 218287904
8215516220 Frigidaire Refrigerator Door Rack
9WCI 218360101
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917805
12WCI 218364001
12WCI 218425004
12LABEL-NAMEPLATE,WHITE
12BTAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
12AMAGNET-NAMEPLATE (NOT ILLUSTRATED)
13WCI 218249001
13WCI 5308000255
14240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917806
18218668001 Frigidaire Refrigerator P-1 Handle
21218252201 Frigidaire Refrigerator Screw
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
22WCI 218519300
26WCI 3204522
37WCI 215870607
58216858001 Frigidaire Refrigerator Screw
