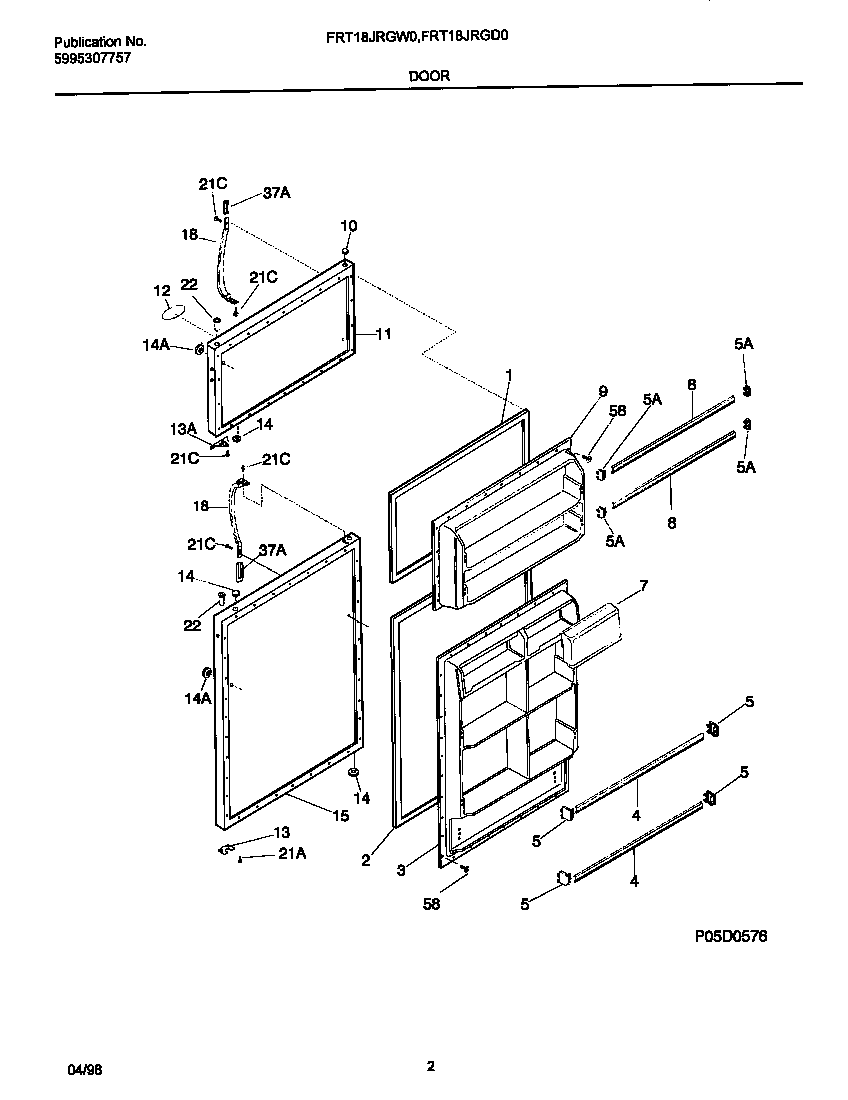

FRT18JRGD0 02 – DOOR

Products

PositionProduct
*35326TAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
*35325TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
*35323LABEL-NAMEPLATE,ALMOND
*35324MAGNET-NAMEPLATE (NOT ILLUSTRATED)
*353275304455852 Frigidaire Refrigerator Screw
*35321WCI 218364002
*35328INSULATION
1WCI 215608906
25303207345 Frigidaire Refrigerator Door Gasket
3WCI 218360001
5218758602 Frigidaire Refrigerator Door Rack Support
5218809801 Frigidaire Refrigerator Support-Door Rack
7DOOR-DAIRY,10.71“ WIDE ,CLEAR
8215516220 Frigidaire Refrigerator Door Rack
9WCI 218360101
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917807
12WCI 218425005
13WCI 218800300
13WCI 218249002
14PLUG-BUTTON, ALMOND, REFR DOOR FRONT, UPPER
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 5303917808
18WCI 218668002
21B131420300 Frigidaire Screw
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21A218252201 Frigidaire Refrigerator Screw
22WCI 218519300
37WCI 215870620
58216858001 Frigidaire Refrigerator Screw
