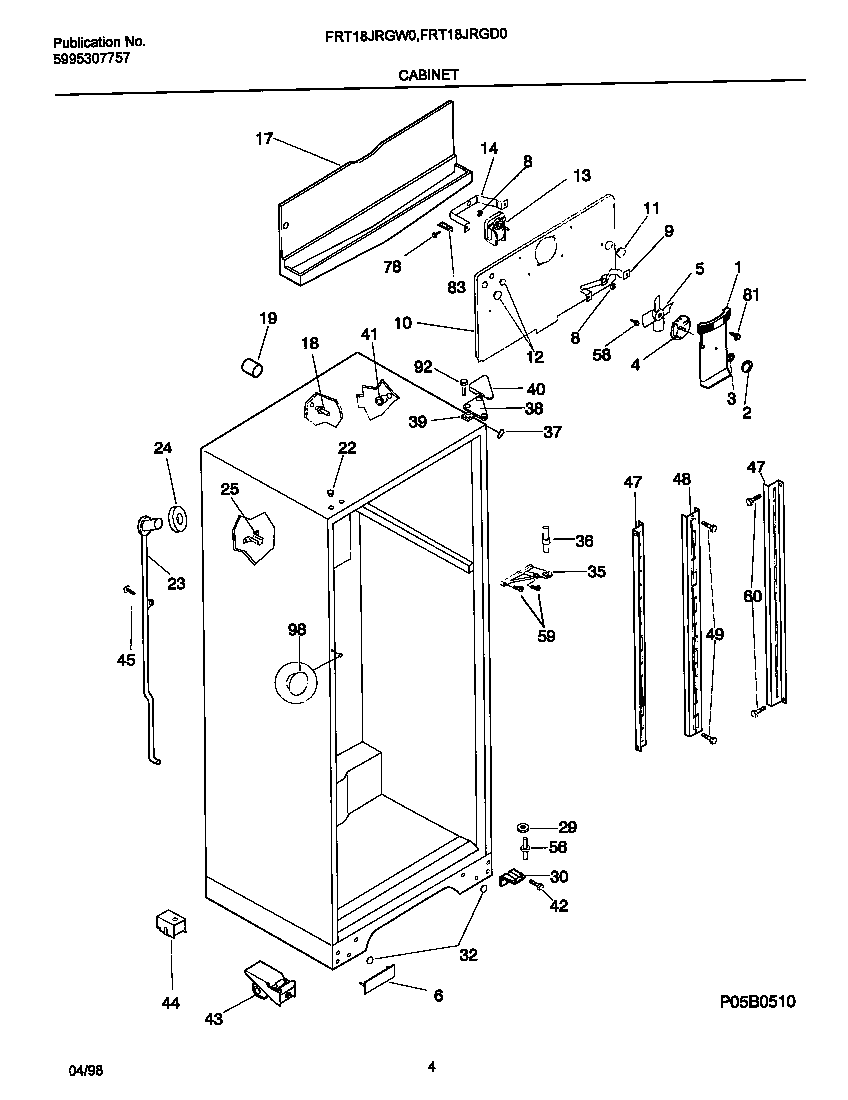

FRT18JRGD0 03 – CABINET

Products

PositionProduct
*35330TAPPING PLATE, LOWER HINGE, (2) (NI)
*35336WCI 5308009790
*35334WCI 5308009760
*35335BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
*35339PLUG, BUTTON, CABINET LINER (NI)
*35329NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*35331SHIM, LOWER HINGE (NI)
*35338TOUCH, UP PAINT, ALMOND (NI)
*353325304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*35333WCI 218703002
1WCI 218672501
2WCI 5303307351
3Nut,push-on
4WCI 218722200
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6WCI 218448302
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10WCI 3206451
115303208309 Frigidaire Refrigerator Plug Hole
12BWCI 215079100
12AWCI 215079000
135300158289 Frigidaire Evaporator Fan Motor
14WCI 5303322992
17WCI 218725700
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
22WCI 215774911
23WCI 5303269702
24WCI 5303207353
25WCI 215774100
29BWCI 5308011326
29AWASHER, .34 X .62 X .05, NYLON
30WCI 3206136
32PLUG-BUTTON, ALMOND, CABINET BASE
35WCI 218220102
36218251300 Frigidaire Refrigerator Center Hinge Pin
37WCI 5303321082
38WCI 3206100
39SHIM – UPPER HINGE
40WCI 3206105
415304509705 Frigidaire Refrigerator Grommet
42241710601 Frigidaire Refrigerator Screw
43WCI 218724000
44ROLLER ASSY, METAL HOUSING, REAR, (2)
455304455852 Frigidaire Refrigerator Screw
47WCI 218233300
48WCI 5303292395
49SCREW, HEX WASHER HEAD, 8-18AB X 1-1/2
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
60218362501 Frigidaire Refrigerator Screw
785304455651 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
98PLUG-BUTTON, ALMOND, CTR HINGE HOLE
