FRT18JRGW0 02 – DOOR

FRT18JRGW0 02 – DOOR

Written by

in

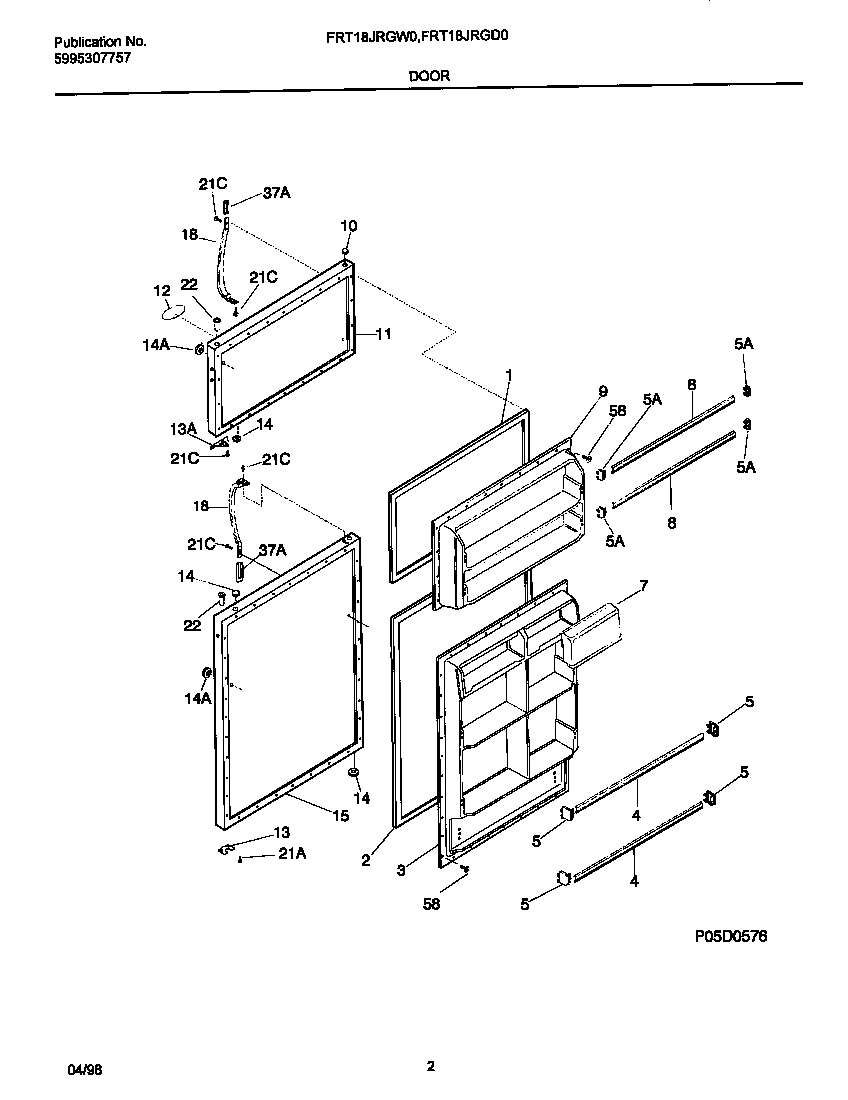

FRT18JRGW0 02 – DOOR

Products

PositionProduct
*35325TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
*35326TAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
*35322LABEL-NAMEPLATE,WHITE
*35324MAGNET-NAMEPLATE (NOT ILLUSTRATED)
*353275304455852 Frigidaire Refrigerator Screw
*35320WCI 218364001
*35328INSULATION
1WCI 215608916
25303207345 Frigidaire Refrigerator Door Gasket
3WCI 218360001
5218758602 Frigidaire Refrigerator Door Rack Support
5218809801 Frigidaire Refrigerator Support-Door Rack
6WCI 218759701
7DOOR-DAIRY,10.71“ WIDE ,CLEAR
8215516220 Frigidaire Refrigerator Door Rack
9WCI 218360101
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917805
12WCI 218425004
13WCI 218800300
13WCI 218249001
14240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917806
18218668001 Frigidaire Refrigerator P-1 Handle
21B131420300 Frigidaire Screw
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21A218252201 Frigidaire Refrigerator Screw
22WCI 218519300
37WCI 215870619
58216858001 Frigidaire Refrigerator Screw
