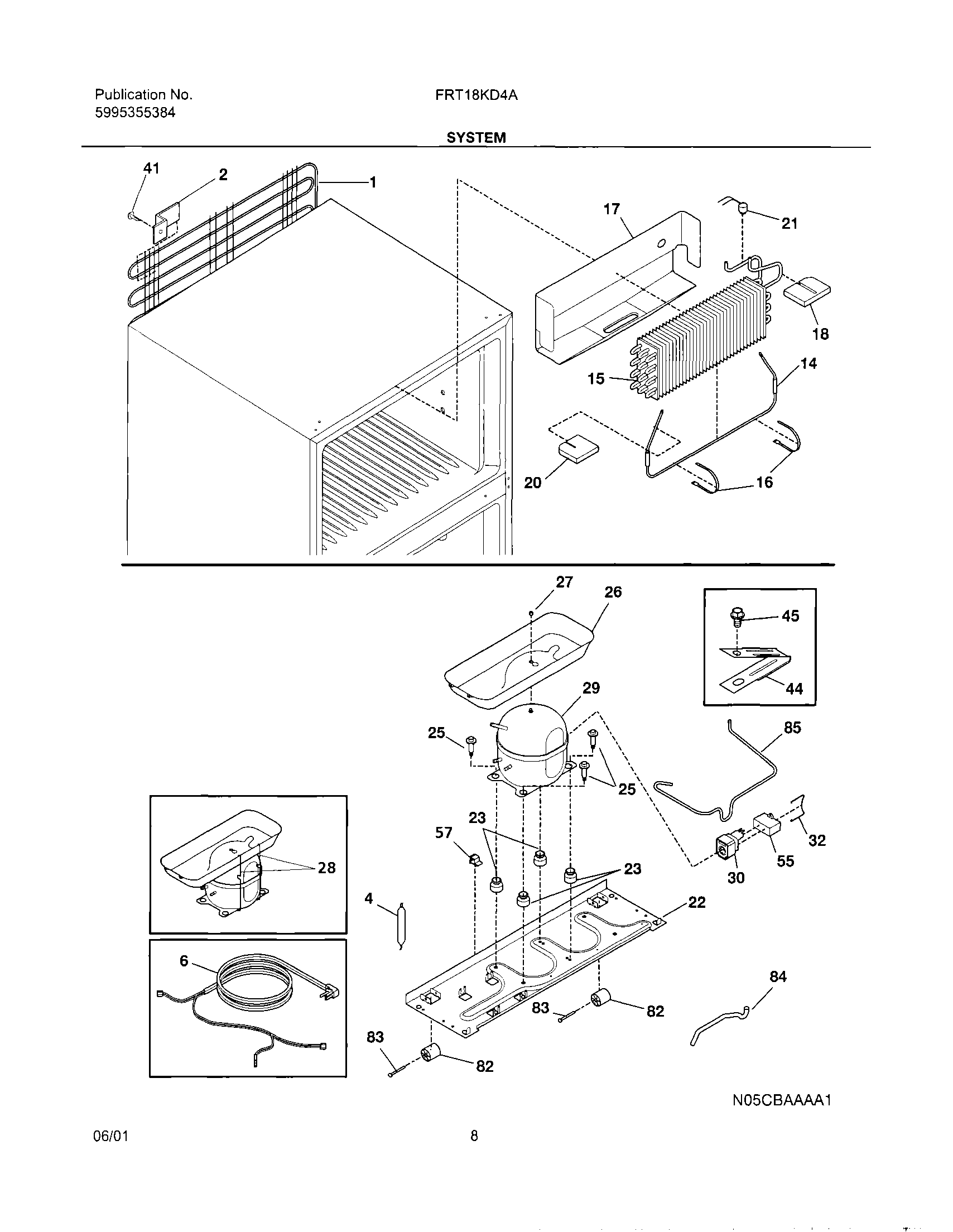

FRT18KD4AW0 09 – SYSTEM

Products

Position	Product
NI	218252201 Frigidaire Refrigerator Screw
NI	5303918263 Frigidaire Refrigerator Primary Heat Exchanger Kit (O/S1)
NI	WCI 5303918234
NI	WCI 240385401
NI	SPACER-COND TUBE,BLACK
NI	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
NI	240405201 Frigidaire Refrigerator Grommet
NI	240396801 Frigidaire Refrigerator Tube Clamp
NI	240388701 Frigidaire Refrigerator Wiring Harness
1	WCI 240406401
2	BRACKET, MOUNTIN, CONDENSER, (4)
4	5303305677 Frigidaire Replacement Filter Dryer Filters
6	WCI 240375401
14	5303918208 Frigidaire Defrost Heater Kit
15	5303918274 Frigidaire Refrigerator P1-Evaporator Kit Os1
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	241801301 Frigidaire Refrigerator Drain Trough
18	Insulation Block,RH
20	WCI 240362401
21	5303918202 Frigidaire Refrigerator Defrost Thermostat
22	WCI 240330001
23	216498900 Frigidaire Refrigerator Grommet
25	WCI 240420301
26	WCI 240346901
27	Nut,lock `1/4-20 ,drain pan mtg
28	PAN RETAINER KIT, SERVICE
29	5304511983 Frigidaire Refrigerator Compressor Assembly Kit
30	WCI 218721113
32	218740800 Frigidaire Refrigerator Clamp
41	5308000039 Frigidaire Refrigerator Screw
44	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
45	5304455650 Frigidaire Refrigerator Screw
55	5304464438 Frigidaire Compressor Run Capacitor
57	240542601 Frigidaire Clip-WIRING Harness
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
84	WCI 240367101
85	WCI 240346202
