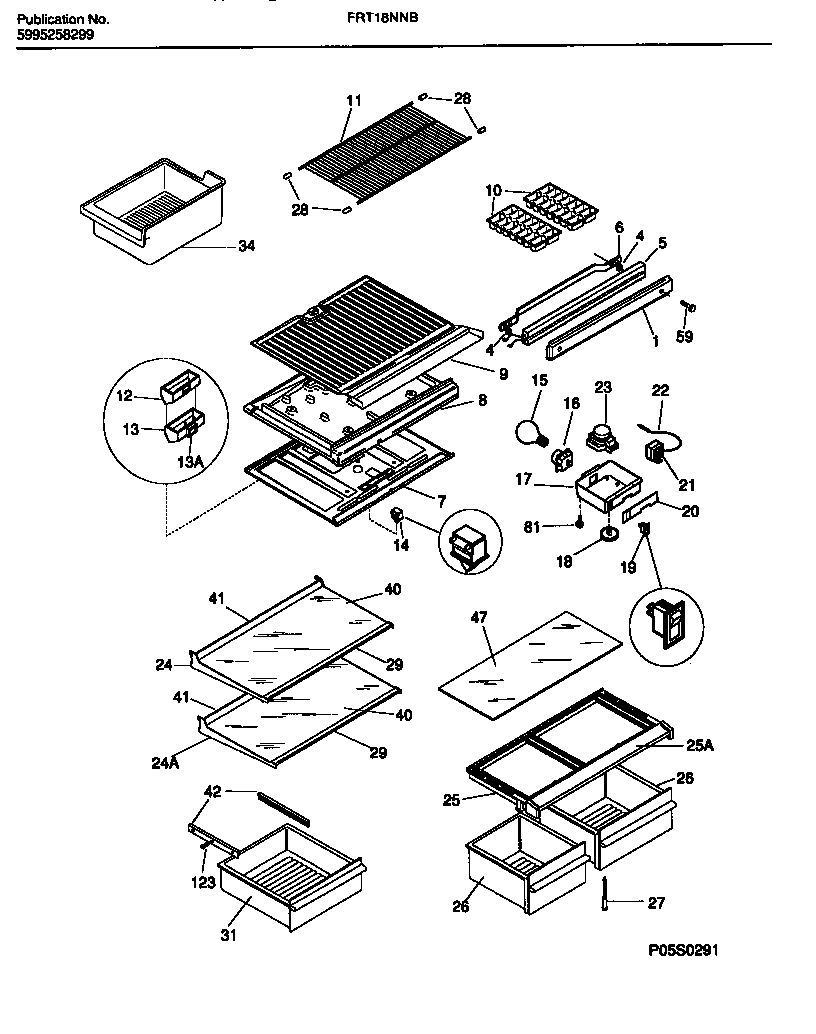

FRT18NNBD0 04 – SHELVES, CONTROLS, DIVIDER, MULLION

FRT18NNBD0 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Written by

in

FRT18NNBD0 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Products

PositionProduct
1WCI 5303200370
4WCI 218188100
5WCI 5303210351
6WCI 5308010008
7BWCI 5303001380
7ABUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
7TOP PANEL-REFR, W/SNAP BUSHING
8DIVIDER, STYROFOAM
8AHARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
9WCI 5303211427
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303283031
12DEFLECTRO, AIR, W/SEAL
12A5303001449 Frigidaire Refrigerator Seal
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16SOCKET-LIGHT/LAMP
17ANUT, ANCHOR (NI)
17WCI 5303015152
18WCI 5303300067
19SWITCH-ENERGY SAVER, SLIDE TYPE
20WCI 215611400
21AWCI 5303001260
21WCI 5303200810
22TUBE
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23A5304455649 Frigidaire Refrigerator Screw
24WCI 215919107
24AWCI 215919109
25AWCI 5303280075
25COVER – CRISPER
26AWCI 5303295931
26WCI 5303295929
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
29WCI 215919404
31WCI 5303295941
345303212918 Frigidaire Refrigerator Cont
40WCI 215723545
41WCI 215919804
42HANGER-PAN/BASKET, LH
42AHANGER-PAN/BASKET, RH
47WCI 5303209283
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
123215005101 Frigidaire Refrigerator Screw
