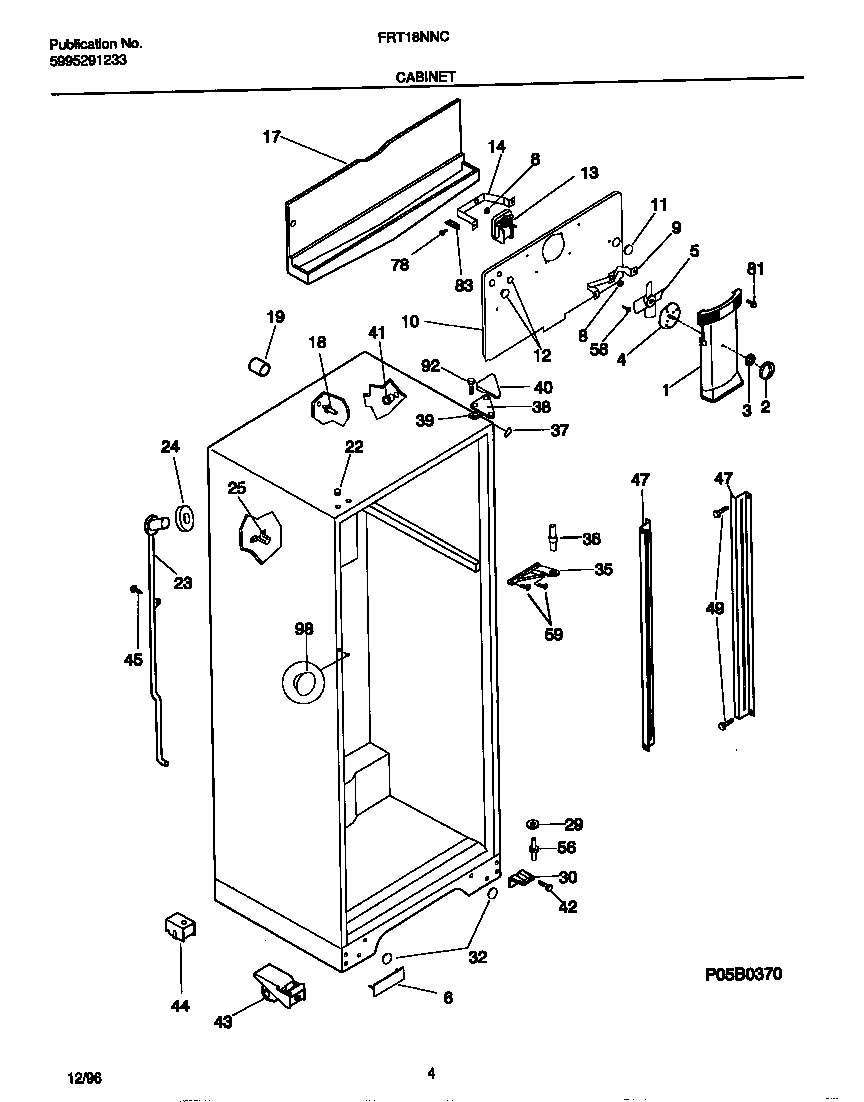

FRT18NNCD3 03 – CABINET

FRT18NNCD3 03 – CABINET

Written by

in

FRT18NNCD3 03 – CABINET

Products

PositionProduct
*31162TOUCH, UP PAINT, ALMOND (NI)
*311615304500008 Frigidaire Oven Screw
1WCI 218672501
2WCI 5303307351
3Nut,push-on
4WCI 218722200
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6WCI 218448302
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10WCI 3206451
115303208309 Frigidaire Refrigerator Plug Hole
12BWCI 215079100
12AWCI 215079000
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
17WCI 218725700
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
22WCI 215774911
23WCI 5303269702
24WCI 5303207353
25WCI 215774100
29WASHER, .34 X .62 X .05, NYLON
30BTAPPING PLATE, LOWER HINGE, (2) (NI)
30AWCI 3206136
30CSHIM, LOWER HINGE (NI)
32PLUG-BUTTON, ALMOND, CABINET BASE
35WCI 218220102
36218251300 Frigidaire Refrigerator Center Hinge Pin
37WCI 5303321082
38WCI 3206100
39SHIM – UPPER HINGE
40WCI 3206105
41A5304509705 Frigidaire Refrigerator Grommet
41B5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
42241710601 Frigidaire Refrigerator Screw
43AWCI 218724000
43BWCI 218703002
43DWCI 5308009790
43EWCI 5308011326
43CBOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
44ROLLER ASSY, METAL HOUSING, REAR, (2)
455304455651 Frigidaire Refrigerator Screw
47WCI 218233300
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
60218362501 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
98PLUG-BUTTON, ALMOND, CTR HINGE HOLE
