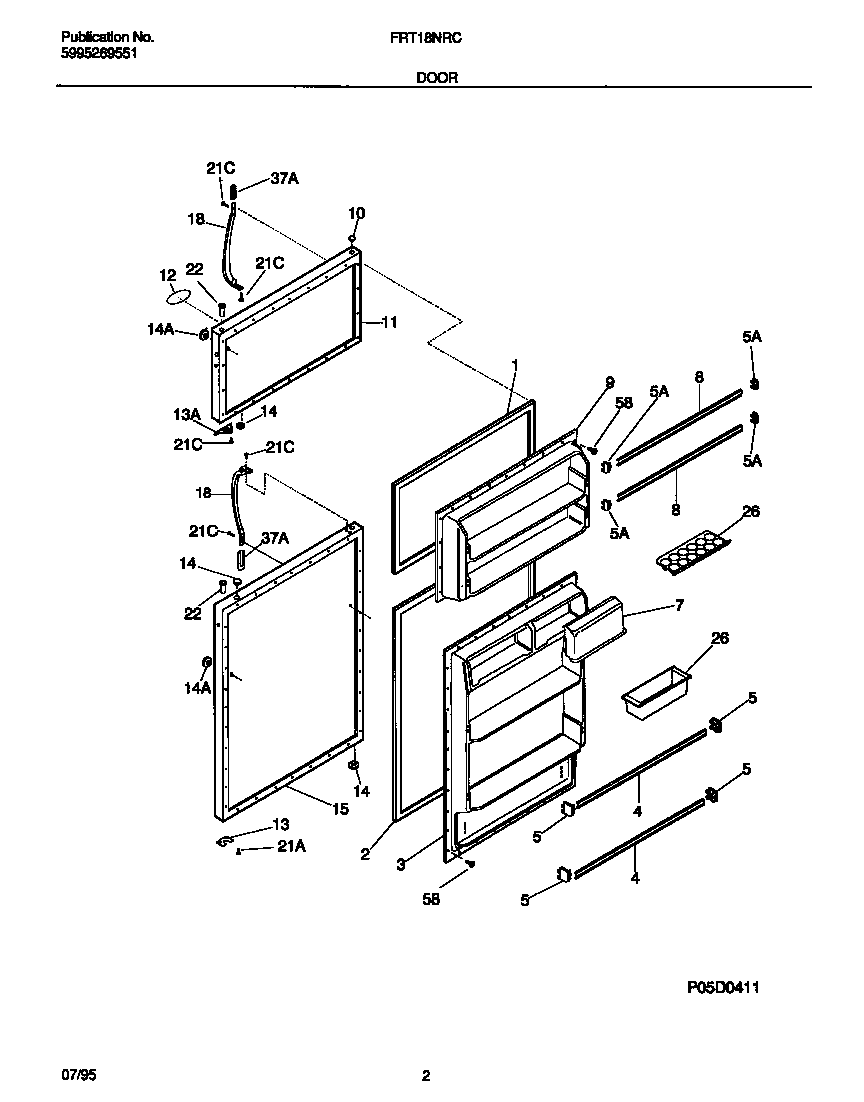

FRT18NRCD0 02 – DOOR

FRT18NRCD0 02 – DOOR

Written by

in

FRT18NRCD0 02 – DOOR

Products

PositionProduct
*28440INSULATION
1WCI 215608906
25303207345 Frigidaire Refrigerator Door Gasket
3WCI 218360001
5A218758602 Frigidaire Refrigerator Door Rack Support
5WCI 215251401
7WCI 218287904
8215516220 Frigidaire Refrigerator Door Rack
9WCI 218360101
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917574
12BMAGNET-NAMEPLATE (NOT ILLUSTRATED)
12WCI 218364002
12ALABEL-NAMEPLATE,ALMOND
13AWCI 218249002
13WCI 5308000255
14APLUG-BUTTON, ALMOND, REFR DOOR FRONT, UPPER
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 5303917576
18WCI 218363402
21C218252201 Frigidaire Refrigerator Screw
21ASCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
22BEARING-HINGE
26A215817806 Frigidaire Refrigerator Egg Tray
26WCI 3204522
37AWCI 215870608
585304455651 Frigidaire Refrigerator Screw
