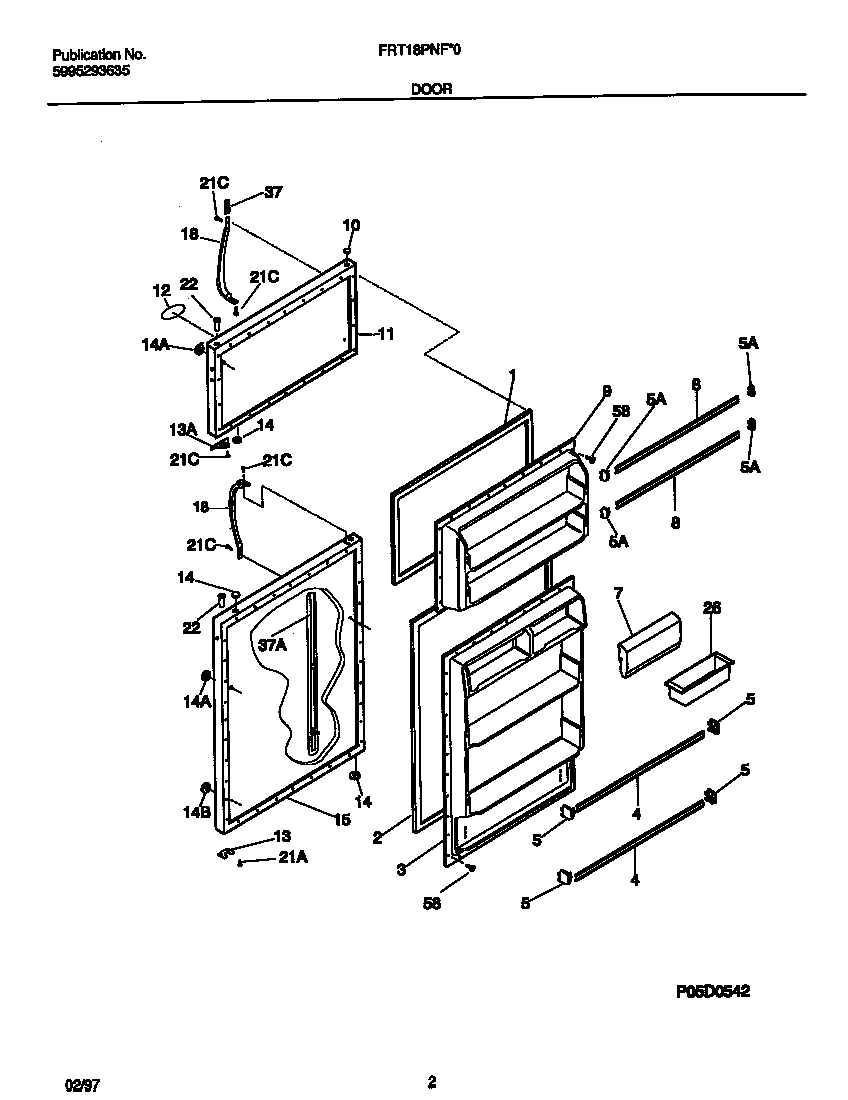

FRT18PNFD0 02 – DOOR

Products

PositionProduct
*24760INSULATION
1WCI 215608906
25303207345 Frigidaire Refrigerator Door Gasket
3WCI 218360001
5218758602 Frigidaire Refrigerator Door Rack Support
5WCI 218758701
7ADOOR-DAIRY,10.71“ WIDE ,CLEAR
7BWCI 5303001380
8215516220 Frigidaire Refrigerator Door Rack
9WCI 218360101
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917796
12WCI 218364002
12MAGNET-NAMEPLATE (NOT ILLUSTRATED)
12WCI 218425005
12LABEL-NAMEPLATE,ALMOND
13WCI 218249002
13WCI 5308000255
14WCI 218074002
14PLUG-BUTTON, ALMOND, REFR DOOR FRONT, UPPER
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 5303917798
18WCI 218668002
21B131420300 Frigidaire Screw
21A218252201 Frigidaire Refrigerator Screw
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
22BWCI 218519300
22ABEARING-HINGE
26WCI 3204522
37AWCI 215782300
37WCI 215870620
37WCI 215867071
37BWCI 215940700
415308000039 Frigidaire Refrigerator Screw
58216858001 Frigidaire Refrigerator Screw
