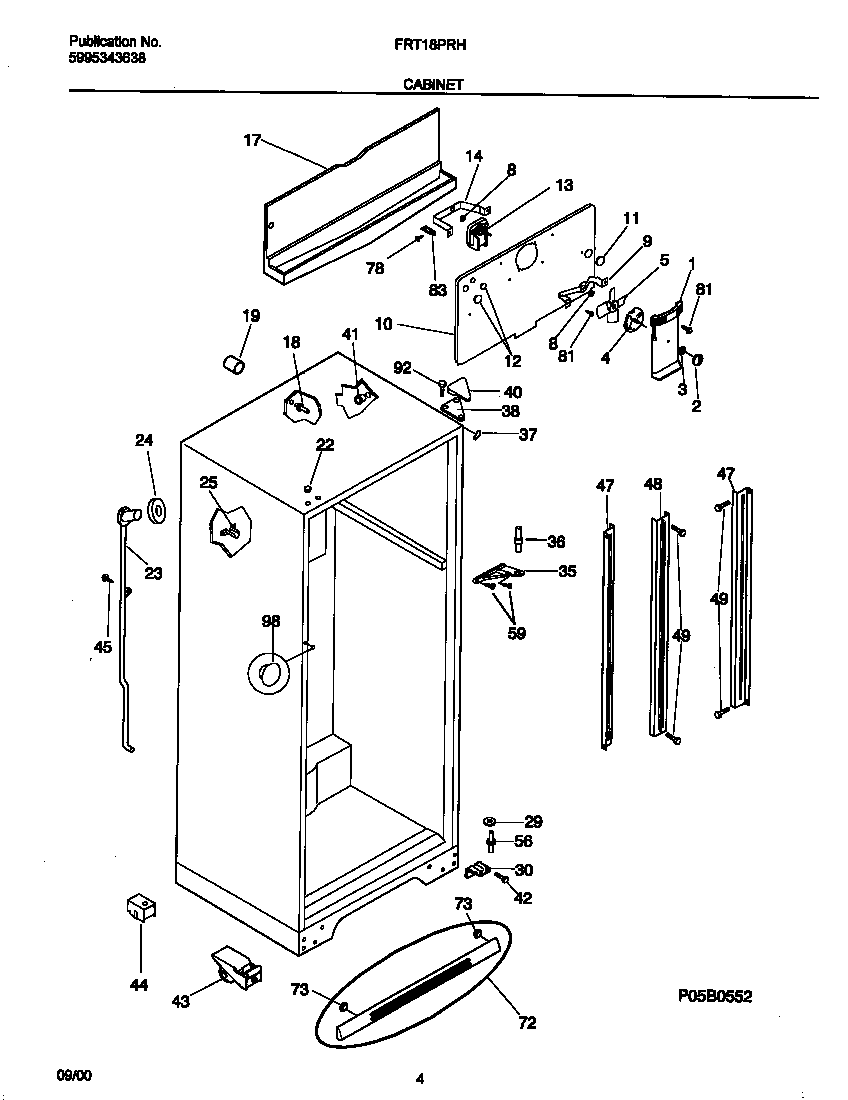

FRT18PRHD1 03 – CABINET

FRT18PRHD1 03 – CABINET

Written by

in

FRT18PRHD1 03 – CABINET

Products

PositionProduct
*57924SHIM, LOWER HINGE (NI)
*57928WCI 5308009790
*57929WCI 5308011326
*57927BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
*57933PLUG, BUTTON, CABINET LINER (NI)
*57921NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*57922WCI 5308000186
*57923TAPPING PLATE, LOWER HINGE, (2) (NI)
*57931TOUCH, UP PAINT, ALMOND (NI)
*57926WCI 218703002
*579255304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*57930218843801 Frigidaire Refrigerator Screw
1WCI 218672501
2WCI 5303307351
3Nut,push-on
4WCI 218722200
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10WCI 218985301
115303208309 Frigidaire Refrigerator Plug Hole
12BWCI 215079100
12AWCI 215079000
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
17WCI 218973201
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
22WCI 215774911
23WCI 5303269702
24WCI 5303207353
25WCI 215774100
29WASHER, .34 X .62 X .05, NYLON
30WCI 5304409595
35WCI 218998902
36218251300 Frigidaire Refrigerator Center Hinge Pin
37WCI 5303321082
38WCI 3206100
40WCI 3206105
415304509705 Frigidaire Refrigerator Grommet
42241710601 Frigidaire Refrigerator Screw
43WCI 218724000
44ROLLER ASSY, METAL HOUSING, REAR, (2)
455304455651 Frigidaire Refrigerator Screw
47WCI 218233300
48WCI 5303292395
49SCREW, HEX WASHER HEAD, 8-18AB X 1-1/2
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
72WCI 218915402
73WCI 218896804
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
98PLUG-BUTTON, ALMOND, CTR HINGE HOLE
