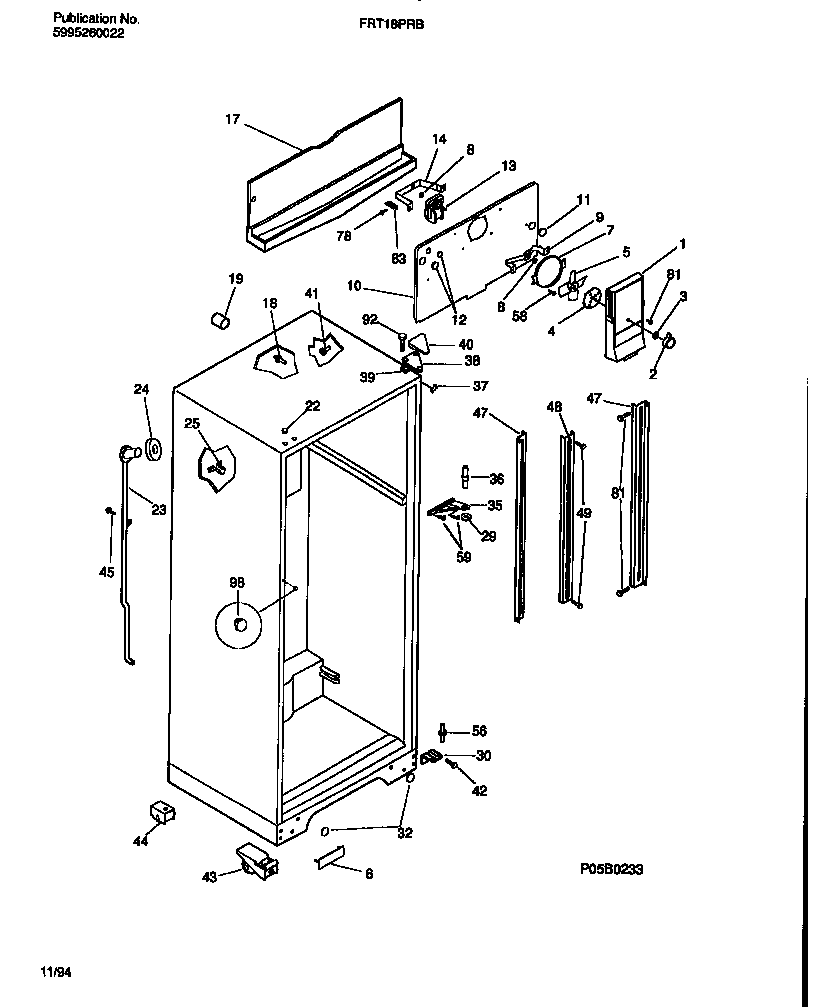

FRT18PZBD1 03 – CABINET W/FAN ASSEMBLY

FRT18PZBD1 03 – CABINET W/FAN ASSEMBLY

Written by

in

FRT18PZBD1 03 – CABINET W/FAN ASSEMBLY

Products

PositionProduct
*888845303321321 Frigidaire Refrigerator Black Touch-Up Paint
*88882TOUCH, UP PAINT, ALMOND (NI)
1WCI 5303301545
2WCI 5303296360
3Nut,push-on
4WCI 3206110
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6WCI 215846500
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10WCI 3206451
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 215079000
12AWCI 215079100
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
17TROUGH-DRAIN
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
22WCI 215774911
23WCI 5303269702
24WCI 5303207353
25WCI 215774100
29WCI 5308000186
30WCI 3206136
30ATAPPING PLATE, LOWER HINGE, (2) (NI)
30BSHIM, LOWER HINGE (NI)
32WCI 215217702
35WCI 218220102
36218251300 Frigidaire Refrigerator Center Hinge Pin
37TRIM-CABINET CORNER, ALMOND
38WCI 3206100
39SHIM – UPPER HINGE
40WCI 3206105
415304509705 Frigidaire Refrigerator Grommet
41A5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
42241710601 Frigidaire Refrigerator Screw
43DWCI 5308011326
43CWCI 5308009790
43BBOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
43WCI 5300188673
43AWCI 5308009760
44ROLLER ASSY, METAL HOUSING, REAR, (2)
455304455651 Frigidaire Refrigerator Screw
47WCI 3206202
48WCI 3916030
49SCREW, HEX WASHER HEAD, 8-18AB X 1-1/2
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
98PLUG-BUTTON, ALMOND, CTR HINGE HOLE
