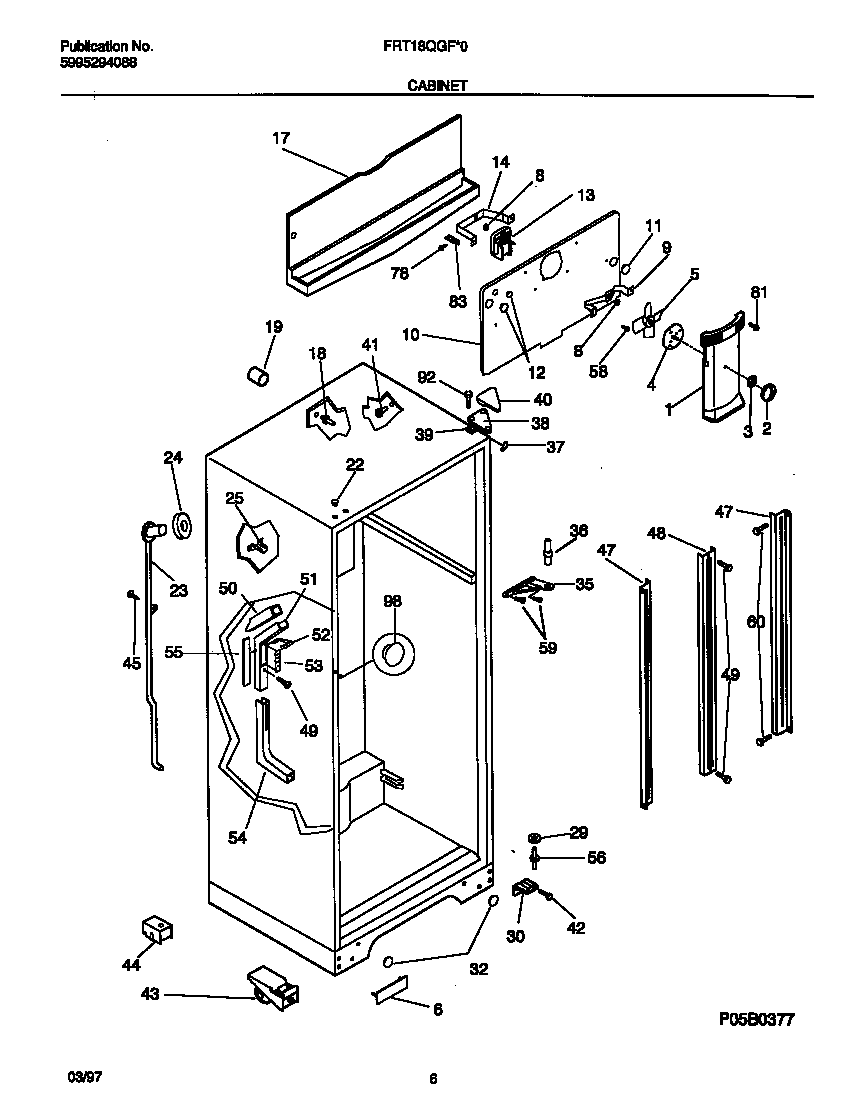

FRT18QGFD0 03 – CABINET

Products

PositionProduct
*35001PLUG, BUTTON, CABINET LINER (NI)
*35002TOUCH, UP PAINT, ALMOND (NI)
1WCI 218672501
2WCI 5303307351
3Nut,push-on
4WCI 218722200
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6WCI 218448302
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10AWCI 3206451
10BNUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
115303208309 Frigidaire Refrigerator Plug Hole
12AWCI 215079000
12BWCI 215079100
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
17WCI 218725700
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
22WCI 215774911
23WCI 5303269702
24WCI 5303207353
25WCI 215774100
29WASHER, .34 X .62 X .05, NYLON
30AWCI 3206136
30CSHIM, LOWER HINGE (NI)
30BTAPPING PLATE, LOWER HINGE, (2) (NI)
32PLUG-BUTTON, ALMOND, CABINET BASE
35WCI 218220102
36218251300 Frigidaire Refrigerator Center Hinge Pin
37TRIM-CABINET CORNER, ALMOND
38WCI 3206100
39SHIM – UPPER HINGE
40WCI 3206105
41B5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
41A5304509705 Frigidaire Refrigerator Grommet
42241710601 Frigidaire Refrigerator Screw
43EWCI 5308009790
43CWCI 5308009760
43FWCI 5308011326
43BWCI 218703002
43AWCI 218724000
43DBOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
44ROLLER ASSY, METAL HOUSING, REAR, (2)
455304455651 Frigidaire Refrigerator Screw
47WCI 218233300
48WCI 5303292395
49218362501 Frigidaire Refrigerator Screw
50INSULATION-AIR DUCT, UPPER
51WCI 3203820
52CONTROL-DAMPER, MEAT KPR DUCT
53WCI 215410000
54DUCT-MEAT KEEPER, LOWER
55INSULATION-AIR DUCT, LOWER
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
605304455852 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
98PLUG-BUTTON, ALMOND, CTR HINGE HOLE
