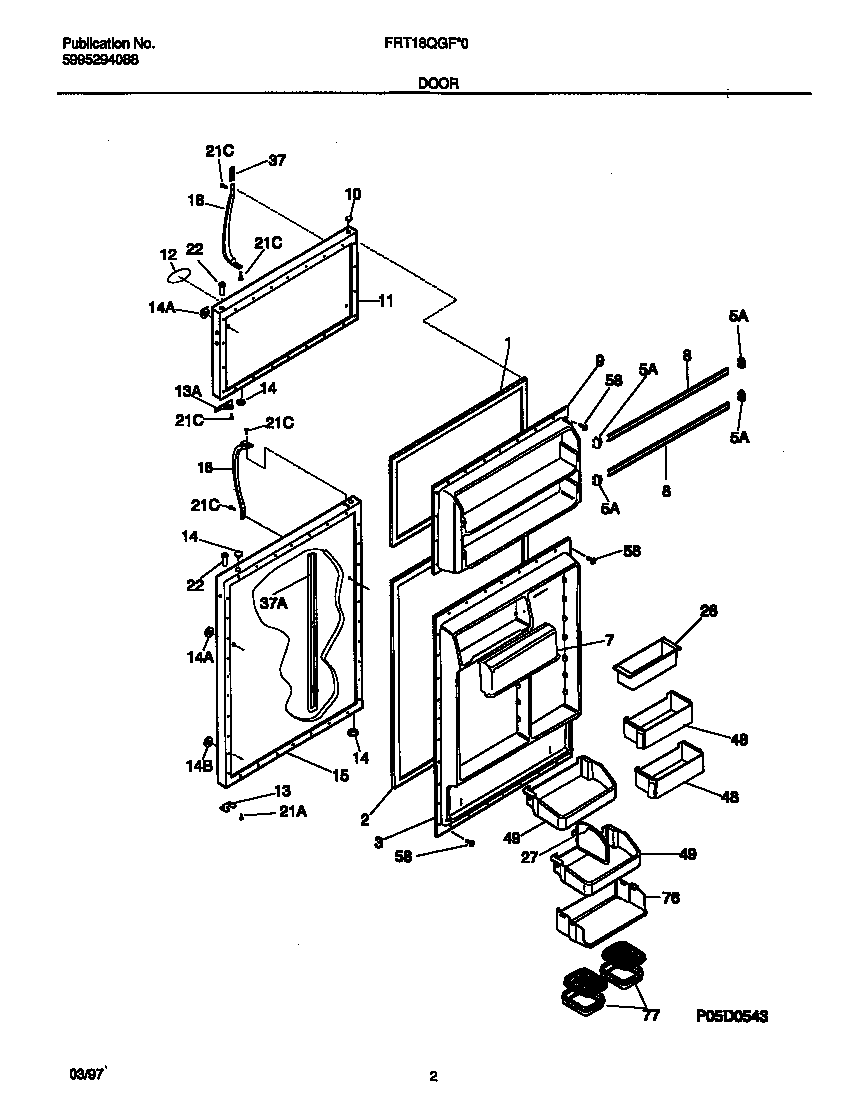

FRT18QGFW0 02 – DOOR

FRT18QGFW0 02 – DOOR

Written by

in

FRT18QGFW0 02 – DOOR

Products

PositionProduct
*35000INSULATION
1WCI 215608916
25303207345 Frigidaire Refrigerator Door Gasket
3WCI 218360701
5218758602 Frigidaire Refrigerator Door Rack Support
7AWCI 5303308347
7BWCI 5303001380
8WCI 218763627
9WCI 218360101
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917795
12WCI 218364001
12WCI 215008613
12MAGNET-NAMEPLATE (NOT ILLUSTRATED)
13WCI 218249001
13WCI 5308000255
14WCI 218074001
14240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917797
18218668001 Frigidaire Refrigerator P-1 Handle
21A218252201 Frigidaire Refrigerator Screw
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21B131420300 Frigidaire Screw
22ABEARING-HINGE
22BWCI 218519300
26WCI 3204522
27SNUGGER-DOOR BIN, “PADDLE TYPE“, GALLON DOOR BIN
37215870629 Frigidaire Refrigerator Handle Trim P-1
37WCI 215940700
37WCI 215867089
415308000039 Frigidaire Refrigerator Screw
48BIN-DOOR,2 LITER ,WITH TRIM
49215441502 Frigidaire Refrigerator Door Bin
58216858001 Frigidaire Refrigerator Screw
76WCI 218423900
77WCI 218423502
