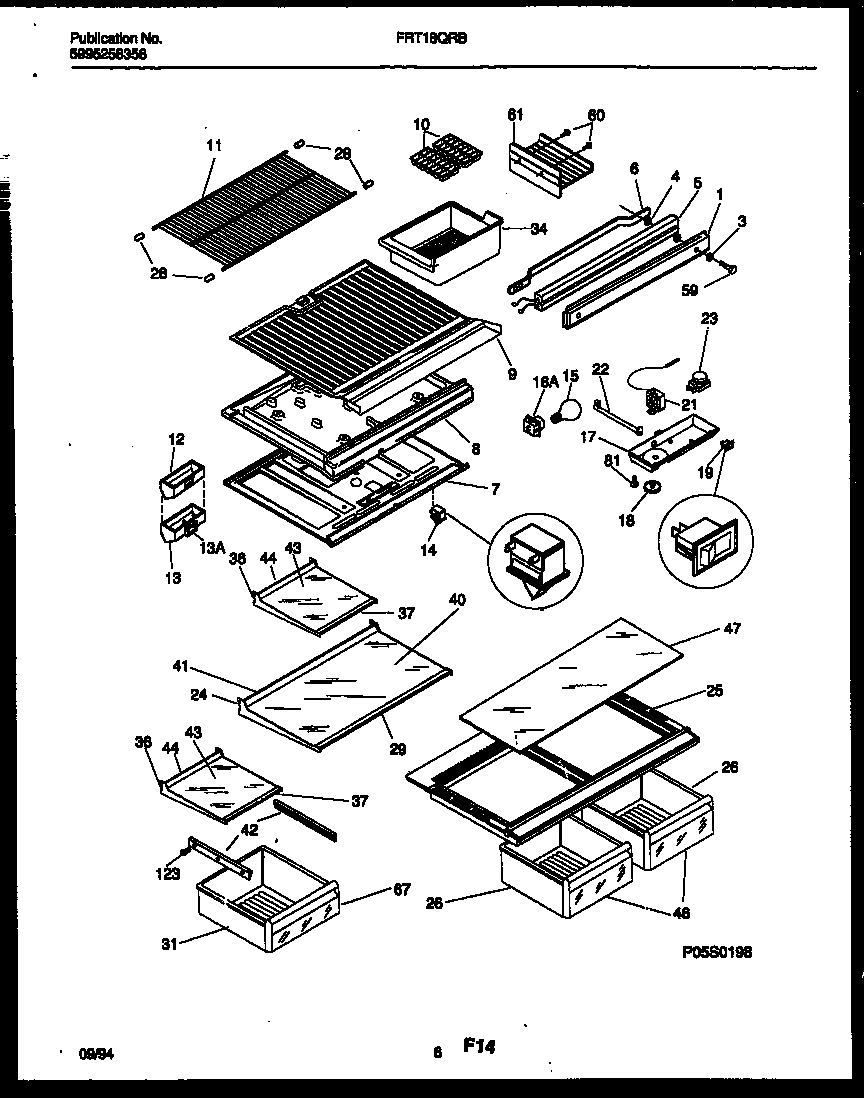

FRT18QRBD1 04 – SHELVES AND SUPPORTS

FRT18QRBD1 04 – SHELVES AND SUPPORTS

Written by

in

FRT18QRBD1 04 – SHELVES AND SUPPORTS

Products

PositionProduct
*10794CLIP-CANTILEVER SHLF
1WCI 3206450
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4WCI 215882100
5WCI 3206445
6WCI 215170802
7WCI 3206454
7AWCI 5303001380
8WCI 3206456
8AWCI 3018900
8B3205266 Frigidaire Refrigerator Edge Protector
9BOTTOM PANEL-FRZR
10215667501 Frigidaire Refrigerator Ice Tray Primary
11SHELF, FREEZER, FIXED/FLAT, FULL WIDTH, WIRE
12A5303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13WCI 5303001448
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17ANUT, ANCHOR (NI)
17WCI 5303299980
18WCI 5303299979
19SWITCH-ENERGY SAVER, ROCKER
21AWCI 5303001260
21WCI 5303018894
22WCI 3018891
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI 215919161
25WCI 215681400
25A5303307715 Frigidaire Refrigerator Humidity Control
25BWCI 5303299930
263206438 Frigidaire Refrigerator Crisper Pan
28END CAP-SHELF,PROTECTOR
29TRIM-GLASS SHELF, 24.92“, FRONT
31MEAT PAN
345303212918 Frigidaire Refrigerator Cont
36WCI 215919160
37WCI 215919409
40WCI 215723570
41WCI 215919803
42218971202 Frigidaire Refrigerator Hanger-Pan/Tray
42218971302 Frigidaire Refrigerator Rh Rail
43WCI 215723569
44TRIM-GLASS SHELF, 12.13“, REAR
46WCI 215357601
47INSERT-PAN COVER, GLASS
59WCI 5308012258
605304455852 Frigidaire Refrigerator Screw
61WCI 215781501
67WCI 215357801
815304455650 Frigidaire Refrigerator Screw
123WCI 08014528
