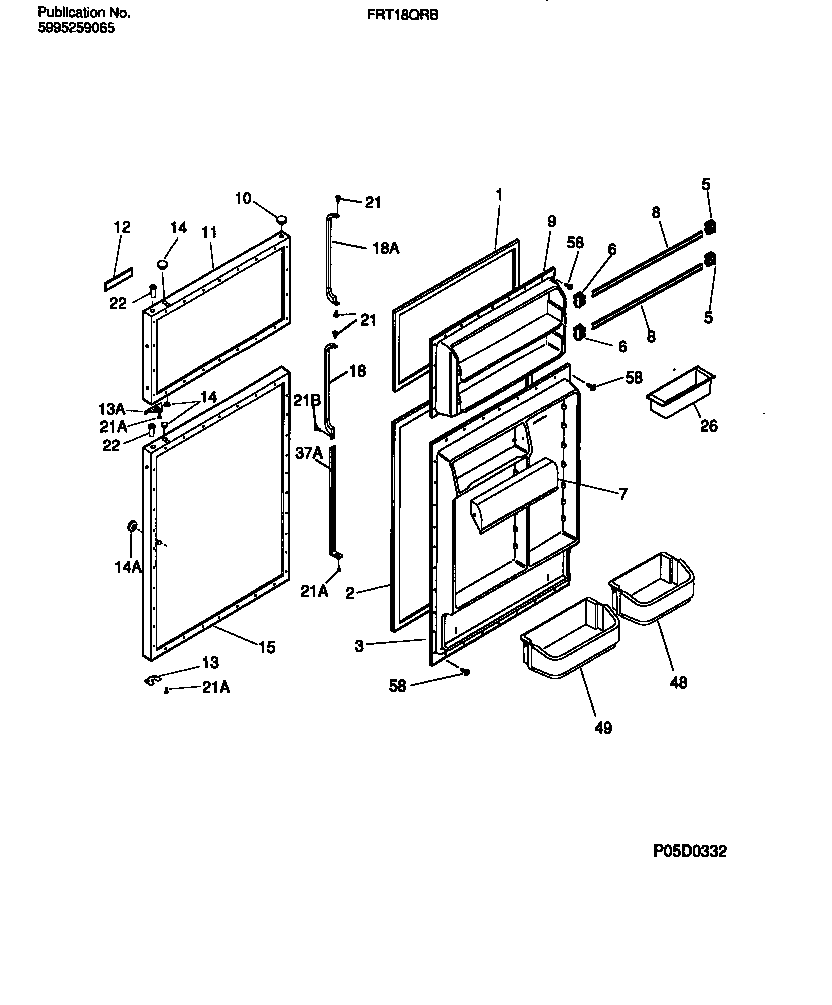

FRT18QRBD2 02 – DOOR SECTION

FRT18QRBD2 02 – DOOR SECTION

Written by

in

FRT18QRBD2 02 – DOOR SECTION

Products

PositionProduct
*11160INSULATION
1WCI 215608906
25303207345 Frigidaire Refrigerator Door Gasket
3WCI 215484101
5WCI 5303205649
6WCI 5303204840
7WCI 5303304560
8215516220 Frigidaire Refrigerator Door Rack
9WCI 5303207343
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917314
12WCI 215008602
13WCI 5308000255
13AWCI 218249002
14AWCI 215352211
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 5303917395
18WCI 215482121
18AWCI 215482110
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21B154518001 Frigidaire Refrigerator Screw
21A218252201 Frigidaire Refrigerator Screw
22BEARING-HINGE
22ABEARING-HINGE
26WCI 3204522
37AWCI 215482223
48WCI 215940002
49215441502 Frigidaire Refrigerator Door Bin
585304455651 Frigidaire Refrigerator Screw
