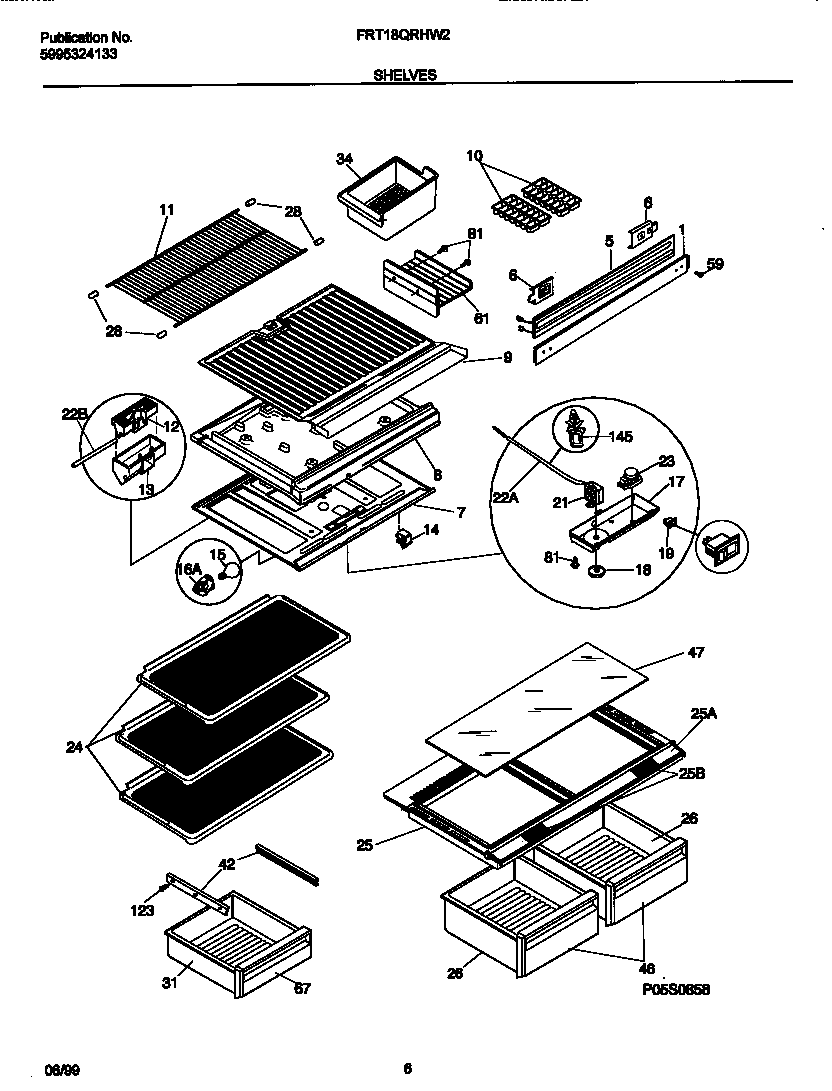

FRT18QRHW2 04 – SHELVES

FRT18QRHW2 04 – SHELVES

Written by

in

FRT18QRHW2 04 – SHELVES

Products

PositionProduct
*204545303001449 Frigidaire Refrigerator Seal
*20456WCI 5303001260
*204535303299664 Frigidaire Refrigerator Spacer-Shelf
*20455NUT, ANCHOR (NI)
*20451WCI 5303001380
*20452HARNESS-WIRING,CONTROL/DIVIDER
*204575304455649 Frigidaire Refrigerator Screw
*20459TAB-MEAT PAN HANGER, REAR (NOT ILLUSTRATED)
*20458TAB-MEAT PAN HANGER, FRONT (NOT ILLUSTRATED)
1WCI 218874301
5WCI 218781003
6WCI 218845602
7WCI 218814800
8WCI 218872903
9WCI 218814700
10215667501 Frigidaire Refrigerator Ice Tray Primary
11SHELF, FREEZER, FIXED/FLAT, FULL WIDTH, WIRE
12WCI 218730000
13WCI 218631001
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17WCI 5303321455
18WCI 5303311079
19SWITCH-ENERGY SAVER, ROCKER
21COLD CONTROL
22TUBE
22WCI 218731104
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI 215406127
25WCI 218905811
25WCI 215686501
255303307715 Frigidaire Refrigerator Humidity Control
263206438 Frigidaire Refrigerator Crisper Pan
28END CAP-SHELF,PROTECTOR
31MEAT PAN
345303212918 Frigidaire Refrigerator Cont
42218971202 Frigidaire Refrigerator Hanger-Pan/Tray
42218971302 Frigidaire Refrigerator Rh Rail
46WCI 5303307359
47WCI 218498174
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
61WCI 215781501
67WCI 5303307363
815304455650 Frigidaire Refrigerator Screw
123215005101 Frigidaire Refrigerator Screw
145WCI 218660800
